| Technical details | |
| Vendor | be quiet |
| Sustainability certificates | CCC, CE, ENERGY STAR, ErP, RoHS, WEEE |
| Warranty period | 10 year(s) |
| Packaging content | |

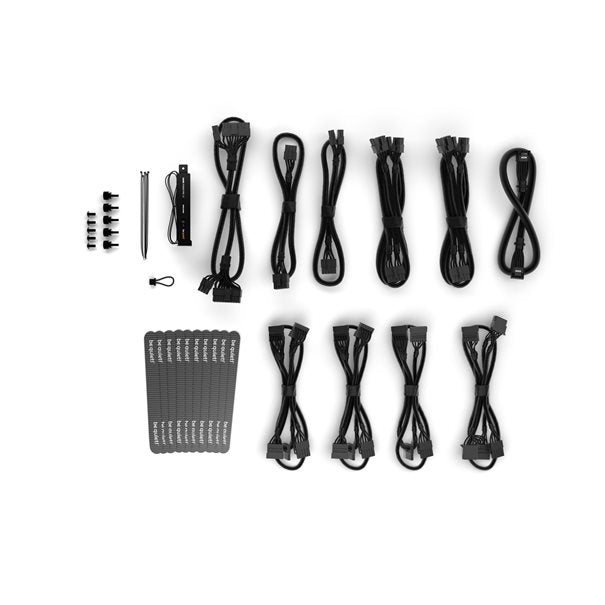

| Cables included | DC, SATA |
| Cable tie(s) included | Y |
| Ports & interfaces | |
| Motherboard power cable length | 600 mm |
| SATA power cable length | 1050 mm |
| Floppy disk drive connector | N |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 13 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| ATX power connector (20+4 pin) | Y |
| CPU power connector (4+4 pin) | Y |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Modular |
| Number of PATA power connectors | 3 |
| Weight & dimensions | |
| Height | 175 mm |
| Width | 150 mm |
| Depth | 86 mm |
| Weight | 2030 g |
| Design | |
| LED indicators | N |
| Product colour | Black |
| Illumination | N |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Fan diameter | 135 mm |
| Fan location | Top |
| Fan speed | 0 - 1800 RPM |
| Built-in display | N |
| Performance | |
| Silent mode | Y |
| ECC | Y |
| Noise level | 25.8 dB |
| Certification | BSMI, CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA, Triman |
| Purpose | PC |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
| ATX version | 3.0 |
| EPS version | 2.92 |
| 80 PLUS certification | 80 PLUS Titanium |
| Logistics data | |
| Shipping (inner) case width | 305 mm |
| Shipping (inner) case length | 504 mm |
| Shipping (inner) case height | 368 mm |
| Pallet gross weight (air) | 19270 g |
| Power | |
| Total power | 1000 W |
| Peak power | 1100 W |
| Maximum input current (@110V) | 6 A |
| Maximum input current (@220V) | 13 A |
| Input current | 13/6 A |
| Efficiency | 93.3 % |
| Hold time | 23.2 ms |
| Power protection features | Over current, Over voltage, Overheating, Short circuit, Under voltage |
| Power factor | 3 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 996 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Max output current (+12V4) | 40 A |
| Max output current (+12V3) | 40 A |
| Max output current (+12V2) | 32 A |
| Max output current (+12V1) | 32 A |
| Packaging data | |
| Package depth | 350 mm |
| Package height | 270 mm |
| Package width | 120 mm |
| Package type | Box |
| Package weight | 4480 g |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Y |
Pređite na informacije o proizvodu
Opis
| Technical details | |
| Vendor | be quiet |
| Sustainability certificates | CCC, CE, ENERGY STAR, ErP, RoHS, WEEE |
| Warranty period | 10 year(s) |
| Packaging content | |
| Cables included | DC, SATA |
| Cable tie(s) included | Y |
| Ports & interfaces | |
| Motherboard power cable length | 600 mm |
| SATA power cable length | 1050 mm |
| Floppy disk drive connector | N |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 13 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| ATX power connector (20+4 pin) | Y |
| CPU power connector (4+4 pin) | Y |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Modular |
| Number of PATA power connectors | 3 |
| Weight & dimensions | |
| Height | 175 mm |
| Width | 150 mm |
| Depth | 86 mm |
| Weight | 2030 g |
| Design | |
| LED indicators | N |
| Product colour | Black |
| Illumination | N |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Fan diameter | 135 mm |
| Fan location | Top |
| Fan speed | 0 - 1800 RPM |
| Built-in display | N |
| Performance | |
| Silent mode | Y |
| ECC | Y |
| Noise level | 25.8 dB |
| Certification | BSMI, CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA, Triman |
| Purpose | PC |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
| ATX version | 3.0 |
| EPS version | 2.92 |
| 80 PLUS certification | 80 PLUS Titanium |
| Logistics data | |
| Shipping (inner) case width | 305 mm |
| Shipping (inner) case length | 504 mm |
| Shipping (inner) case height | 368 mm |
| Pallet gross weight (air) | 19270 g |
| Power | |
| Total power | 1000 W |
| Peak power | 1100 W |
| Maximum input current (@110V) | 6 A |
| Maximum input current (@220V) | 13 A |
| Input current | 13/6 A |
| Efficiency | 93.3 % |
| Hold time | 23.2 ms |
| Power protection features | Over current, Over voltage, Overheating, Short circuit, Under voltage |
| Power factor | 3 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 996 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Max output current (+12V4) | 40 A |
| Max output current (+12V3) | 40 A |
| Max output current (+12V2) | 32 A |
| Max output current (+12V1) | 32 A |
| Packaging data | |
| Package depth | 350 mm |
| Package height | 270 mm |
| Package width | 120 mm |
| Package type | Box |
| Package weight | 4480 g |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Y |
Trenutno nema sadržaja u ovom odeljku.
Power Adapter ATX 3.0 be quiet! 1000W Dark Power 13
Regularna cena
36,500.00 RSD
