| Technical details | |
| Vendor | LC-Power |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, TUV |
| Warranty period | 3 year(s) |
| Packaging content | |
| Cables included | PATA, PCIe, SATA |
| Ports & interfaces | |
| Motherboard power cable length | 650 mm |
| SATA power cable length | 500.650.800.950 mm |
| Peripheral (Molex) power cable length | 500.800 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| Cabling type | Modular |
| Number of PATA power connectors | 5 |
| Weight & dimensions | |
| Height | 150 mm |
| Width | 86 mm |
| Depth | 180 mm |
| Weight | 3050 g |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On (off switch) | Yes |
| Cooling type | Active |
| Fan diameter | 135 mm |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power | |
| Total power | 1000 W |
| Efficiency | 92 % |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 110 - 240 V |
| Packaging data | |
| Package depth | 310 mm |
| Package height | 225 mm |
| Package width | 115 mm |
| Package type | Box |
| Package weight | 3390 g |
Pređite na informacije o proizvodu
Opis
| Technical details | |
| Vendor | LC-Power |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, TUV |
| Warranty period | 3 year(s) |
| Packaging content | |
| Cables included | PATA, PCIe, SATA |
| Ports & interfaces | |
| Motherboard power cable length | 650 mm |
| SATA power cable length | 500.650.800.950 mm |
| Peripheral (Molex) power cable length | 500.800 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| Cabling type | Modular |
| Number of PATA power connectors | 5 |
| Weight & dimensions | |
| Height | 150 mm |
| Width | 86 mm |
| Depth | 180 mm |
| Weight | 3050 g |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On (off switch) | Yes |
| Cooling type | Active |
| Fan diameter | 135 mm |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power | |
| Total power | 1000 W |
| Efficiency | 92 % |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 110 - 240 V |
| Packaging data | |
| Package depth | 310 mm |
| Package height | 225 mm |
| Package width | 115 mm |
| Package type | Box |
| Package weight | 3390 g |
Trenutno nema sadržaja u ovom odeljku.

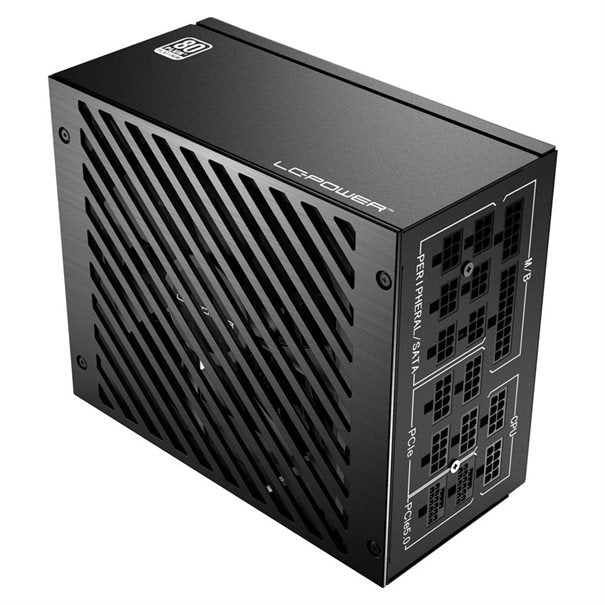

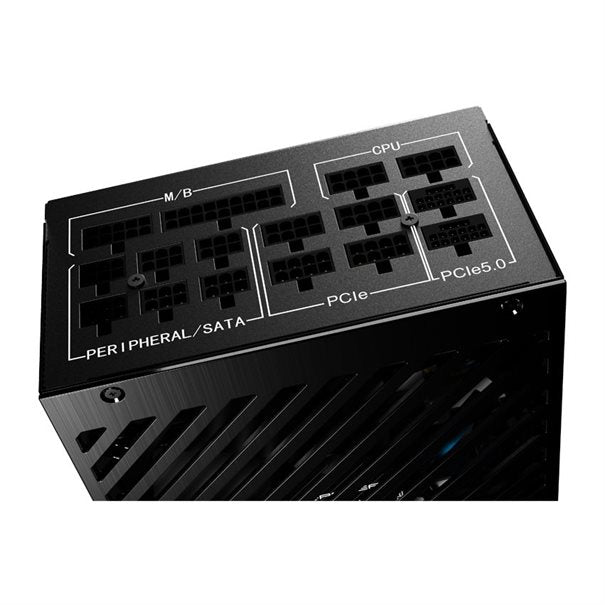

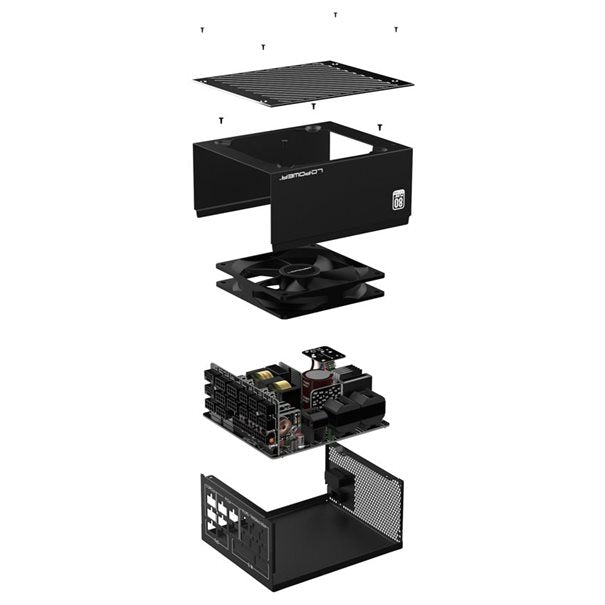

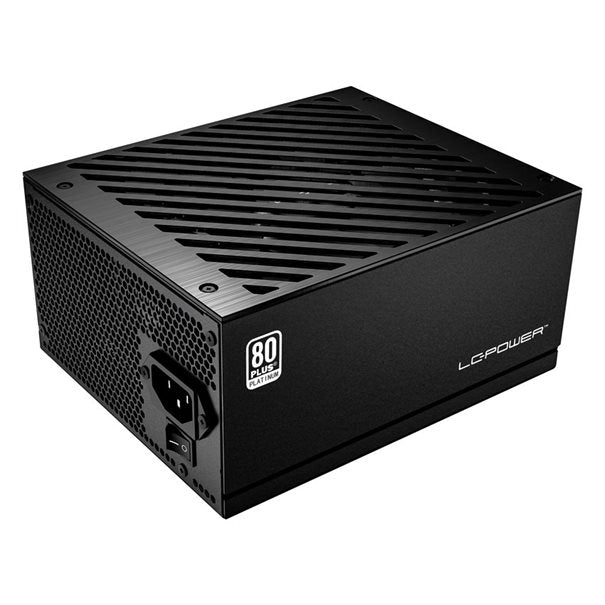

LC-Power ATX 3.0 1000W/135mm 80+ Platinum
Regularna cena
20,100.00 RSD
