Opis
Technical details
Vendor APC by Schneider Electric
Sustainability certificates RoHS
Ports & interfaces
Serial interface type RJ-45
Serial interface Y
USB port Y
SmartSlot Y
Power plug C20 coupler
AC outlet types C13 coupler, C19 coupler
Weight & dimensions
Height 85 mm
Width 432 mm
Depth 635 mm
Package depth 871 mm
Package height 246 mm
Package width 599 mm
Package weight 39290 g
Weight 31300 g
Battery
Battery recharge time 3 h
Typical backup time at half load 11.8 min
Typical backup time at full load 4 min
Battery life (max) 5 year(s)
Hot-swap battery Y
Battery technology Sealed Lead Acid (VRLA)
Cold start Y
Automatic battery test Y
Battery capacity 505 VAh
Other features
Output voltage 230 V
Design
Cable length 2.44 m
LED indicators Battery replacement
Product colour Black
Certification CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Rack capacity 2U
Form factor Rackmount
International Protection (IP) code IP20
Display type LCD
Features
Waveform Sine
Automatic Voltage Regulation (AVR) Y
Auto-restart Y
Audible alarm(s) Y
UPS topology Double-conversion (Online)
Emergency Power Off (EPO) Y
Output power capacity 3 kVA
Surge energy rating 340 J
Noise level 55 dB
Audible alarm modes Battery replacement
Input frequency 40 - 70 Hz
Efficiency 92 %
Output power 2700 W
Power protection features Overload
Output voltage Total Harmonic Distortion (THD) 2 %
Surge protection Y
Crest factor 3:1
Input operation voltage (max) 275 V
Input operation voltage (min) 100 V
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Output frequency 50/60 Hz
Logistics data
Products per pallet 6 pc(s)
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 0 - 95 %
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -15 - 45 °C
Packaging data
Quick installation guide Y

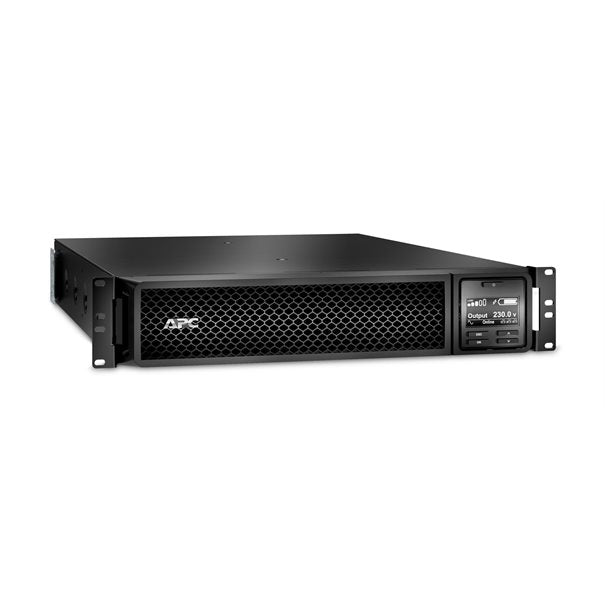

APC Smart-UPS SRT 3000 VA RM SRT3000RMXLI-NC

Regularna cena 536,500.00 RSD

Ostvarite popust od 3% kada plaćate gotovinom u našoj prodavnici.
Kontaktirajte Nas

Šifra proizvoda:

3910169
