| Product Information | |
| Product Collection | 5th Gen Intel® Xeon® Scalable Processors |
| Code Name | Products formerly Sapphire Rapids |
| Vertical Segment | Server |
| Processor Number | 4509Y |
| Lithography | Intel 7 |
| Recommended Customer Price | $563.00 |
| CPU Specifications | |
| Total Cores | 8 |
| Total Threads | 16 |
| Max Turbo Frequency | 4.1 GHz |
| Processor Base Frequency | 2.60 GHz |
| Cache | 22.5 MB |
| Intel® UPI Speed | 16 GT/s |
| Max # of UPI Links | 2 |
| TDP | 125 W |
| Intel® Speed Select Technology - Performance Profile (Intel® SST-PP) | |
| 4509Y (0) | 8 cores / 2.6 GHz / 125W |
| 4509Y (1) | 8 cores / 1.9 GHz / 105W |
| 4509Y (2) | 4 cores / 2.7 GHz / 105W |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q4'23 |
| Servicing Status | Baseline Servicing |
| Embedded Options Available | Yes |
| Use Conditions | Server/Enterprise |
| Memory Specifications | |
| Max Memory Size | 4 TB |
| Memory Types | DDR5 @ 4400 MT/s (1 DPC & 2DPC) |
| Max # of Memory Channels | 8 |
| ECC Memory Supported | Yes |
| Expansion Options | |
| Scalability | 2S |
| PCI Express Revision | 5 |
| Max # of PCI Express Lanes | 80 |
| Package Specifications | |
| Sockets Supported | FCLGA4677 |
| Package Carrier | E1B |
| DTS Max | 100 °C |
| TCASE | 84 |
| Advanced Technologies | |
| Intel® On Demand Activation Model | Yes |
| Intel® Data Streaming Accelerator (DSA) | 1 default devices |
| Intel® Advanced Matrix Extensions (AMX) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® 64 | Yes |
| Instruction Set Extensions | Intel® AMX, Intel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512 |
| # of AVX-512 FMA Units | 2 |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Trust Domain Extensions (Intel® TDX) | Yes |
| Intel® Crypto Acceleration | Yes |
| Intel® QuickAssist Software Acceleration | Yes |
| Intel® Platform Firmware Resilience Support | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® Total Memory Encryption - Multi Key | Yes |
| Intel® Total Memory Encryption | Yes |
| Intel® AES New Instructions | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes with Intel® SPS |
| Default Maximum Enclave Page Cache (EPC) Size | 64 GB |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
Pređite na informacije o proizvodu
Opis
| Product Information | |
| Product Collection | 5th Gen Intel® Xeon® Scalable Processors |
| Code Name | Products formerly Sapphire Rapids |
| Vertical Segment | Server |
| Processor Number | 4509Y |
| Lithography | Intel 7 |
| Recommended Customer Price | $563.00 |
| CPU Specifications | |
| Total Cores | 8 |
| Total Threads | 16 |
| Max Turbo Frequency | 4.1 GHz |
| Processor Base Frequency | 2.60 GHz |
| Cache | 22.5 MB |
| Intel® UPI Speed | 16 GT/s |
| Max # of UPI Links | 2 |
| TDP | 125 W |
| Intel® Speed Select Technology - Performance Profile (Intel® SST-PP) | |
| 4509Y (0) | 8 cores / 2.6 GHz / 125W |
| 4509Y (1) | 8 cores / 1.9 GHz / 105W |
| 4509Y (2) | 4 cores / 2.7 GHz / 105W |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q4'23 |
| Servicing Status | Baseline Servicing |
| Embedded Options Available | Yes |
| Use Conditions | Server/Enterprise |
| Memory Specifications | |
| Max Memory Size | 4 TB |
| Memory Types | DDR5 @ 4400 MT/s (1 DPC & 2DPC) |
| Max # of Memory Channels | 8 |
| ECC Memory Supported | Yes |
| Expansion Options | |
| Scalability | 2S |
| PCI Express Revision | 5 |
| Max # of PCI Express Lanes | 80 |
| Package Specifications | |
| Sockets Supported | FCLGA4677 |
| Package Carrier | E1B |
| DTS Max | 100 °C |
| TCASE | 84 |
| Advanced Technologies | |
| Intel® On Demand Activation Model | Yes |
| Intel® Data Streaming Accelerator (DSA) | 1 default devices |
| Intel® Advanced Matrix Extensions (AMX) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® 64 | Yes |
| Instruction Set Extensions | Intel® AMX, Intel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512 |
| # of AVX-512 FMA Units | 2 |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Trust Domain Extensions (Intel® TDX) | Yes |
| Intel® Crypto Acceleration | Yes |
| Intel® QuickAssist Software Acceleration | Yes |
| Intel® Platform Firmware Resilience Support | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® Total Memory Encryption - Multi Key | Yes |
| Intel® Total Memory Encryption | Yes |
| Intel® AES New Instructions | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes with Intel® SPS |
| Default Maximum Enclave Page Cache (EPC) Size | 64 GB |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
Trenutno nema sadržaja u ovom odeljku.

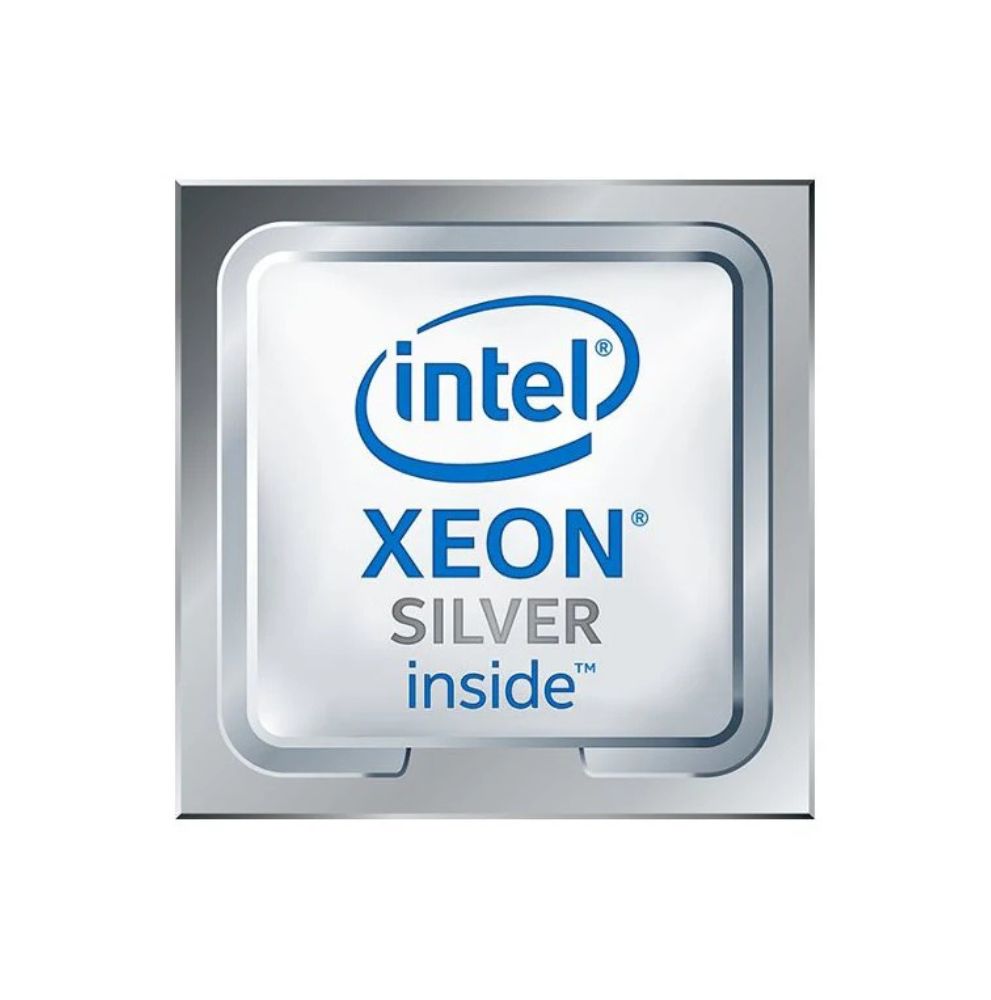

Intel XEON Silver 4509Y
Regularna cena
76,300.00 RSD
