| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Memory | |
| Memory slots type | DIMM |
| Maximum internal memory | 128 GB |
| Number of memory slots | 4 |
| Non-ECC | Y |
| Supported memory clock speed (max) | 7200 MHz |
| Supported memory clock speeds | 4800.5000.5200.5400.5600.5800.6000.6200.6400.6600.6800.7000.7200 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Y |
| Network | |
| Ethernet LAN | Y |
| Bluetooth | 5.2 Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet interface | 2.5 Gigabit Ethernet |
| Technical details | |
| Vendor | Asustek |
| Packaging content | |
| Cables included | SATA |
| Drivers included | Y |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS memory size | 192 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Y |
| Weight & dimensions | |
| Height | 40 mm |
| Width | 305 mm |
| Depth | 234 mm |
| Other features | |
| Weight | 1031 g |
| Graphics | |
| Parallel processing technology support | Not supported |
| Features | |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel Z790 |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Internal I/O | |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Y |
| USB 2.0 connectors | 2 |
| S (B 3.2 Gen 2 (3.1 Gen 2) connectors - B 2.0 connectors - PDIF out connector - S power connector (8-pin) - B 3.2 Gen 1 (3.1 Gen 1) connectors - mber of SATA III connectors) | 1 - 2 - Y - Y - 2 - 4 |
| CPU fan connector | Y |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Y |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Y |
| TPM connector | Y |
| RGB LED pin header | Y |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Rear panel I/O ports | |
| PS (2 ports quantity) | 1 |
| Line-in | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Y |
| WiFi-AP antenna jack | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2, SATA III |
| RAID support | Y |
| Packaging data | |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package width | 338 mm |
| Package weight | 1682 g |
Pređite na informacije o proizvodu
Opis
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Memory | |
| Memory slots type | DIMM |
| Maximum internal memory | 128 GB |
| Number of memory slots | 4 |
| Non-ECC | Y |
| Supported memory clock speed (max) | 7200 MHz |
| Supported memory clock speeds | 4800.5000.5200.5400.5600.5800.6000.6200.6400.6600.6800.7000.7200 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Y |
| Network | |
| Ethernet LAN | Y |
| Bluetooth | 5.2 Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet interface | 2.5 Gigabit Ethernet |
| Technical details | |
| Vendor | Asustek |
| Packaging content | |
| Cables included | SATA |
| Drivers included | Y |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS memory size | 192 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Y |
| Weight & dimensions | |
| Height | 40 mm |
| Width | 305 mm |
| Depth | 234 mm |
| Other features | |
| Weight | 1031 g |
| Graphics | |
| Parallel processing technology support | Not supported |
| Features | |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel Z790 |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Internal I/O | |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Y |
| USB 2.0 connectors | 2 |
| S (B 3.2 Gen 2 (3.1 Gen 2) connectors - B 2.0 connectors - PDIF out connector - S power connector (8-pin) - B 3.2 Gen 1 (3.1 Gen 1) connectors - mber of SATA III connectors) | 1 - 2 - Y - Y - 2 - 4 |
| CPU fan connector | Y |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Y |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Y |
| TPM connector | Y |
| RGB LED pin header | Y |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Rear panel I/O ports | |
| PS (2 ports quantity) | 1 |
| Line-in | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Y |
| WiFi-AP antenna jack | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2, SATA III |
| RAID support | Y |
| Packaging data | |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package width | 338 mm |
| Package weight | 1682 g |
Trenutno nema sadržaja u ovom odeljku.

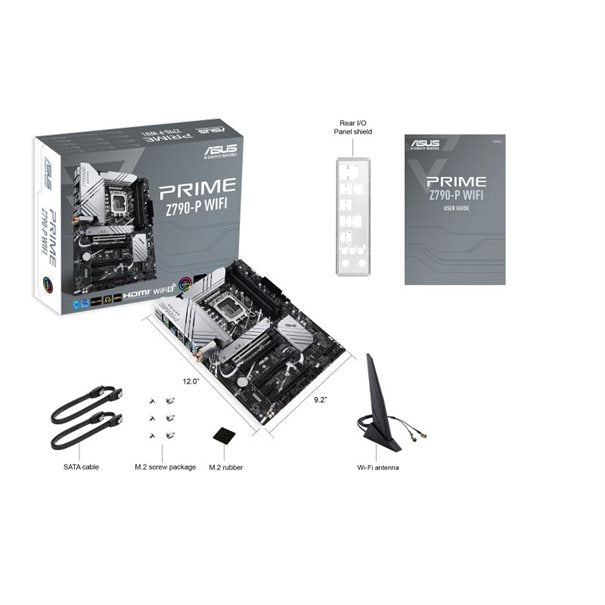

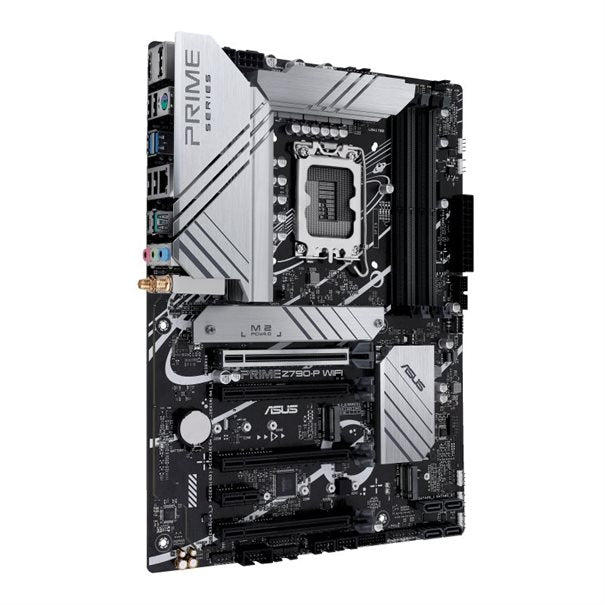

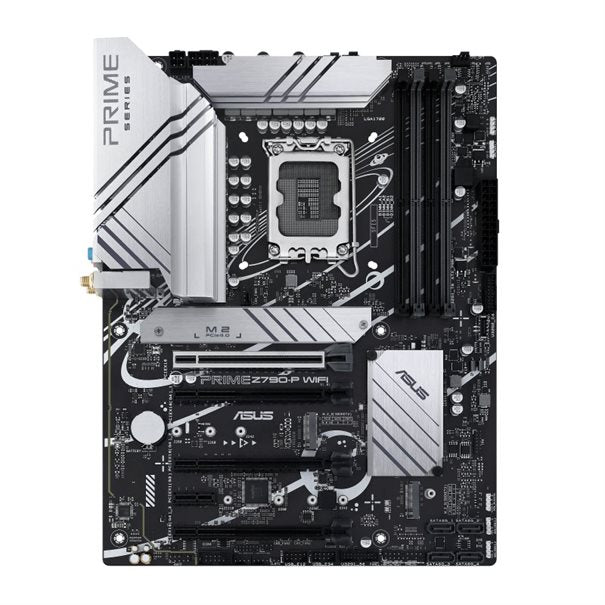

ASUS PRIME Z790-P WIFI S1700/DDR5/DP-HDMI/3xM.2/ATX
Regularna cena
31,400.00 RSD
