| Product | |
| Name | AMD Radeon™ RX 9060 XT |
| Architecture | AMD RDNA™ 4 |
| Game Index | 1440p |
| Engine Clocks | |
| Boost Clock | Up to 3290 MHz |
| Game Clock | Up to 2700 MHz |
| Notes | Boost Clock is the maximum GPU frequency for bursty workloads and varies with thermals/workload. Game Clock is the expected frequency in typical gaming at reference TGP; results vary by title. |
| Compute | |
| Stream Processors | 2048 |
| Compute Units | 32 (3rd Gen RT + 2nd Gen AI Accelerators) |
| Ray Accelerators | 32 |
| AI Accelerators | 64 |
| Infinity Cache | 32 MB |
| Memory | |
| Size / Type | 16 GB GDDR6 |
| Bus | 128-bit |
| Effective Clock | 20 Gbps |
| Display & Outputs | |
| Max Displays | 3 |
| Max Resolution | HDMI®: 7680×4320, DisplayPort™ 2.1a: 7680×4320 |
| Outputs | 2 × HDMI®, 1 × DisplayPort™ 2.1a |
| Interface & BIOS | |
| Bus Interface | PCI Express® 5.0 ×16 |
| BIOS Support | UEFI |
| Cooling & Form Factor | |
| Cooler | Dual-X Cooling, AeroCurve Fan Blades, Free Flow, Integrated Cooling Module |
| Heatsink | Optimized Composite Heatpipes, High TG Copper PCB |
| Bearing | Sleeve Bearing |
| Shroud / Backplate | Metal Backplate |
| Form Factor | ATX, 2.3-slot |
| Dimensions | 240 (L) × 124 (W) × 46.1 (H) mm |
| Power | |
| Board Power | 170 W (Typical) |
| Recommended PSU | Minimum 450 W |
| Power Connectors | 1 × 8-pin PCIe |
| SAPPHIRE Features | |
| Cooling & PCB | Honeywell PTM7950 TIM, Dual-X Cooling, AeroCurve blades, Free Flow, High TG copper PCB, Metal backplate, Optimized heatpipes, 9-Phase Digital Power Design |
| Software | TriXX Boost, TriXX software suite, Intelligent & Precision Fan Control |
| AMD Features | |
| Display & Media | DisplayPort™ 2.1a, AMD Radiance Display™ Engine, AV1 Encode/Decode |
| Software & Tech | AMD HYPR-RX with AFMF 2, FSR 4 with AI Upscaling, Fluid Motion Frames 2, Anti-Lag 2, Noise Suppression, Adrenalin Edition™ |
| APIs | DirectX® 12 Ultimate, Vulkan®, FidelityFX™ technologies |
| OS & System Requirements | |
| Operating Systems | Windows® 10/11 64-bit, Linux® |
| System Requirements | PCIe® x16 slot, 1 × 8-pin power, ≥8 GB RAM (16 GB recommended) |
Skip to product information
Description

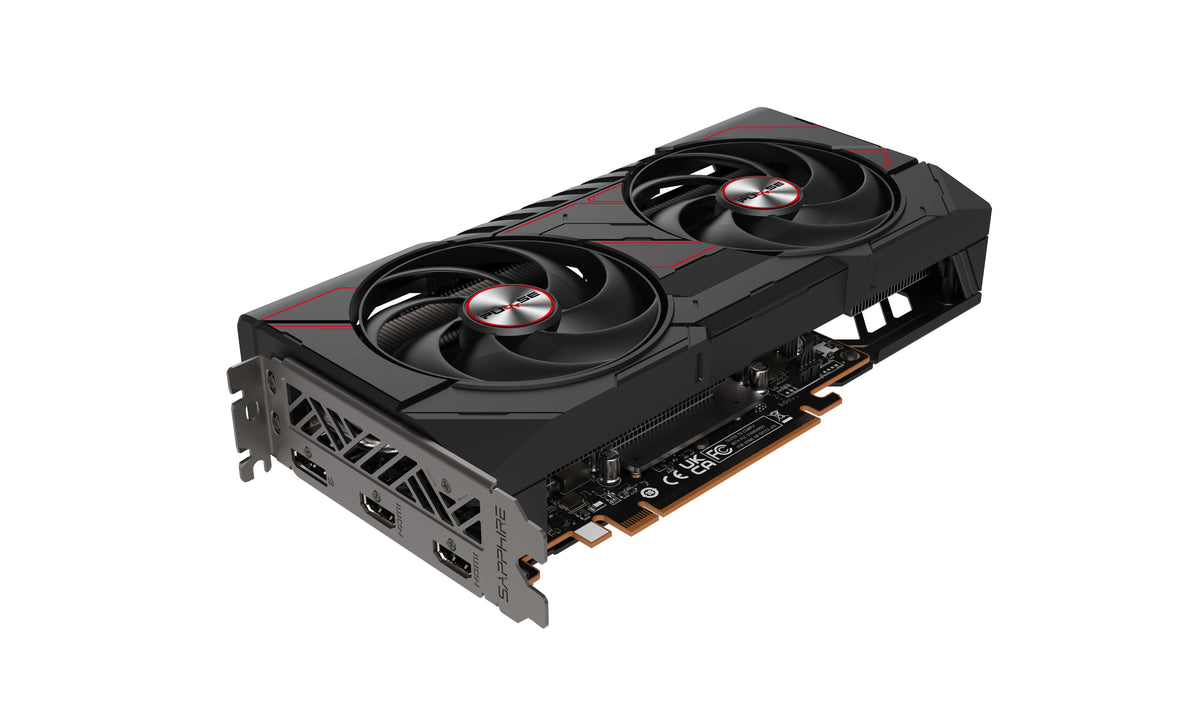

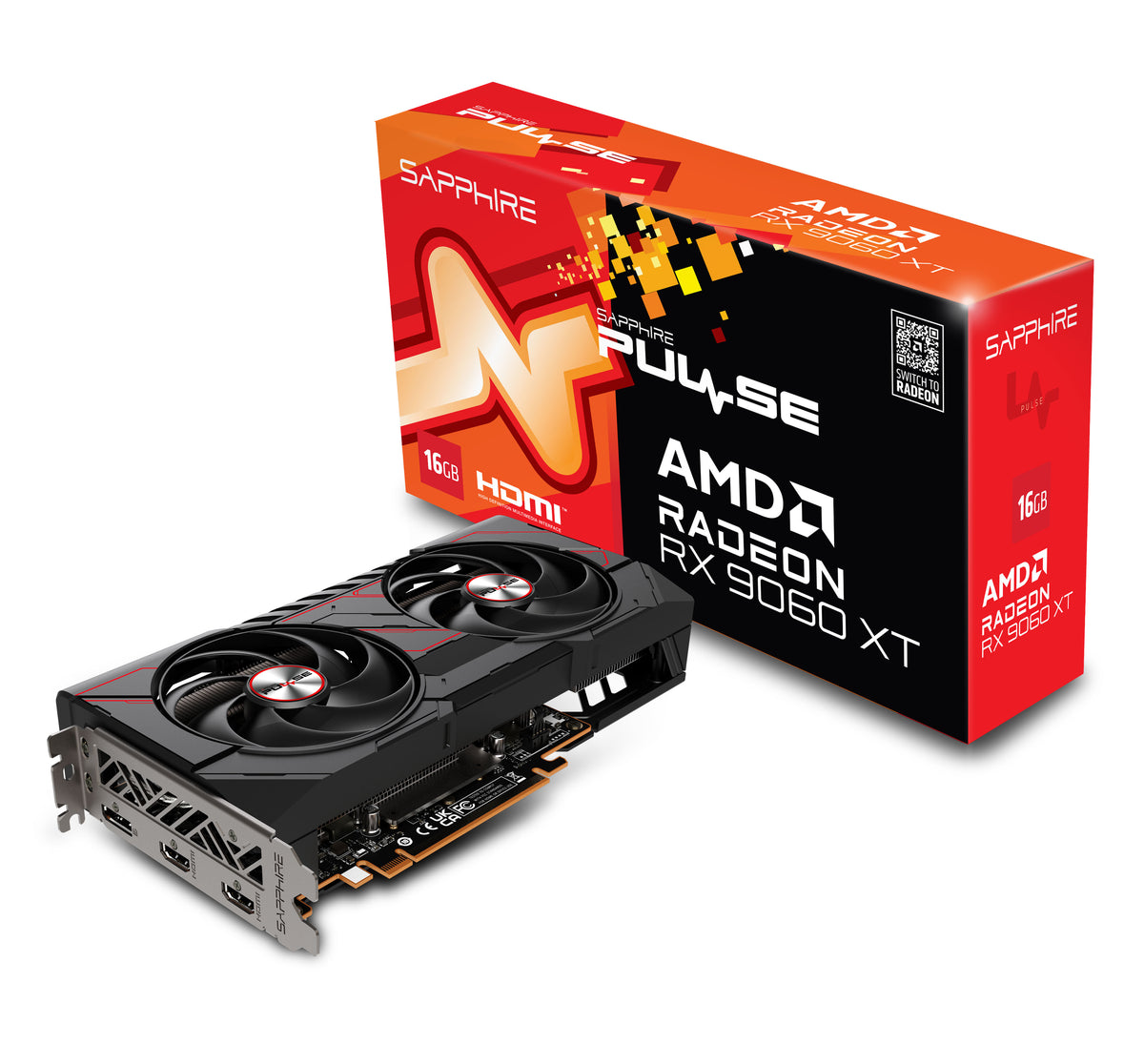

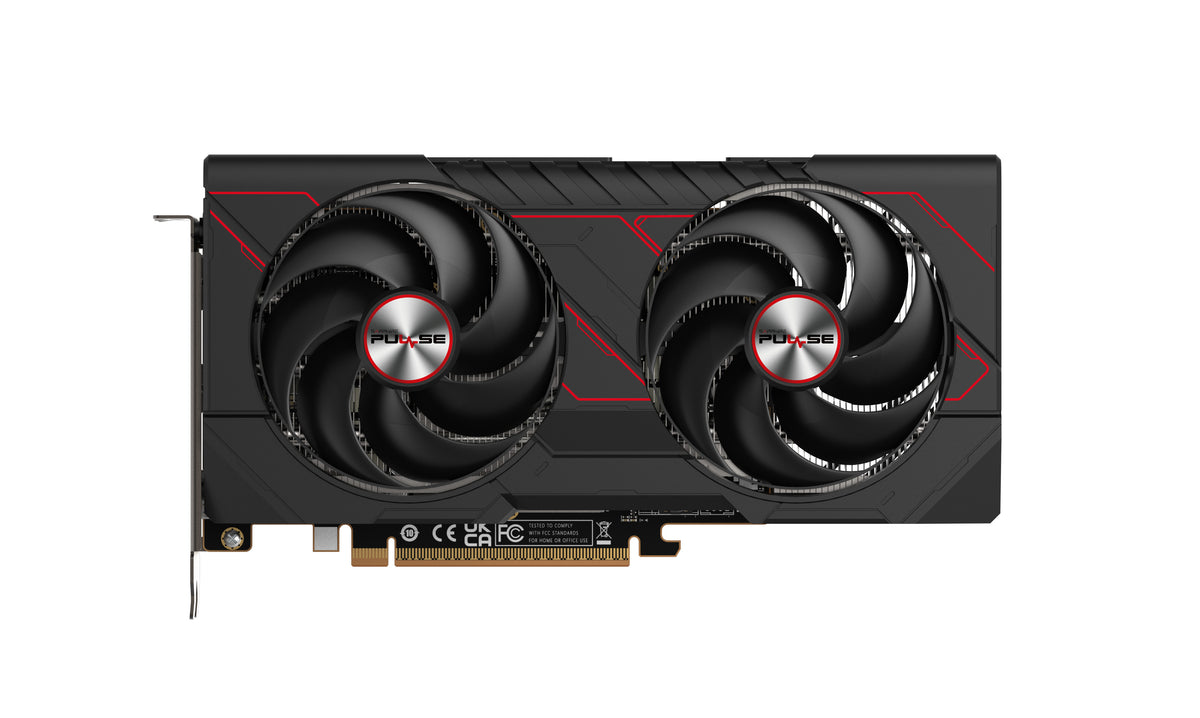

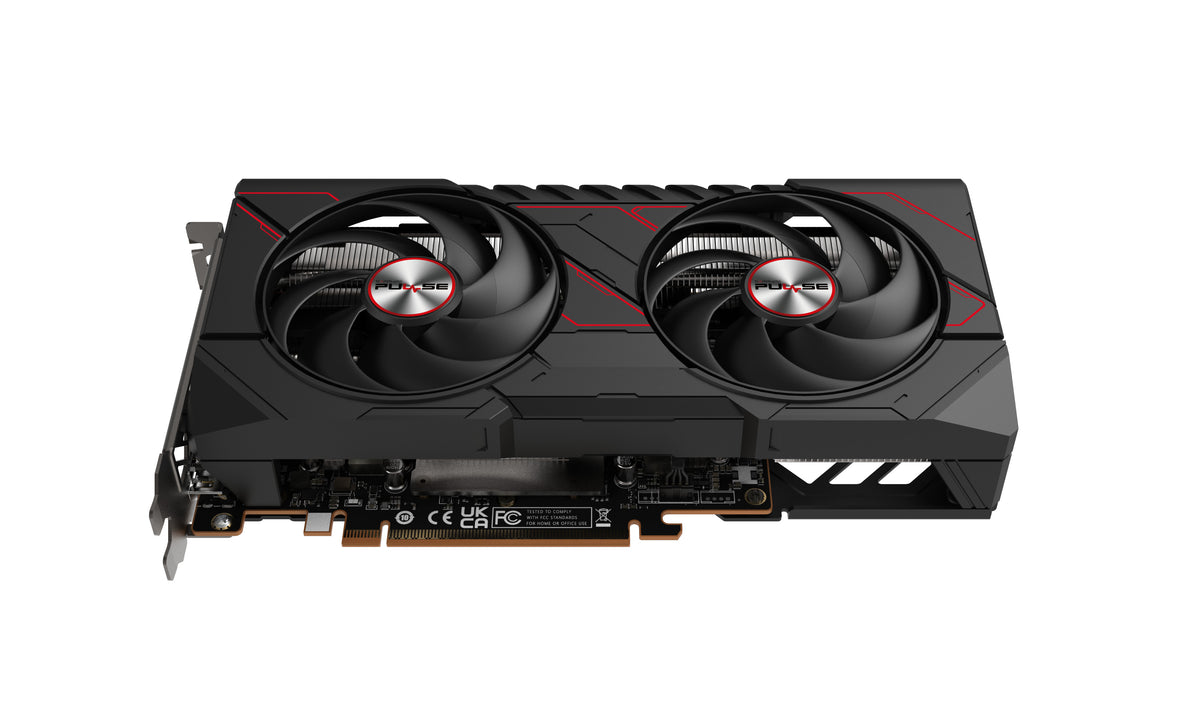

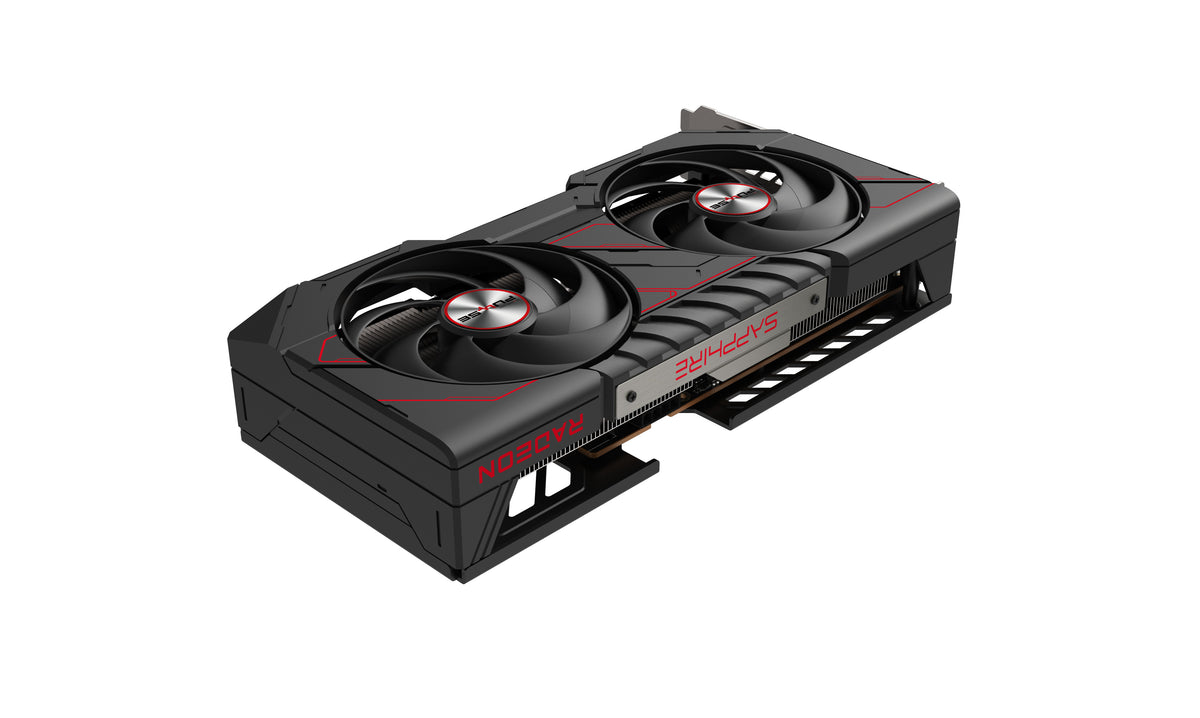

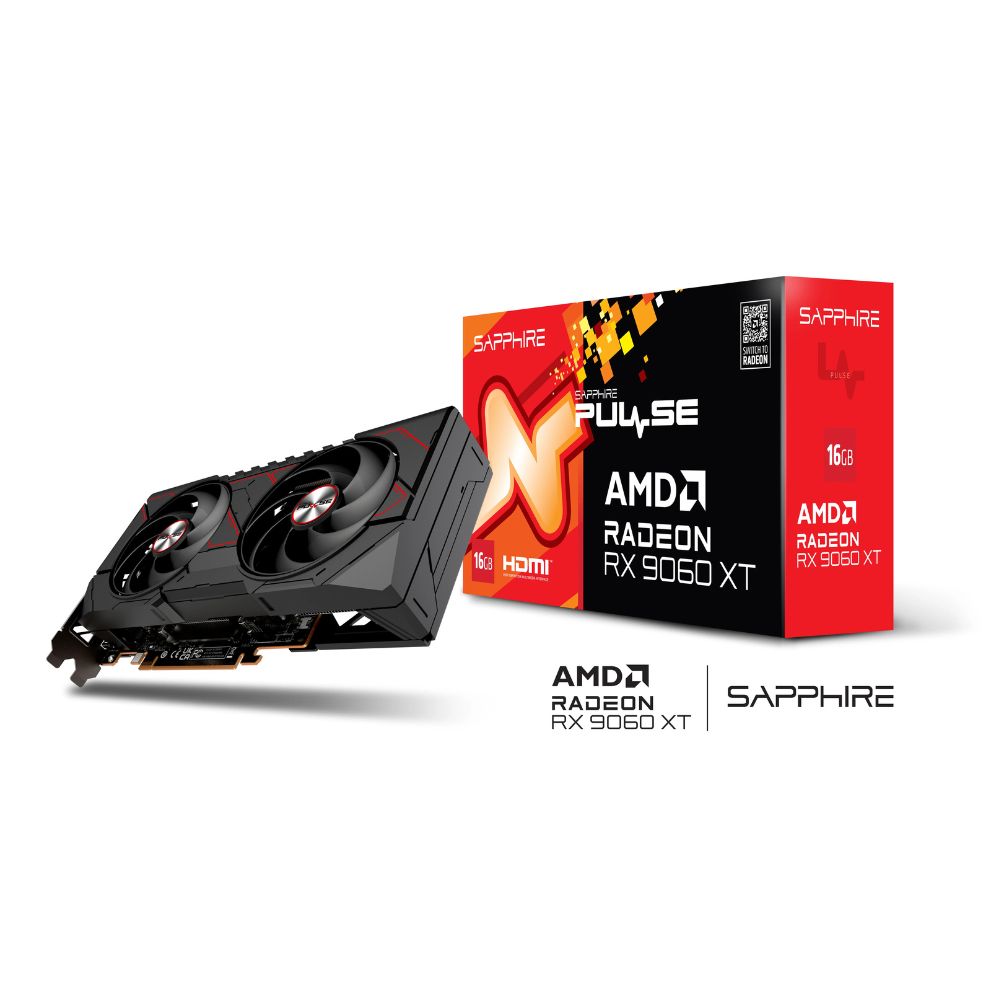

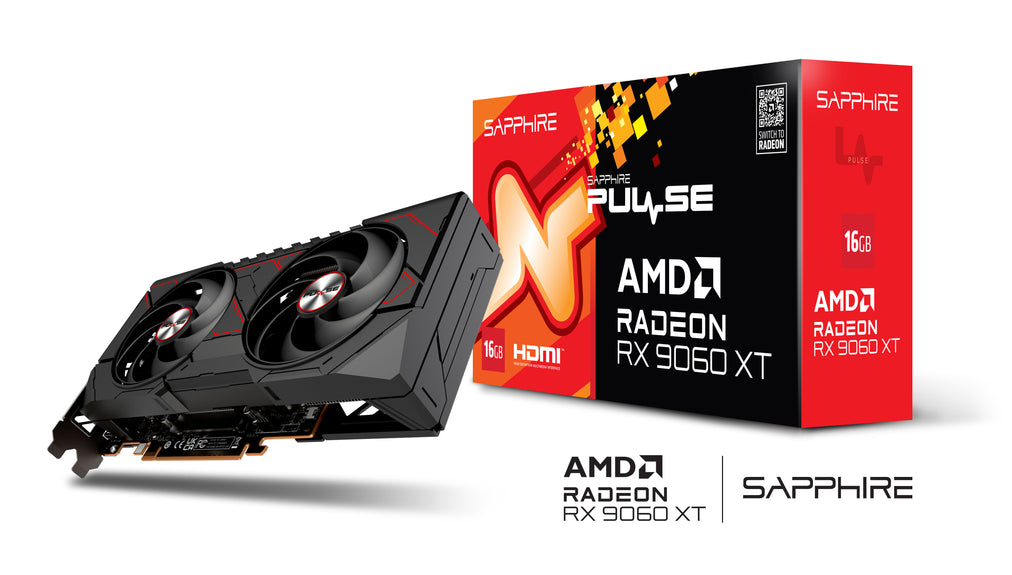

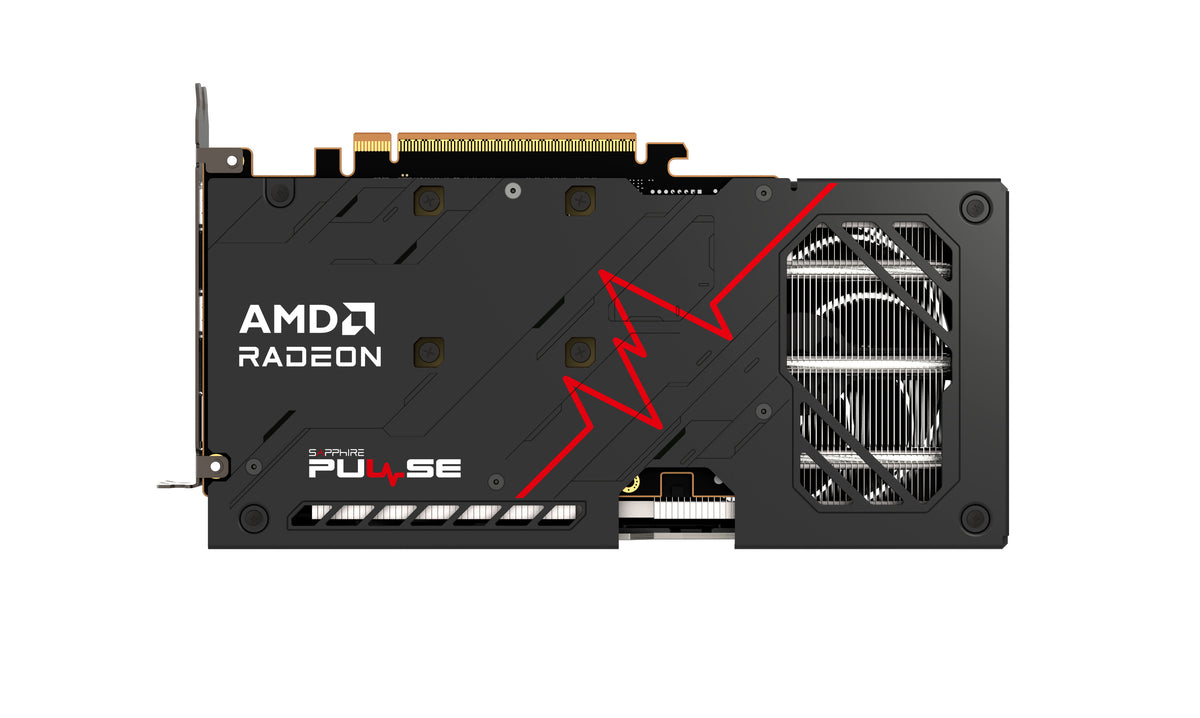

Sapphire PULSE AMD RADEON RX 9060 XT GAMING OC 16GB
Regular price
62,490.00 RSD
Save 3% by paying with cash in our store.
Contact Us
Šifra proizvoda:
2560191
Available now
| Product | |
| Name | AMD Radeon™ RX 9060 XT |
| Architecture | AMD RDNA™ 4 |
| Game Index | 1440p |
| Engine Clocks | |
| Boost Clock | Up to 3290 MHz |
| Game Clock | Up to 2700 MHz |
| Notes | Boost Clock is the maximum GPU frequency for bursty workloads and varies with thermals/workload. Game Clock is the expected frequency in typical gaming at reference TGP; results vary by title. |
| Compute | |
| Stream Processors | 2048 |
| Compute Units | 32 (3rd Gen RT + 2nd Gen AI Accelerators) |
| Ray Accelerators | 32 |
| AI Accelerators | 64 |
| Infinity Cache | 32 MB |
| Memory | |
| Size / Type | 16 GB GDDR6 |
| Bus | 128-bit |
| Effective Clock | 20 Gbps |
| Display & Outputs | |
| Max Displays | 3 |
| Max Resolution | HDMI®: 7680×4320, DisplayPort™ 2.1a: 7680×4320 |
| Outputs | 2 × HDMI®, 1 × DisplayPort™ 2.1a |
| Interface & BIOS | |
| Bus Interface | PCI Express® 5.0 ×16 |
| BIOS Support | UEFI |
| Cooling & Form Factor | |
| Cooler | Dual-X Cooling, AeroCurve Fan Blades, Free Flow, Integrated Cooling Module |
| Heatsink | Optimized Composite Heatpipes, High TG Copper PCB |
| Bearing | Sleeve Bearing |
| Shroud / Backplate | Metal Backplate |
| Form Factor | ATX, 2.3-slot |
| Dimensions | 240 (L) × 124 (W) × 46.1 (H) mm |
| Power | |
| Board Power | 170 W (Typical) |
| Recommended PSU | Minimum 450 W |
| Power Connectors | 1 × 8-pin PCIe |
| SAPPHIRE Features | |
| Cooling & PCB | Honeywell PTM7950 TIM, Dual-X Cooling, AeroCurve blades, Free Flow, High TG copper PCB, Metal backplate, Optimized heatpipes, 9-Phase Digital Power Design |
| Software | TriXX Boost, TriXX software suite, Intelligent & Precision Fan Control |
| AMD Features | |
| Display & Media | DisplayPort™ 2.1a, AMD Radiance Display™ Engine, AV1 Encode/Decode |
| Software & Tech | AMD HYPR-RX with AFMF 2, FSR 4 with AI Upscaling, Fluid Motion Frames 2, Anti-Lag 2, Noise Suppression, Adrenalin Edition™ |
| APIs | DirectX® 12 Ultimate, Vulkan®, FidelityFX™ technologies |
| OS & System Requirements | |
| Operating Systems | Windows® 10/11 64-bit, Linux® |
| System Requirements | PCIe® x16 slot, 1 × 8-pin power, ≥8 GB RAM (16 GB recommended) |
There is currently no content in this section. Use the sidebar to add material to this section.
Sapphire PULSE AMD RADEON RX 9060 XT GAMING OC 16GB
