| General Specifications | |
| Name | AMD Ryzen™ 7 7800X3D |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Processor Architecture | Zen 4 |
| CPU Specifications | |
| Cores | 8 |
| Threads | 16 |
| Multithreading (SMT) | Yes |
| Max. Boost Clock | Up to 5.0 GHz |
| Base Clock | 4.2 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB |
| Default TDP | 120W |
| Core Technology | TSMC 5nm FinFET |
| I/O Die Technology | TSMC 6nm FinFET |
| CCD Size | 71 mm² |
| IOD Size | 122 mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| Overclocking & Tools | |
| AMD EXPO™ Memory Overclocking | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| Platform | |
| Socket | AM5 |
| Supported Chipsets | A620, B650, B650E, B840, B850, X670, X670E, X870, X870E |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal | |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended |
| Max. Operating Temperature (Tjmax) | 89°C |
| Launch | |
| Launch Date | 04/06/2023 |
| OS Support | Windows 11/10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit |
| Connectivity | |
| Native USB 3.2 Gen 2 | 4 × 10Gbps |
| Native USB 3.2 Gen 1 | 0 |
| Native USB 2.0 | 1 |
| Native SATA Ports | 0 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28 / 24 |
| Additional PCIe Lanes from Motherboard | X670E: 12× Gen4 X670: 12× Gen4 B650E: 8× Gen4 B650: 8× Gen4 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| Memory | |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max Memory | 128 GB |
| Subtype | UDIMM |
| Max Memory Speed | 2×1R DDR5-5200 2×2R DDR5-5200 4×1R DDR5-3600 4×2R DDR5-3600 |
| ECC Support | Yes (requires motherboard support) |
| Graphics | |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Cores | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C® DisplayPort™ Alt Mode | Yes |
| Product IDs | |
| Boxed | 100-100000910WOF |
| Tray | 100-000000910 |
| Key Features | |
| Supported Technologies | AMD EXPO™ Technology, AMD Ryzen™ Technologies |
Pređite na informacije o proizvodu
Opis

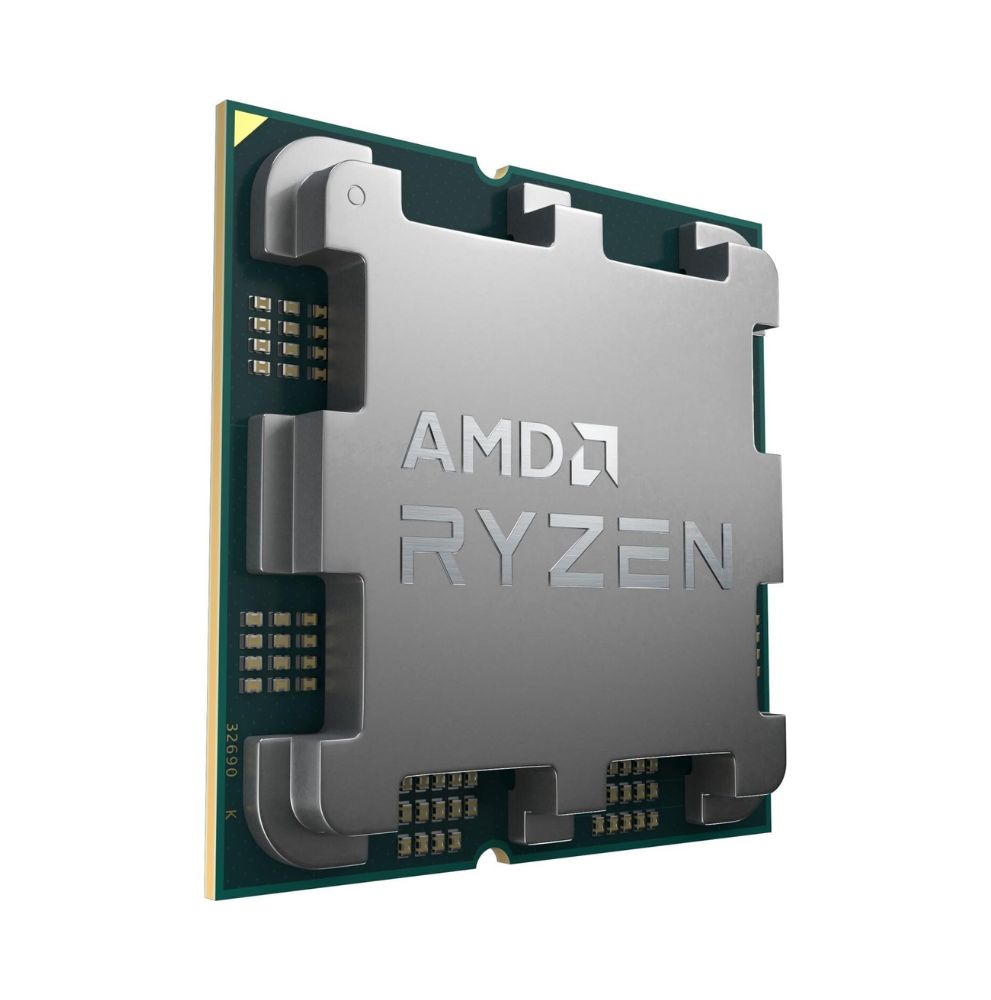

AMD Ryzen 7 7800X3D TRAY
Regularna cena
47,790.00 RSD
Ostvarite popust od 3% kada plaćate gotovinom u našoj prodavnici.
Kontaktirajte Nas
Šifra proizvoda:
CT000007
Odmah dostupno
| General Specifications | |
| Name | AMD Ryzen™ 7 7800X3D |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Processor Architecture | Zen 4 |
| CPU Specifications | |
| Cores | 8 |
| Threads | 16 |
| Multithreading (SMT) | Yes |
| Max. Boost Clock | Up to 5.0 GHz |
| Base Clock | 4.2 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB |
| Default TDP | 120W |
| Core Technology | TSMC 5nm FinFET |
| I/O Die Technology | TSMC 6nm FinFET |
| CCD Size | 71 mm² |
| IOD Size | 122 mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| Overclocking & Tools | |
| AMD EXPO™ Memory Overclocking | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| Platform | |
| Socket | AM5 |
| Supported Chipsets | A620, B650, B650E, B840, B850, X670, X670E, X870, X870E |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal | |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended |
| Max. Operating Temperature (Tjmax) | 89°C |
| Launch | |
| Launch Date | 04/06/2023 |
| OS Support | Windows 11/10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit |
| Connectivity | |
| Native USB 3.2 Gen 2 | 4 × 10Gbps |
| Native USB 3.2 Gen 1 | 0 |
| Native USB 2.0 | 1 |
| Native SATA Ports | 0 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28 / 24 |
| Additional PCIe Lanes from Motherboard | X670E: 12× Gen4 X670: 12× Gen4 B650E: 8× Gen4 B650: 8× Gen4 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| Memory | |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max Memory | 128 GB |
| Subtype | UDIMM |
| Max Memory Speed | 2×1R DDR5-5200 2×2R DDR5-5200 4×1R DDR5-3600 4×2R DDR5-3600 |
| ECC Support | Yes (requires motherboard support) |
| Graphics | |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Cores | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C® DisplayPort™ Alt Mode | Yes |
| Product IDs | |
| Boxed | 100-100000910WOF |
| Tray | 100-000000910 |
| Key Features | |
| Supported Technologies | AMD EXPO™ Technology, AMD Ryzen™ Technologies |
Trenutno nema sadržaja u ovom odeljku.
AMD Ryzen 7 7800X3D TRAY
Regularna cena
47,790.00 RSD
