| Technical details | |
| Vendor | be quiet |
| Sustainability compliance | Y |
| Sustainability certificates | ENERGY STAR, ErP, RoHS |
| Warranty period | 10 year(s) |
| Packaging content | |
| Cables included | PATA, PCIe, Peripheral (Molex), SATA |
| Ports & interfaces | |
| Motherboard power cable length | 550 mm |
| SATA power cable length | 500.600.650.800.950 mm |
| Peripheral (Molex) power cable length | 550 mm |
| PCI Express connector | Y |
| EPS power connector (4+4 pin) | Y |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Y |
| ATX power connector (20+4 pin) | Y |
| PCI Express power connectors (6+2 pin) | 4 |
| Number of PATA power connectors | 2 |
| Weight & dimensions | |
| Height | 86 mm |
| Width | 160 mm |
| Depth | 150 mm |
| Other features | |
| Number of screws | 5 |
| Screws included | Y |
| Noise level (quiet mode, 50%) | 9.5 dB |
| Noise level (full-load mode, 100%) | 25.7 dB |
| Noise level (silent mode, <30%) | 9.4 dB |
| Cable ties included | Y |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On (off switch) | Y |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan location | Top |
| Performance | |
| Noise level | 25.7 dB |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.0 |
| EPS version | 2.92 |
| 80 PLUS certification | 80 PLUS Gold |
| Power | |
| Total power | 850 W |
| Peak power | 900 W |
| Power Good signal delay range | 100 - 150 ms |
| Input current | 12 / 6 A |
| Efficiency | 93.2 % |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 70.9 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Max output current (+12V2) | 36 A |
| Max output current (+12V1) | 40 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging data | |
| Package type | Box |
Pređite na informacije o proizvodu
Opis

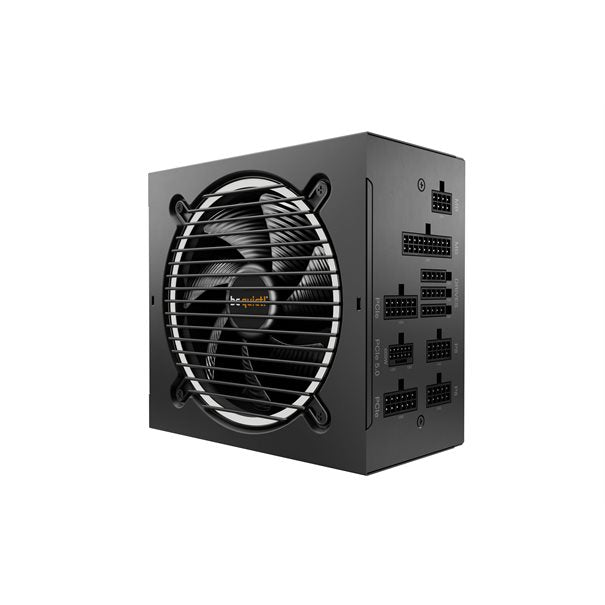

be quiet! PURE POWER 12 M 850W ATX 3.0
Regularna cena
17,990.00 RSD
Ostvarite popust od 3% kada plaćate gotovinom u našoj prodavnici.
Kontaktirajte Nas
Šifra proizvoda:
2090279
Odmah dostupno
| Technical details | |
| Vendor | be quiet |
| Sustainability compliance | Y |
| Sustainability certificates | ENERGY STAR, ErP, RoHS |
| Warranty period | 10 year(s) |
| Packaging content | |
| Cables included | PATA, PCIe, Peripheral (Molex), SATA |
| Ports & interfaces | |
| Motherboard power cable length | 550 mm |
| SATA power cable length | 500.600.650.800.950 mm |
| Peripheral (Molex) power cable length | 550 mm |
| PCI Express connector | Y |
| EPS power connector (4+4 pin) | Y |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Y |
| ATX power connector (20+4 pin) | Y |
| PCI Express power connectors (6+2 pin) | 4 |
| Number of PATA power connectors | 2 |
| Weight & dimensions | |
| Height | 86 mm |
| Width | 160 mm |
| Depth | 150 mm |
| Other features | |
| Number of screws | 5 |
| Screws included | Y |
| Noise level (quiet mode, 50%) | 9.5 dB |
| Noise level (full-load mode, 100%) | 25.7 dB |
| Noise level (silent mode, <30%) | 9.4 dB |
| Cable ties included | Y |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On (off switch) | Y |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan location | Top |
| Performance | |
| Noise level | 25.7 dB |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.0 |
| EPS version | 2.92 |
| 80 PLUS certification | 80 PLUS Gold |
| Power | |
| Total power | 850 W |
| Peak power | 900 W |
| Power Good signal delay range | 100 - 150 ms |
| Input current | 12 / 6 A |
| Efficiency | 93.2 % |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 70.9 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Max output current (+12V2) | 36 A |
| Max output current (+12V1) | 40 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging data | |
| Package type | Box |
Trenutno nema sadržaja u ovom odeljku.
be quiet! PURE POWER 12 M 850W ATX 3.0
Regularna cena
17,990.00 RSD
