Opis
Technical details
Vendor APC by Schneider Electric
Sustainability certificates RoHS
Ports & interfaces
USB 2.0 ports quantity 1
USB port Y
AC outlets quantity 4 AC outlet(s)
USB port type USB Type-B
Power plug Type F
AC outlet types Type F
Weight & dimensions
Height 190 mm
Width 140 mm
Depth 390 mm
Weight 12300 g
Battery
Battery recharge time 8 h
Typical backup time at half load 8.5 min
Typical backup time at full load 1 min
Battery life (max) 2 year(s)
Battery technology Sealed Lead Acid (VRLA)
Design
Cable length 1.2 m
LED indicators Y
Product colour Black
Certification CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Form factor Compact
International Protection (IP) code IP20
Features
Input power factor 0.54
Waveform Sine
Output voltage regulation 10 %
Output frequency regulation 0.5 Hz
Automatic Voltage Regulation (AVR) Y
Response time 6 ms
Audible alarm(s) Y
UPS topology Line-Interactive
Output power capacity 2.2 kVA
Surge energy rating 273 J
Noise level 40 dB
Audible alarm modes Low battery alarm
Input frequency 50/60 Hz
Output power 1200 W
Surge protection Y
Input operation voltage (max) 300 V
Input operation voltage (min) 140 V
Output operation voltage (min) 230 V
Output operation voltage (max) 230 V
Output frequency 50/60 Hz
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -15 - 40 °C
Packaging data
Cables included Input power cable
Package depth 495 mm
Package height 297 mm
Package width 235 mm
Manual Y
Package weight 13300 g

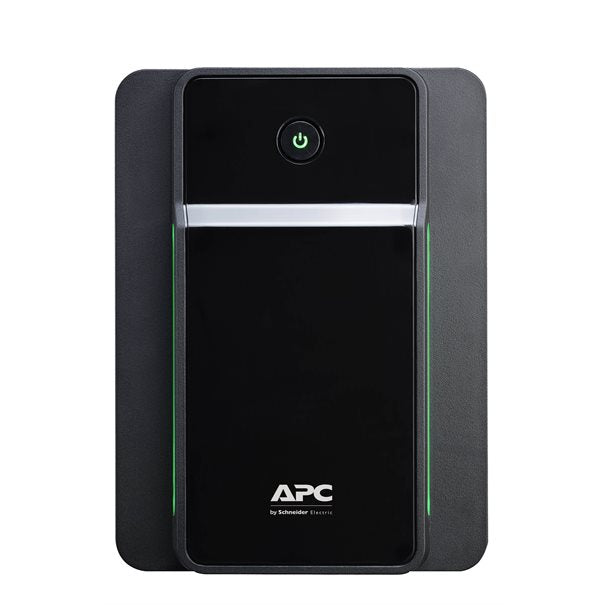

APC Back-UPS BX 2200 VA BX2200MI-GR

Regularna cena 39,100.00 RSD

Ostvarite popust od 3% kada plaćate gotovinom u našoj prodavnici.
Kontaktirajte Nas

Šifra proizvoda:

3910167

Technical details
Vendor APC by Schneider Electric
Sustainability certificates RoHS
Ports & interfaces
USB 2.0 ports quantity 1
USB port Y
AC outlets quantity 4 AC outlet(s)
USB port type USB Type-B
Power plug Type F
AC outlet types Type F
Weight & dimensions
Height 190 mm
Width 140 mm
Depth 390 mm
Weight 12300 g
Battery
Battery recharge time 8 h
Typical backup time at half load 8.5 min
Typical backup time at full load 1 min
Battery life (max) 2 year(s)
Battery technology Sealed Lead Acid (VRLA)
Design
Cable length 1.2 m
LED indicators Y
Product colour Black
Certification CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Form factor Compact
International Protection (IP) code IP20
Features
Input power factor 0.54
Waveform Sine
Output voltage regulation 10 %
Output frequency regulation 0.5 Hz
Automatic Voltage Regulation (AVR) Y
Response time 6 ms
Audible alarm(s) Y
UPS topology Line-Interactive
Output power capacity 2.2 kVA
Surge energy rating 273 J
Noise level 40 dB
Audible alarm modes Low battery alarm
Input frequency 50/60 Hz
Output power 1200 W
Surge protection Y
Input operation voltage (max) 300 V
Input operation voltage (min) 140 V
Output operation voltage (min) 230 V
Output operation voltage (max) 230 V
Output frequency 50/60 Hz
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -15 - 40 °C
Packaging data
Cables included Input power cable
Package depth 495 mm
Package height 297 mm
Package width 235 mm
Manual Y
Package weight 13300 g
