Key Features
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L

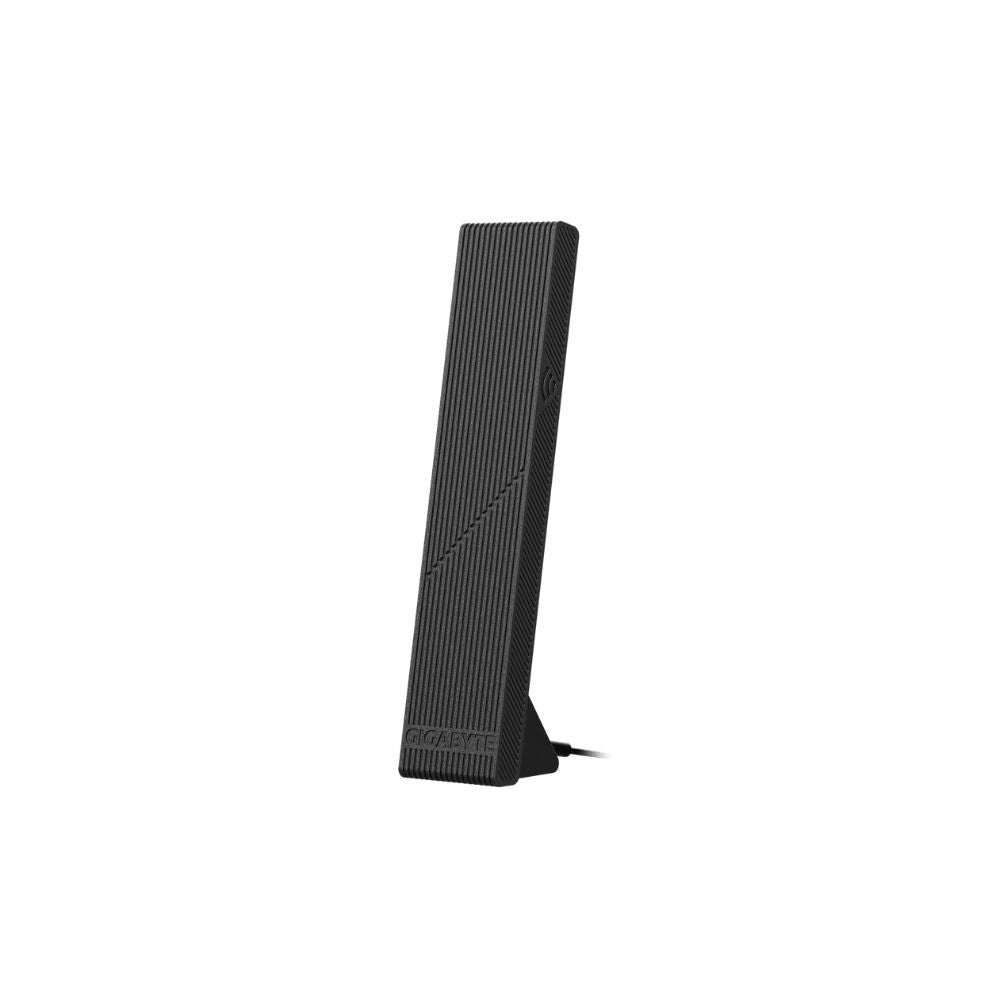

- Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
- Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
| CPU | AMD Socket AM5, supports Ryzen™ 9000/8000/7000 Series Processors |
| Chipset | AMD X870E |
| Memory | 4× DDR5 DIMM slots, up to 256 GB Supports DDR5 8200(OC)~4400 MT/s Dual channel architecture Supports AMD EXPO™ & Intel XMP |
| Graphics Outputs | 2× USB4 Type-C (DP, 3840x2160@240Hz) 1× HDMI 2.1 (4096x2160@60Hz) 1× HDMI 1.4 front port (1920x1080@30Hz) Supports up to 4 displays |
| Audio | Realtek® ALC1220 CODEC, supports DSD audio, 2/4/5.1/7.1-channel, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip |
| Wireless | MediaTek Wi-Fi 7 MT7925 (Rev. 1.0) or Realtek Wi-Fi 7 RTL8922AE (Rev. 1.1/1.2) Bluetooth 5.4, 2.4/5/6 GHz bands Wi-Fi 7 requires Windows 11 SV3 |
| Expansion Slots | 1× PCIe 5.0 x16 (CPU) 1× PCIe 4.0 x4 1× PCIe 3.0 x4 |
| Storage | 4× M.2 (1× PCIe 5.0, 2× PCIe 5.0, 1× PCIe 4.0) 4× SATA 6Gb/s RAID 0/1/5/10 (NVMe), RAID 0/1/10 (SATA) |
| USB Ports | Rear: 2× USB4 Type-C, 4× USB 3.2 Gen1, 2× USB 3.2 Gen2 Type-A, 4× USB 2.0 Internal: 1× USB 3.2 Gen2x2 Type-C, 4× USB 3.2 Gen1, 4× USB 2.0 |
| Internal Connectors | 24-pin ATX, 2× 8-pin ATX 12V CPU/W_PUMP/SYS_FAN headers RGB: 3× ARGB Gen2, 1× RGB Front panel, audio, USB-C, USB 3.2, USB 2.0, TPM, Power/Reset buttons Clear CMOS jumper, reset jumper |

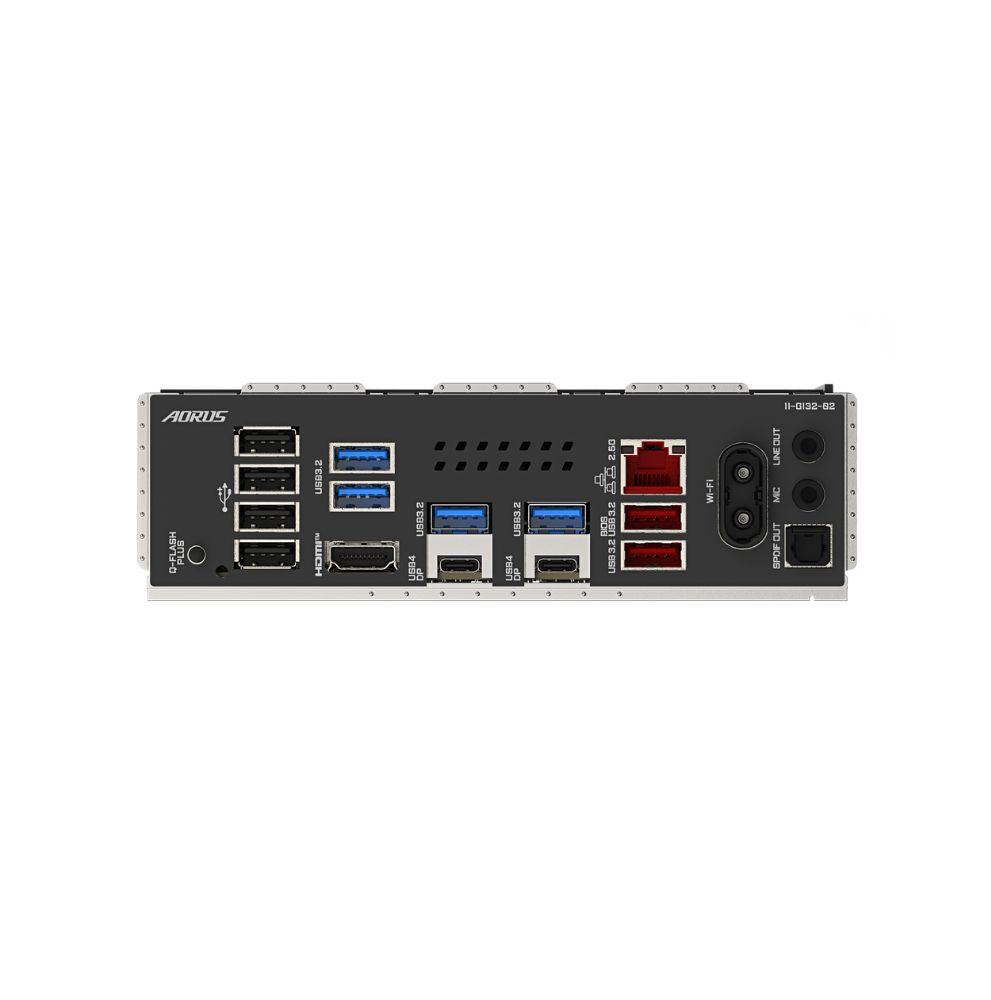

| Back Panel I/O | 2× USB4 Type-C, 2× USB 3.2 Gen2 Type-A, 4× USB 3.2 Gen1, 4× USB 2.0 HDMI, RJ-45, 2× Wi-Fi Antenna, 2× Audio jacks, Optical S/PDIF Q-Flash Plus button |
| Monitoring | Voltage, temperature, fan speed, water flow rate, noise detection Fan/pump speed control, fan fail warning |
| BIOS | 256Mbit flash, AMI UEFI BIOS, Q-Flash, Q-Flash Plus, Smart Backup |
| Software | GIGABYTE Control Center, Norton Internet Security (OEM), LAN management software |
| OS Support | Windows 11 64-bit |
| Form Factor | ATX, 30.5cm x 24.4cm |
