| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information.) |
| Chipset | Intel® B860 Express Chipset |
| Memory | Support for DDR5 9200(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs (Max 5120x2880@60 Hz) 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for up to triple-display at the same time |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek® Wi-Fi 7 RTL8922AE (PCB rev.1.0): 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, BLUETOOTH 5.4, 11be 160MHz standard MediaTek Wi-Fi 7 MT7925 (PCB rev.1.1): 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, BLUETOOTH 5.4, 11be 160MHz standard |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16) CPU, PCIe 5.0 x16 *Supports only a graphics card or NVMe SSD |
| Storage Interface | 1 x M.2 connector (M2A_CPU, PCIe 5.0 x4/x2) 1 x M.2 connector (M2Q_SB, PCIe 4.0 x4/x2) 2 x SATA 6Gb/s connectors RAID 0 and RAID 1 support |
| USB | CPU: 1 x USB4® Type-C® port Chipset: 1 x USB Type-C® (USB 3.2 Gen2), 3 x USB 3.2 Gen2 Type-A (red), 2 x USB 2.0/1.1 internal Chipset+USB Hub: 4 x USB 3.2 Gen1 (2 back, 2 internal) |
| Internal I/O Connectors | 1 x 24-pin ATX main power 1 x 8-pin ATX 12V 1 x CPU fan header, 1 x CPU water-cooling fan header 3 x system fan headers 2 x addressable LED strip headers, 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors, 2 x SATA 6Gb/s Front panel header, front panel audio header, speaker header 1 x USB Type-C™ header (USB 3.2 Gen1), 1 x USB 3.2 Gen1 header, 2 x USB 2.0/1.1 headers 1 x TPM header, 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x DisplayPort, 1 x HDMI 1 x Thunderbolt™ 4 (USB4® Type-C®) 2 x USB 3.2 Gen1 ports, 2 x USB 3.2 Gen2 Type-A (red) 2 x SMA antenna connectors, 1 x Q-Flash Plus, 1 x RJ-45, 1 x optical S/PDIF Out 5 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Overheating warning, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center (applications vary), @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Support for Q-Flash Plus, Q-Flash |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Pređite na informacije o proizvodu
Opis
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information.) |
| Chipset | Intel® B860 Express Chipset |
| Memory | Support for DDR5 9200(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs (Max 5120x2880@60 Hz) 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for up to triple-display at the same time |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek® Wi-Fi 7 RTL8922AE (PCB rev.1.0): 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, BLUETOOTH 5.4, 11be 160MHz standard MediaTek Wi-Fi 7 MT7925 (PCB rev.1.1): 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, BLUETOOTH 5.4, 11be 160MHz standard |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16) CPU, PCIe 5.0 x16 *Supports only a graphics card or NVMe SSD |
| Storage Interface | 1 x M.2 connector (M2A_CPU, PCIe 5.0 x4/x2) 1 x M.2 connector (M2Q_SB, PCIe 4.0 x4/x2) 2 x SATA 6Gb/s connectors RAID 0 and RAID 1 support |
| USB | CPU: 1 x USB4® Type-C® port Chipset: 1 x USB Type-C® (USB 3.2 Gen2), 3 x USB 3.2 Gen2 Type-A (red), 2 x USB 2.0/1.1 internal Chipset+USB Hub: 4 x USB 3.2 Gen1 (2 back, 2 internal) |
| Internal I/O Connectors | 1 x 24-pin ATX main power 1 x 8-pin ATX 12V 1 x CPU fan header, 1 x CPU water-cooling fan header 3 x system fan headers 2 x addressable LED strip headers, 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors, 2 x SATA 6Gb/s Front panel header, front panel audio header, speaker header 1 x USB Type-C™ header (USB 3.2 Gen1), 1 x USB 3.2 Gen1 header, 2 x USB 2.0/1.1 headers 1 x TPM header, 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x DisplayPort, 1 x HDMI 1 x Thunderbolt™ 4 (USB4® Type-C®) 2 x USB 3.2 Gen1 ports, 2 x USB 3.2 Gen2 Type-A (red) 2 x SMA antenna connectors, 1 x Q-Flash Plus, 1 x RJ-45, 1 x optical S/PDIF Out 5 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Overheating warning, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center (applications vary), @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Support for Q-Flash Plus, Q-Flash |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Trenutno nema sadržaja u ovom odeljku.

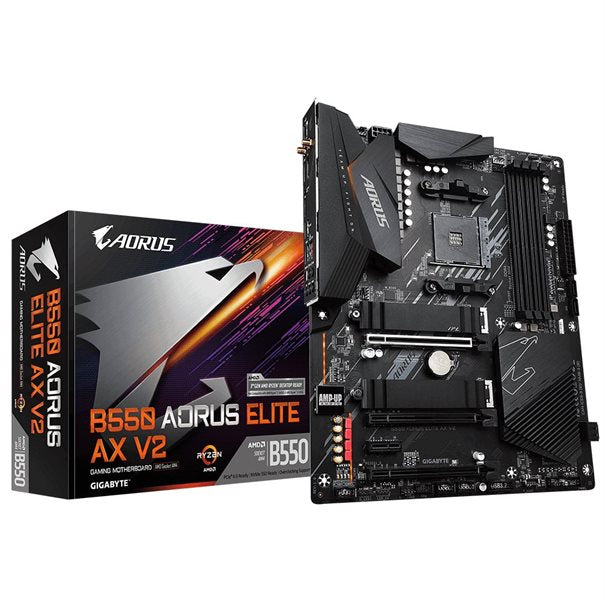

Gigabyte B550 AORUS ELITE AX V2
Regularna cena
17,300.00 RSD
