| Model | |
|---|---|
| Model | PRIME Z890-P WIFI |
| CPU | |
| Supported CPUs | Intel® Core™ Ultra Processors (Series 2), LGA1851 * Refer to ASUS Support for CPU support list. |
| Technologies | Intel® Turbo Boost Technology 2.0, Intel® Turbo Boost Max Technology 3.0 (depends on CPU) |
| Chipset | |
| Chipset | Intel® Z890 Chipset |
| Memory | |
| Slots | 4 x DIMM, max. 256GB, DDR5 |
| Supported Speeds | Up to 8666+MT/s (OC), Non-ECC, Un-buffered, CUDIMM |
| Architecture | Dual channel |
| Features | Intel® XMP, ASUS Enhanced Memory Profile III (AEMPIII), On-Die ECC (DDR5) |
| Graphics | |
| Outputs | 1 x DisplayPort 1.4 (max. 4K@60Hz) 1 x HDMI™ 2.1 (max. 4K@60Hz) 1 x Thunderbolt™ 4 (USB Type-C®, supports DisplayPort/Thunderbolt outputs up to 8K@60Hz x1 with DSC) |
| Expansion Slots | |
| CPU | 1 x PCIe 5.0 x16 |
| Chipset | 2 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x16 (x1 mode) |
| Storage | |
| M.2 Slots | 4 x M.2 M.2_1 (CPU): PCIe 5.0 x4 (2280/22110) M.2_2 (CPU): PCIe 4.0 x4 (2280) M.2_3 (Chipset): PCIe 4.0 x4 (2280/22110) M.2_4 (Chipset): PCIe 4.0 x4 & SATA (2242/2260/2280) |
| SATA | 4 x SATA 6Gb/s ports |
| RAID Support | Intel® RST supports PCIe/SATA RAID 0/1/5/10 (CPU M.2 slots only support RAID 0/1/5) |
| Networking | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with ASUS LANGuard |
| Wireless | Wi-Fi 7 (802.11be), 2x2, supports 2.4/5/6GHz Wi-Fi 7 160MHz, up to 2.9Gbps Bluetooth® v5.4 |
| USB | |
| Rear Panel | 1 x Thunderbolt™ 4 (USB-C) 1 x USB 10Gbps (Type-A) 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) |
| Front Panel | 1 x USB 10Gbps (USB-C) 2 x USB 5Gbps headers (4 ports) 2 x USB 2.0 headers (4 ports) |
| Audio | |
| Audio Codec | Realtek 7.1 Surround HD Audio |
| Features | Jack-detection, Multi-streaming, Front Panel Jack-retasking, 24-Bit/192kHz playback, Audio shielding, Premium capacitors, Dedicated PCB layers |
| Back Panel I/O | |

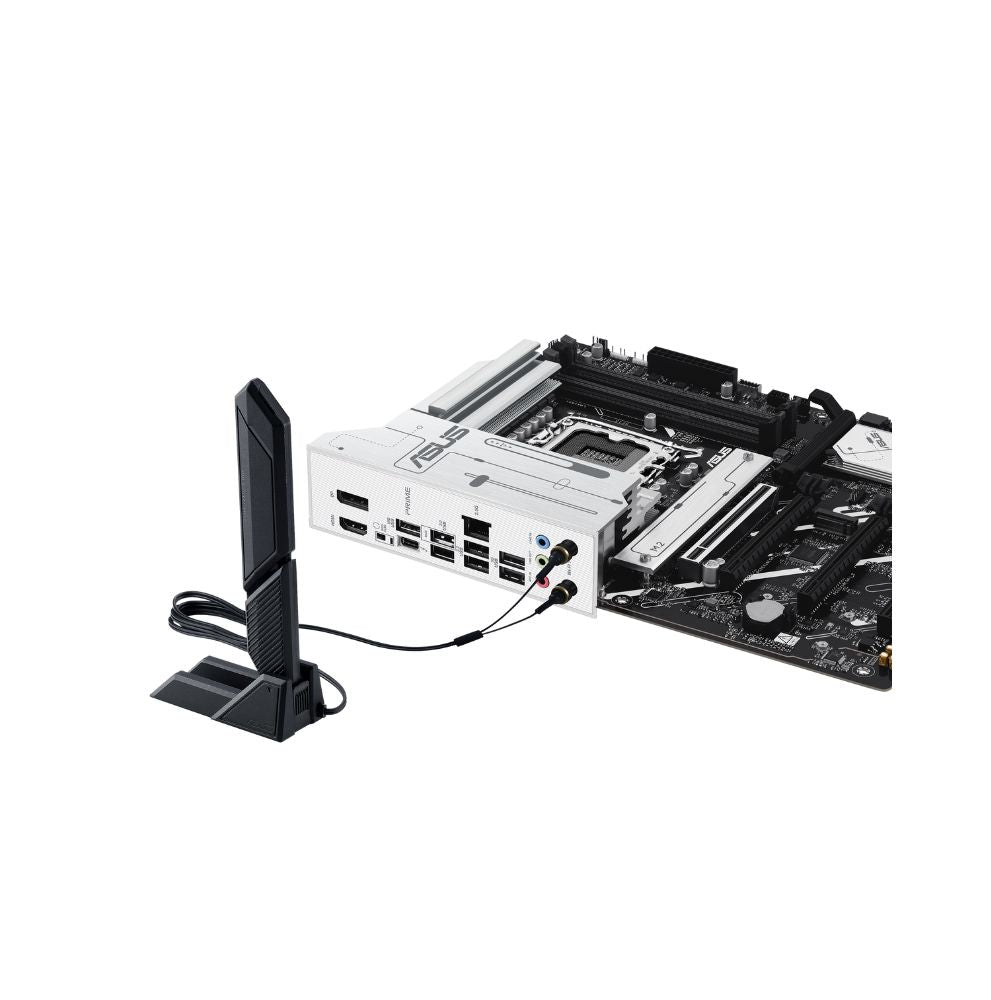

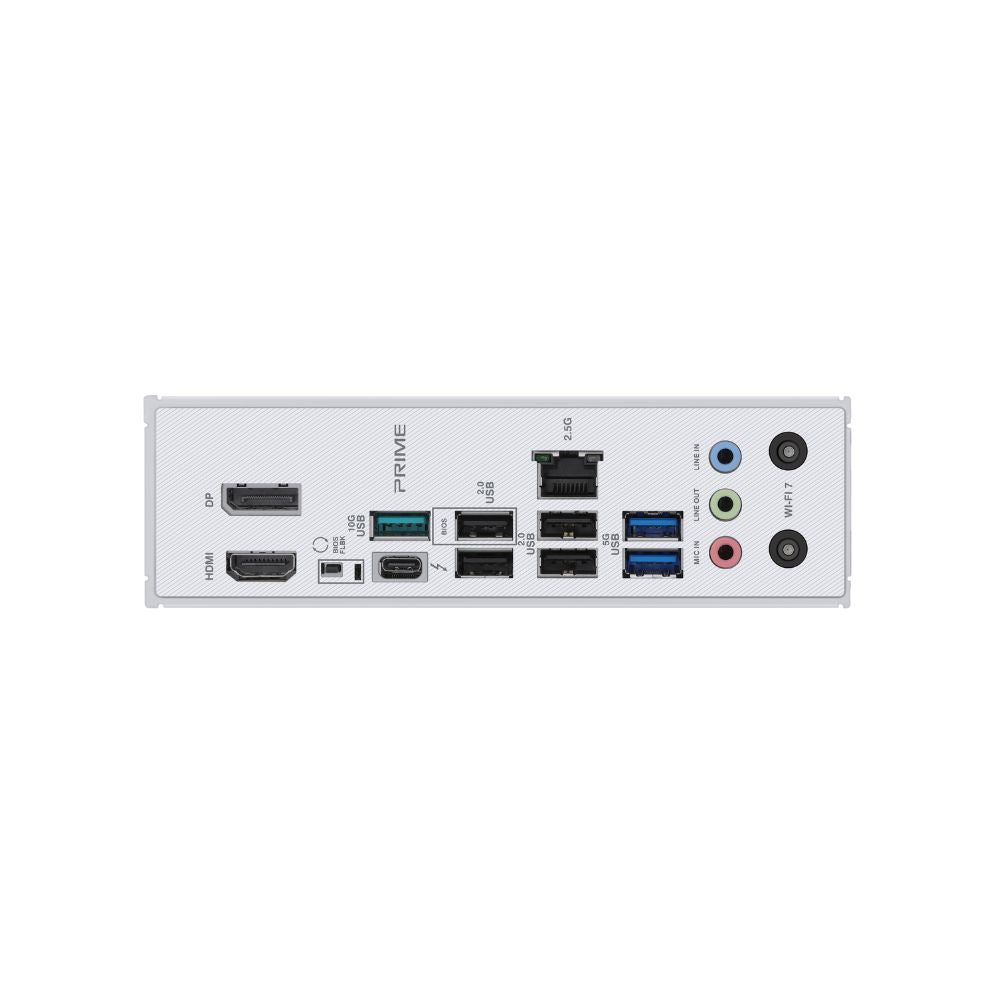

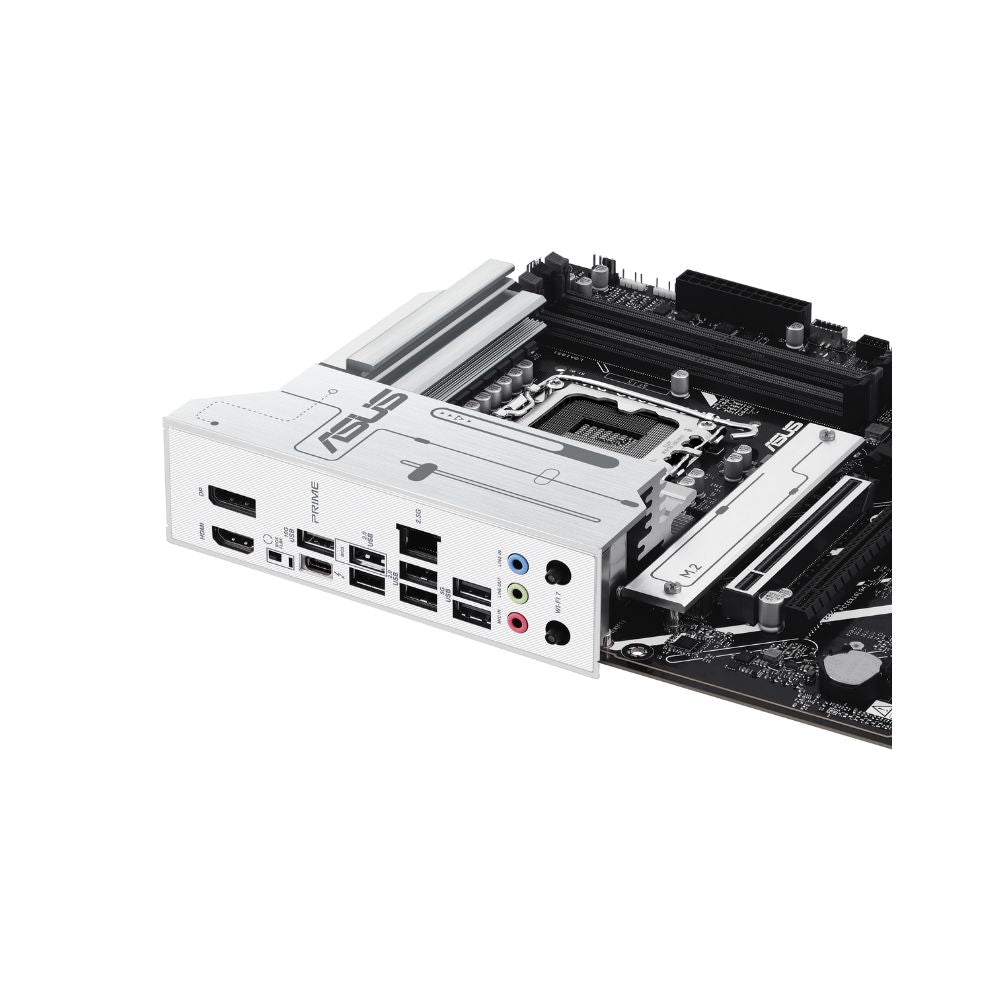

| Connectors | 1 x Thunderbolt™ 4 USB-C 1 x USB 10Gbps (Type-A) 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) 1 x DisplayPort 1 x HDMI™ 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O | |
| Cooling | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan |
| Power | 1 x 24-pin Main, 2 x 8-pin +12V CPU |
| USB | 1 x USB 10Gbps (USB-C) 2 x USB 5Gbps headers (4 ports) 2 x USB 2.0 headers (4 ports) |
| Other | 3 x Addressable Gen2 headers, 1 x Aura RGB header, Clear CMOS, COM Port, Front Audio, S/PDIF Out, SPI TPM, Thunderbolt™ (USB4®) header |
| Special Features | |
| Protection | ASUS 5X Protection III (DIGI+ VRM with DrMOS, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel I/O) |
| Q-Design | M.2 Q-Latch, PCIe Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot |
| Thermal | M.2 heatsinks, VRM heatsink design |
| DIY | BIOS FlashBack™ button + LED, ProCool, Pre-mounted I/O shield |
| Aura Sync | Aura RGB header, Addressable Gen2 headers |
| Software Features | |
| ASUS Exclusive | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving) ASUS AI Advisor, DriverHub, GlideX, CPU-Z, TurboV Core |
| Bundled | Norton 360 Deluxe (60 days trial), WinRAR (40 days trial) |
| BIOS | ASUS CrashFree BIOS 3, EZ Flash, UEFI BIOS EZ Mode, MyHotkey |
| NPU Boost | Available for Intel K-series processors only |
| BIOS | |
| ROM | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | |
| Features | WOL by PME, PXE |
| Accessories | |
| Cables | 2 x SATA 6Gb/s cables |

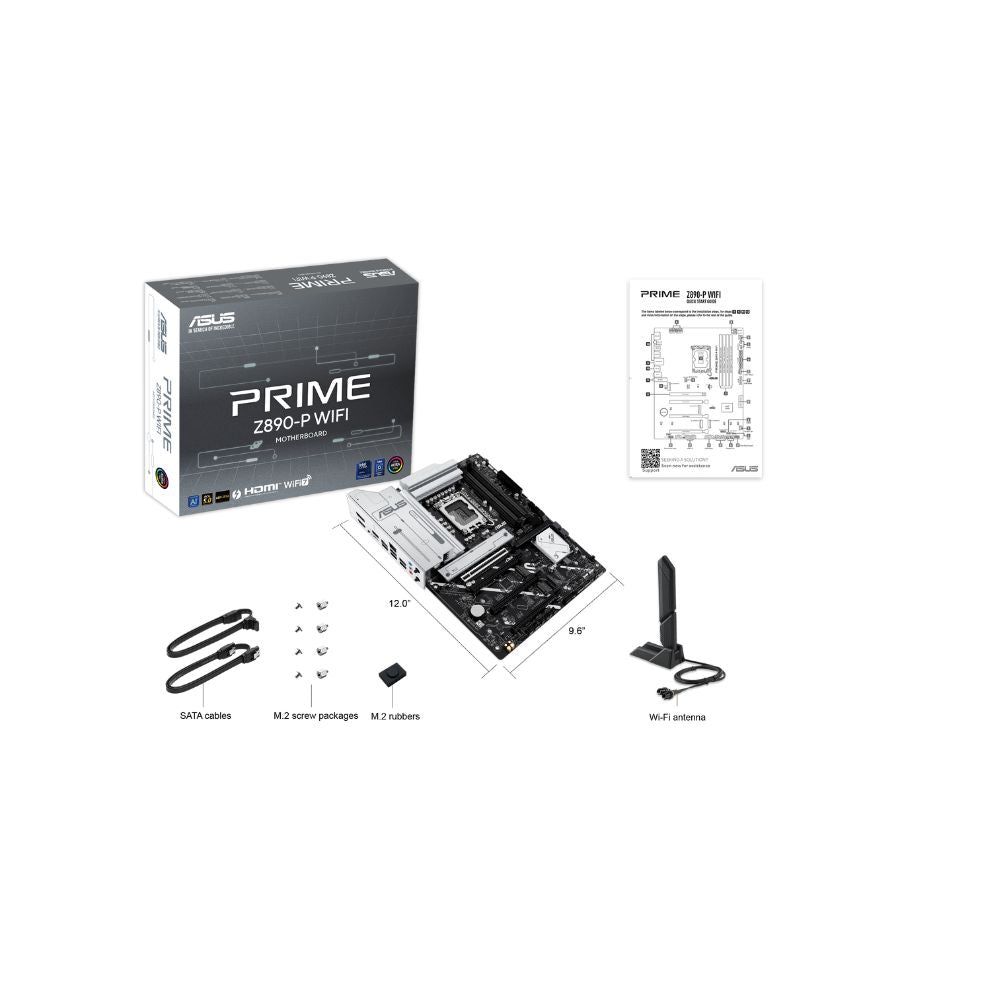

| Misc | ASUS WiFi Q-Antenna, M.2 rubber package, 2 x Screw packages for M.2 SSD |
| Docs | Quick Start Guide |
| Operating System | |
| OS | Windows 11 (22H2 & later) |
| Form Factor | |
| Form Factor | ATX, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
Pređite na informacije o proizvodu
Opis
| Model | |
|---|---|
| Model | PRIME Z890-P WIFI |
| CPU | |
| Supported CPUs | Intel® Core™ Ultra Processors (Series 2), LGA1851 * Refer to ASUS Support for CPU support list. |
| Technologies | Intel® Turbo Boost Technology 2.0, Intel® Turbo Boost Max Technology 3.0 (depends on CPU) |
| Chipset | |
| Chipset | Intel® Z890 Chipset |
| Memory | |
| Slots | 4 x DIMM, max. 256GB, DDR5 |
| Supported Speeds | Up to 8666+MT/s (OC), Non-ECC, Un-buffered, CUDIMM |
| Architecture | Dual channel |
| Features | Intel® XMP, ASUS Enhanced Memory Profile III (AEMPIII), On-Die ECC (DDR5) |
| Graphics | |
| Outputs | 1 x DisplayPort 1.4 (max. 4K@60Hz) 1 x HDMI™ 2.1 (max. 4K@60Hz) 1 x Thunderbolt™ 4 (USB Type-C®, supports DisplayPort/Thunderbolt outputs up to 8K@60Hz x1 with DSC) |
| Expansion Slots | |
| CPU | 1 x PCIe 5.0 x16 |
| Chipset | 2 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x16 (x1 mode) |
| Storage | |
| M.2 Slots | 4 x M.2 M.2_1 (CPU): PCIe 5.0 x4 (2280/22110) M.2_2 (CPU): PCIe 4.0 x4 (2280) M.2_3 (Chipset): PCIe 4.0 x4 (2280/22110) M.2_4 (Chipset): PCIe 4.0 x4 & SATA (2242/2260/2280) |
| SATA | 4 x SATA 6Gb/s ports |
| RAID Support | Intel® RST supports PCIe/SATA RAID 0/1/5/10 (CPU M.2 slots only support RAID 0/1/5) |
| Networking | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with ASUS LANGuard |
| Wireless | Wi-Fi 7 (802.11be), 2x2, supports 2.4/5/6GHz Wi-Fi 7 160MHz, up to 2.9Gbps Bluetooth® v5.4 |
| USB | |
| Rear Panel | 1 x Thunderbolt™ 4 (USB-C) 1 x USB 10Gbps (Type-A) 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) |
| Front Panel | 1 x USB 10Gbps (USB-C) 2 x USB 5Gbps headers (4 ports) 2 x USB 2.0 headers (4 ports) |
| Audio | |
| Audio Codec | Realtek 7.1 Surround HD Audio |
| Features | Jack-detection, Multi-streaming, Front Panel Jack-retasking, 24-Bit/192kHz playback, Audio shielding, Premium capacitors, Dedicated PCB layers |
| Back Panel I/O | |
| Connectors | 1 x Thunderbolt™ 4 USB-C 1 x USB 10Gbps (Type-A) 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) 1 x DisplayPort 1 x HDMI™ 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O | |
| Cooling | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan |
| Power | 1 x 24-pin Main, 2 x 8-pin +12V CPU |
| USB | 1 x USB 10Gbps (USB-C) 2 x USB 5Gbps headers (4 ports) 2 x USB 2.0 headers (4 ports) |
| Other | 3 x Addressable Gen2 headers, 1 x Aura RGB header, Clear CMOS, COM Port, Front Audio, S/PDIF Out, SPI TPM, Thunderbolt™ (USB4®) header |
| Special Features | |
| Protection | ASUS 5X Protection III (DIGI+ VRM with DrMOS, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel I/O) |
| Q-Design | M.2 Q-Latch, PCIe Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot |
| Thermal | M.2 heatsinks, VRM heatsink design |
| DIY | BIOS FlashBack™ button + LED, ProCool, Pre-mounted I/O shield |
| Aura Sync | Aura RGB header, Addressable Gen2 headers |
| Software Features | |
| ASUS Exclusive | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving) ASUS AI Advisor, DriverHub, GlideX, CPU-Z, TurboV Core |
| Bundled | Norton 360 Deluxe (60 days trial), WinRAR (40 days trial) |
| BIOS | ASUS CrashFree BIOS 3, EZ Flash, UEFI BIOS EZ Mode, MyHotkey |
| NPU Boost | Available for Intel K-series processors only |
| BIOS | |
| ROM | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | |
| Features | WOL by PME, PXE |
| Accessories | |
| Cables | 2 x SATA 6Gb/s cables |
| Misc | ASUS WiFi Q-Antenna, M.2 rubber package, 2 x Screw packages for M.2 SSD |
| Docs | Quick Start Guide |
| Operating System | |
| OS | Windows 11 (22H2 & later) |
| Form Factor | |
| Form Factor | ATX, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
Trenutno nema sadržaja u ovom odeljku.
ASUS PRIME Z890-P WIFI
Regularna cena
0.00 RSD
Rasprodato
