| General | |
| Processor model | Intel Core i5 (12. Gen.) 12400 / 18 MB Intel Smart Cache, max. Turbo-Frequency 4.4 GHz) |
| Operating system | Windows 11 Pro |
| Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
| Processor | |
| Processor family | Core i5 |
| Processor cores | Hexa-Core (6 Core) |
| Processor socket | FCLGA1700 Socket |
| Number of processors | 1 |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 64 GB |
| Memory clock speed | PC4800 MHz |
| Internal memory type | DDR5 SDRAM |
| Memory slots | 2 pc(s) |
| Memory form factor | SO DIMM, 260-PIN |
| Storage | |
| Total storage capacity | 500 GB |
| HDD interface | 2x M.2 (2280) PCIe/NVMe Gen4 1x 2.5" SATA 6Gb/s (max 7mm height) |
| RAID levels | No Raid support |
| Card reader integrated | Not available |
| SSD interface | PCIe (NVMe) |
| SSD capacity | 500 GB |
| HDD capacity | 1 x 500 GB - SSD |
| Number of storage drives supported | 2 |
| Storage media | SSD M.2 |
| Performance | |
| Series | Business |
| Noise level | 21.7 dB(A) Idle mode fan speed 2100 rpm, 31.5 dB(A) Operation mode fan speed 2900 rpm, measuring distance according to DIN EN ISO 7779: 0.5m |
| Motherboard chipset | Intel B760 |
| Audio system | High Definition Audio |
| Design | |
| Chassis type | Mini format |
| Certification | ISO 9001, Assembled in Germany Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC 24-7 ready (temporary fan-maintance required) |
| Keyboard form factor | Option. Keyboard not included |
| Technical details | |
| Localization | International |
| Field of use | Digital Signage |
| Packaging content | |
| Included Accessories | Quick Install Guide (DE/ EN/ FR), Driver CD, PSU, WiFi Antenna, stand, VESA Mounting Kit incl. screws |
| Keyboard language | Option. Keyboard not included |
| Weight & dimensions | |
| Height | 4.2 cm |
| Width | 17.5 cm |
| Depth | 17.5 cm |
| Weight | 1185 g |
| Other features | |

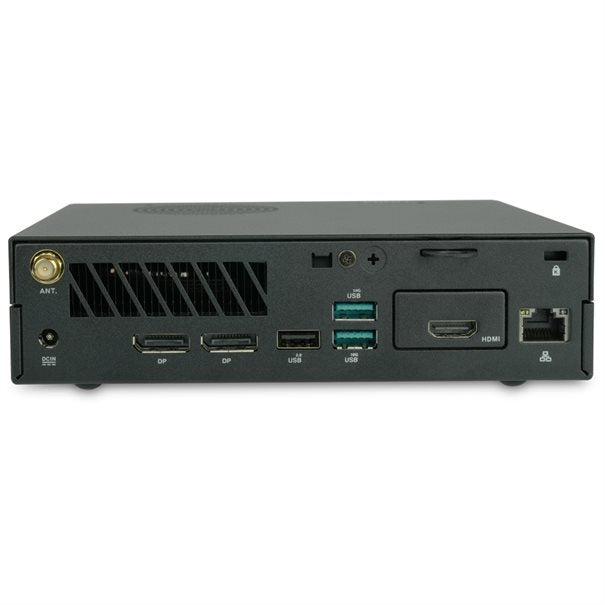

| Interface | Front: 2x USB 3.2 Type-A, 1x USB 3.2 Type-C, 2x USB 2.0 Type-A, 1x Audio Rear: 2x USB 3.2 Type-A, 1x USB 2.0 Type-A. 1x LAN, DC-in, 2x DP 1.4, 1x HDMI (exchangeable with COM or 2nd LAN port), 1x Kensington Lock, 1x WiFi Antennen Port |
| Compatible operating systems | Windows 10, Windows 11 |
| Cooling type | Active |
| Special features | 1 watt internal speaker Secure Boot TPM 2.0 Microsoft Autopilot-ready Barbone MIL-STD-810H Barebone 24-7 ready Option: Dust filter |
| Mouse | |
| Mouse included | Optional |
| Graphics | |
| On-board graphics adapter memory | Dynamic |
| On-board graphics adapter maximum resolution | HDMI 4096x2160 @ 60Hz (4K), Display Port3840x2160 @ 60Hz (4K) |
| Graphics card | Intel UHD Graphics 730 (1130 MHz) |
| On-board graphics card model | Intel UHD Graphics 730 (1130 MHz) |
| Graphics adapter ports | 2x Display Port 1.2, 1x HMDI 2.0 Supports Triple-Monitoring |
| Power | |
| Power source | External fanless power supply Efficiency : > 87% |
| Maximum input power | 150 Watt |
| Nominal power | Ø 10 Watt Long Idle-Mode Ø 45 kWh a year (TEC = Typical Energy Consumption) Further information regarding Energy consumption see https://www.wortmann.de/green and/ or Quicklinks for this product (if available) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Operational conditions | |
| Operating temperature (T-T) | 5 °C - 50 °C Note: In environments with an operating temperature above 40°, SSD-drives and SO-DIMM-memories with an advanced range of temperature are recommended! |
| Maximum operating temperature range (T-T) | 50 °C Note: In environments with an operating temperature above 40°, SSD-drives and SO-DIMM-memories with an advanced range of temperature are recommended! |
| Recommended humidity operating range | 10 - 80% (non-condensing) |
| Network | |
| Ethernet LAN | Netzwerkadapter - integriert |
| LAN controller | Intel I219V, WOL/PXE |
| Wi-Fi standards | Intel AX211 Wi-Fi 6E (802.11ax) Bluetooth 5.3 |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gb Ethernet, IEEE 802.11ax Bluetooth 5.3 |
| Optical drive | |
| Optical drive type | None |
| Input device | |
| Device interface | USB Note: Keyboard not included |
