| Software | |
| Operating system | No |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Processor | |
| Processor cores | 4 |
| Processor frequency | 1.6 GHz |
| Processor cache | 6 MB |
| Processor manufacturer | Intel |
| CPU configuration (max) | 1 |
| Thermal Design Power (TDP) | 15 W |
| Processor lithography | 14 nm |
| Processor family | 8th gen Intel® Core™ i5 |
| ECC supported by processor | No |
| Efficient cores | 8 |
| Performance cores | 2 |
| Efficient-core boost frequency | 3.4 GHz |
| Performance-core boost frequency | 4.6 GHz |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-8265U |
| Processor threads | 8 |
| Built-in processor | Y |
| Processor boost frequency | 3.9 GHz |
| Network | |
| Ethernet LAN | Y |
| Bluetooth | 4.0 Y |
| LAN controller | Intel® I211, Intel® I219-LM |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Design | |
| Chassis type | 1.3L sized PC |
| Kensington Lock | Y |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| LED indicators | HDD,Power |
| VESA mounting | Y |
| Product colour | Black |
| Certification | FCC, CE, BSMI, C-Tick, ErP |
| VESA mounting interface | 75 x 75.100 x 100 mm |
| Housing material | Steel |
| Safety | ETL, CB, BSMI |
| On (off switch) | Y |
| Cooling type | Passive |
| Energy efficiency according to EnergyStar 8.0 | Y |
| Storage | |
| Supported storage drive types | HDD,SSD |
| NVMe | Yes |
| Card reader integrated | Y |
| Compatible memory cards | SD,SDHC,SDXC |
| Storage drive interface | Serial ATA |
| Number of storage drives supported | 2 |
| Storage drive sizes supported | 2.5 " |
| Technical details | |
| Vendor | Shuttle |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus |
| Packaging content | |
| AC adapter included | Y |
| Quick start guide | Y |
| Power cord included | Y |
| Drivers included | Y |
| Ports & interfaces | |
| DisplayPort version | 1.2 |
| Serial ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Y |
| DC-in jack | Y |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| DisplayPorts quantity | 1 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express slots version | 3.0 |
| Weight & dimensions | |
| Height | 39.5 mm |
| Width | 165 mm |
| Depth | 200 mm |
| Package weight | 2200 g |
| Weight | 1500 g |
| Graphics | |
| Graphics card | UHD Graphics 620 |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card | Y |
| Processor special features | |
| Intel Flex Memory Access | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Execute Disable Bit | Y |
| Idle States | Y |
| Intel Trusted Execution Technology | N |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Embedded options available | N |
| Intel TSX-NI | N |
| Intel 64 | Y |
| Intel Stable Image Platform Program (SIPP) | N |
| Intel Virtualization Technology for Directed I (O (VT-d)) | Y |
| Intel Clear Video Technology | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Performance | |
| Trusted Platform Module (TPM) version | 2.0 |
| BIOS type | UEFI AMI |
| Audio output channels | 2.0 channels |
| Harmonized System (HS) code | 84733080 |
| Audio chip | Realtek ALC662 |
| Operating system | N |
| Trusted Platform Module (TPM) | Y |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Y |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Country of origin | China |
| Power | |
| Power supply | 65 W |
| Power supply type | External AC adapter |
| Number of power supply units | 1 |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Memory | |
| Memory slots type | SO-DIMM |
| Maximum internal memory | 32 GB |
| Number of memory slots | 2 |
| Non-ECC | Y |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133.2400 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual |
| Audio | |
| Built-in speaker(s) | N |
Pređite na informacije o proizvodu
Opis
| Software | |
| Operating system | No |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Processor | |
| Processor cores | 4 |
| Processor frequency | 1.6 GHz |
| Processor cache | 6 MB |
| Processor manufacturer | Intel |
| CPU configuration (max) | 1 |
| Thermal Design Power (TDP) | 15 W |
| Processor lithography | 14 nm |
| Processor family | 8th gen Intel® Core™ i5 |
| ECC supported by processor | No |
| Efficient cores | 8 |
| Performance cores | 2 |
| Efficient-core boost frequency | 3.4 GHz |
| Performance-core boost frequency | 4.6 GHz |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-8265U |
| Processor threads | 8 |
| Built-in processor | Y |
| Processor boost frequency | 3.9 GHz |
| Network | |
| Ethernet LAN | Y |
| Bluetooth | 4.0 Y |
| LAN controller | Intel® I211, Intel® I219-LM |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Design | |
| Chassis type | 1.3L sized PC |
| Kensington Lock | Y |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| LED indicators | HDD,Power |
| VESA mounting | Y |
| Product colour | Black |
| Certification | FCC, CE, BSMI, C-Tick, ErP |
| VESA mounting interface | 75 x 75.100 x 100 mm |
| Housing material | Steel |
| Safety | ETL, CB, BSMI |
| On (off switch) | Y |
| Cooling type | Passive |
| Energy efficiency according to EnergyStar 8.0 | Y |
| Storage | |
| Supported storage drive types | HDD,SSD |
| NVMe | Yes |
| Card reader integrated | Y |
| Compatible memory cards | SD,SDHC,SDXC |
| Storage drive interface | Serial ATA |
| Number of storage drives supported | 2 |
| Storage drive sizes supported | 2.5 " |
| Technical details | |
| Vendor | Shuttle |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus |
| Packaging content | |
| AC adapter included | Y |
| Quick start guide | Y |
| Power cord included | Y |
| Drivers included | Y |
| Ports & interfaces | |
| DisplayPort version | 1.2 |
| Serial ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Y |
| DC-in jack | Y |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| DisplayPorts quantity | 1 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express slots version | 3.0 |
| Weight & dimensions | |
| Height | 39.5 mm |
| Width | 165 mm |
| Depth | 200 mm |
| Package weight | 2200 g |
| Weight | 1500 g |
| Graphics | |
| Graphics card | UHD Graphics 620 |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card | Y |
| Processor special features | |
| Intel Flex Memory Access | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Execute Disable Bit | Y |
| Idle States | Y |
| Intel Trusted Execution Technology | N |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Embedded options available | N |
| Intel TSX-NI | N |
| Intel 64 | Y |
| Intel Stable Image Platform Program (SIPP) | N |
| Intel Virtualization Technology for Directed I (O (VT-d)) | Y |
| Intel Clear Video Technology | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Performance | |
| Trusted Platform Module (TPM) version | 2.0 |
| BIOS type | UEFI AMI |
| Audio output channels | 2.0 channels |
| Harmonized System (HS) code | 84733080 |
| Audio chip | Realtek ALC662 |
| Operating system | N |
| Trusted Platform Module (TPM) | Y |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Y |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Country of origin | China |
| Power | |
| Power supply | 65 W |
| Power supply type | External AC adapter |
| Number of power supply units | 1 |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Memory | |
| Memory slots type | SO-DIMM |
| Maximum internal memory | 32 GB |
| Number of memory slots | 2 |
| Non-ECC | Y |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133.2400 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual |
| Audio | |
| Built-in speaker(s) | N |
Trenutno nema sadržaja u ovom odeljku.

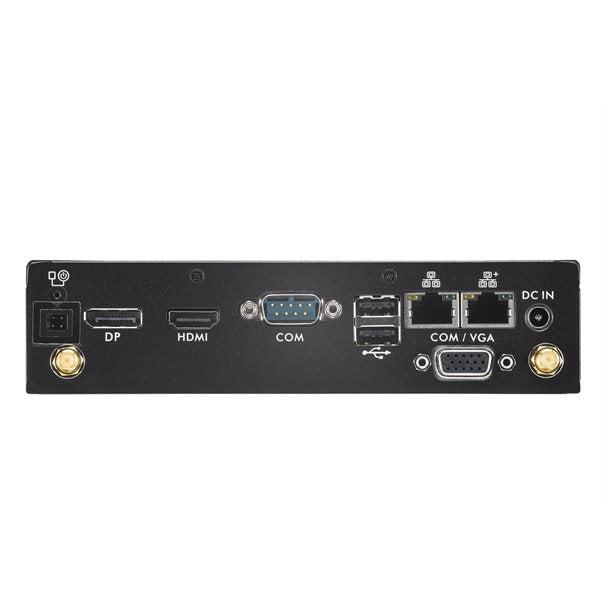

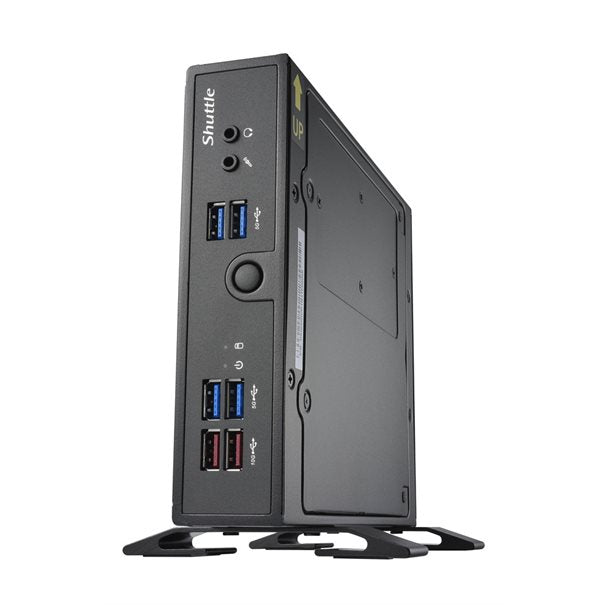

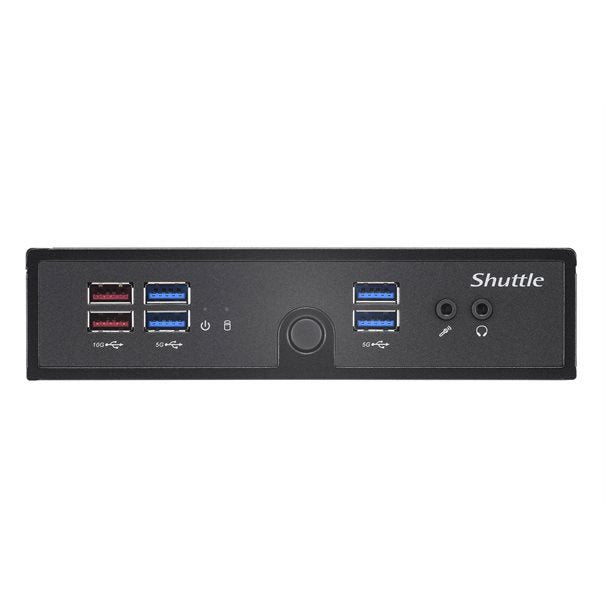

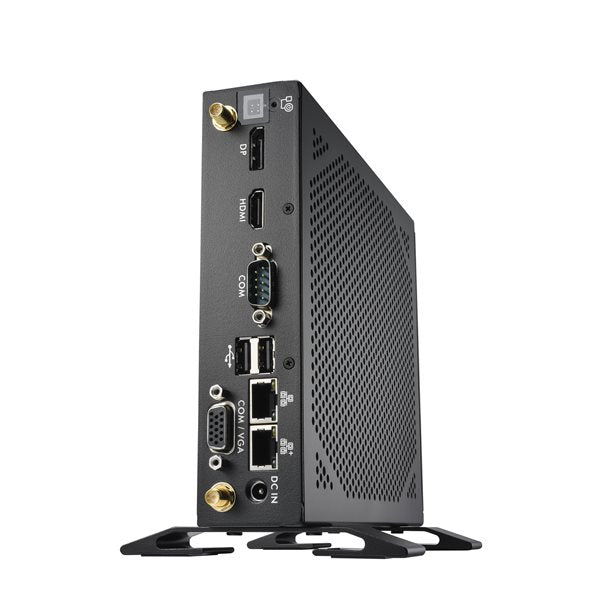

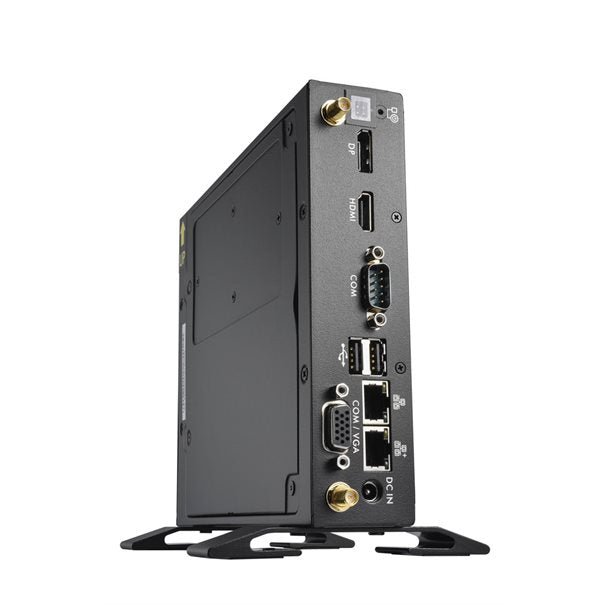

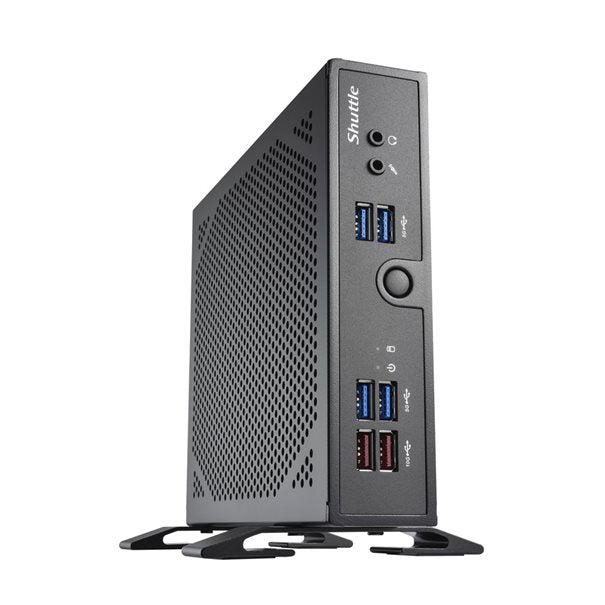

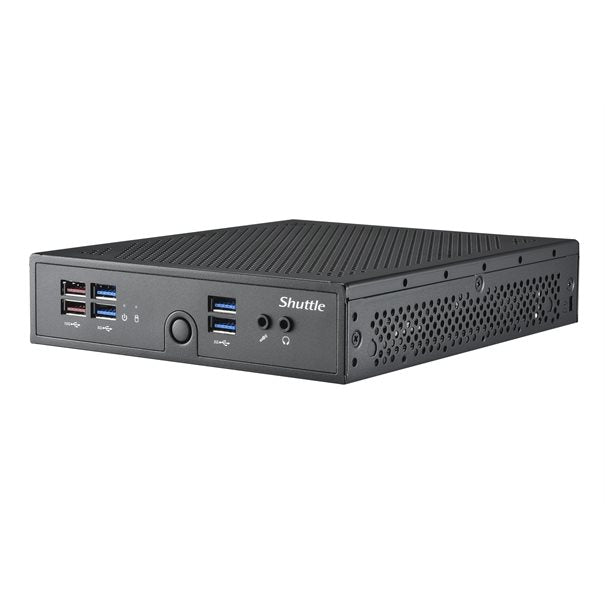

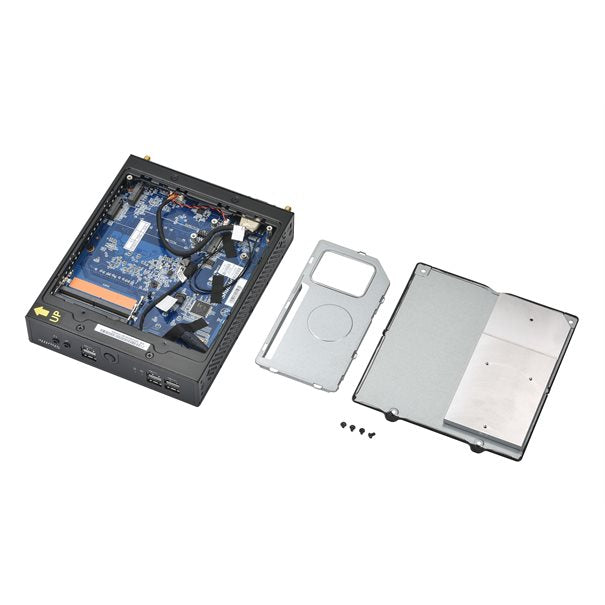

Shuttle Barebone DS50U5 Black (Core i5-1335U) fanless Fanless 24-7 ready, w/o WLAN
Regularna cena
90,400.00 RSD
