Opis
General
Processor model Intel Core i5 (12. Gen.) 12400 / 18 MB Intel Smart Cache, max. Turbo-Frequency 4.4 GHz)
Operating system Windows 11 Pro
Software
Pre-installed software 1 month trial version for new Microsoft® 365 user
Processor
Processor family Core i5
Processor cores Hexa-Core (6 Core)
Processor socket FCLGA1700 Socket
Number of processors 1
Memory
Internal memory 8 GB
Memory layout (slots x size) 1 x 8 GB
Maximum internal memory 64 GB
Memory clock speed PC4800 MHz
Internal memory type DDR5 SDRAM
Memory slots 2 pc(s)
Memory form factor SO DIMM, 260-PIN
Storage
Total storage capacity 500 GB
HDD interface 2x M.2 (2280) PCIe/NVMe Gen4
1x 2.5" SATA 6Gb/s (max 7mm height)
RAID levels No Raid support
Card reader integrated Not available
SSD interface PCIe (NVMe)
SSD capacity 500 GB
HDD capacity 1 x 500 GB - SSD
Number of storage drives supported 2
Storage media SSD M.2
Performance
Series Business
Noise level 21.7 dB(A) Idle mode fan speed 2100 rpm, 31.5 dB(A) Operation mode fan speed 2900 rpm, measuring distance according to DIN EN ISO 7779: 0.5m
Motherboard chipset Intel B760
Audio system High Definition Audio
Design
Chassis type Mini format
Certification ISO 9001, Assembled in Germany
Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
24-7 ready (temporary fan-maintance required)
Keyboard form factor Option. Keyboard not included
Technical details
Localization International
Field of use Digital Signage
Packaging content
Included Accessories Quick Install Guide (DE/ EN/ FR), Driver CD, PSU, WiFi Antenna, stand, VESA Mounting Kit incl. screws
Keyboard language Option. Keyboard not included
Weight & dimensions
Height 4.2 cm
Width 17.5 cm
Depth 17.5 cm
Weight 1185 g
Other features
Interface Front: 2x USB 3.2 Type-A, 1x USB 3.2 Type-C, 2x USB 2.0 Type-A, 1x Audio
Rear: 2x USB 3.2 Type-A, 1x USB 2.0 Type-A. 1x LAN, DC-in, 2x DP 1.4, 1x HDMI (exchangeable with COM or 2nd LAN port), 1x Kensington Lock, 1x WiFi Antennen Port
Compatible operating systems Windows 10, Windows 11
Cooling type Active
Special features 1 watt internal speaker
Secure Boot
TPM 2.0
Microsoft Autopilot-ready
Barbone MIL-STD-810H
Barebone 24-7 ready
Option: Dust filter
Mouse
Mouse included Optional
Graphics
On-board graphics adapter memory Dynamic
On-board graphics adapter maximum resolution HDMI 4096x2160 @ 60Hz (4K), Display Port3840x2160 @ 60Hz (4K)
Graphics card Intel UHD Graphics 730 (1130 MHz)
On-board graphics card model Intel UHD Graphics 730 (1130 MHz)
Graphics adapter ports 2x Display Port 1.2, 1x HMDI 2.0
Supports Triple-Monitoring
Power
Power source External fanless power supply
Efficiency : > 87%
Maximum input power 150 Watt
Nominal power Ø 10 Watt Long Idle-Mode
Ø 45 kWh a year (TEC = Typical Energy Consumption)
Further information regarding Energy consumption see https://www.wortmann.de/green and/ or Quicklinks for this product (if available)
AC adapter input voltage AC 100/240 V ( 50/60 Hz )
Operational conditions
Operating temperature (T-T) 5 °C - 50 °C
Note: In environments with an operating temperature above 40°, SSD-drives and SO-DIMM-memories with an advanced range of temperature are recommended!
Maximum operating temperature range (T-T) 50 °C
Note: In environments with an operating temperature above 40°, SSD-drives and SO-DIMM-memories with an advanced range of temperature are recommended!
Recommended humidity operating range 10 - 80% (non-condensing)
Network
Ethernet LAN Netzwerkadapter - integriert
LAN controller Intel I219V, WOL/PXE
Wi-Fi standards Intel AX211 Wi-Fi 6E (802.11ax)
Bluetooth 5.3
Data link protocols Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gb Ethernet, IEEE 802.11ax
Bluetooth 5.3
Optical drive
Optical drive type None
Input device
Device interface USB
Note: Keyboard not included

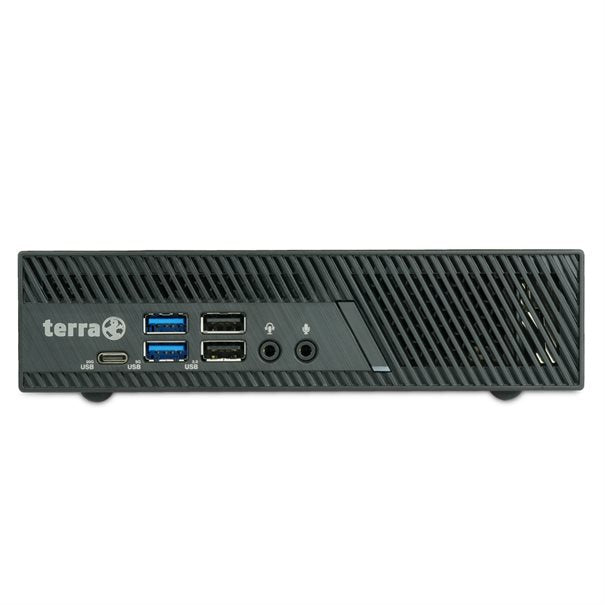

TERRA PC-Mini 6000V6.1 SILENT GREENLINE

Regularna cena 82,400.00 RSD

Ostvarite popust od 3% kada plaćate gotovinom u našoj prodavnici.
Kontaktirajte Nas

Šifra proizvoda:

1009972
