| Product | |
| Name | AMD Radeon™ RX 9070 |
| Architecture | AMD RDNA™ 4 |
| Game Index | 4K |
| Engine Clocks | |
| Boost Clock | Up to 2700 MHz |
| Game Clock | Up to 2210 MHz |
| Notes | Boost Clock is the maximum frequency achievable on the GPU for burst workloads and varies with thermals/workload. Game Clock is the expected typical gaming frequency at reference TGP; results vary by title. |
| Compute | |
| Stream Processors | 3584 |
| Compute Units | 56 (3rd Gen RT + 2nd Gen AI Accelerators) |
| Ray Accelerators | 56 |
| AI Accelerators | 112 |
| Infinity Cache | 64 MB |
| Memory | |
| Size / Type | 16 GB GDDR6 |
| Bus | 256-bit |
| Effective Clock | 20 Gbps |
| Display & Outputs | |
| Max Displays | 4 |
| Max Resolution | HDMI®: 7680×4320, DisplayPort™ 2.1a: 7680×4320 |
| Outputs | 2 × HDMI®, 2 × DisplayPort™ 2.1a |
| Interface & BIOS | |
| Bus Interface | PCI Express® 5.0 ×16 |
| BIOS Support | UEFI |
| Cooling & Form Factor | |
| Cooler | Tri-X Cooling, AeroCurve Fan Blades, Free Flow, Integrated Cooling Module |
| Heatsink | Optimized Composite Heatpipes, High TG Copper PCB |
| Fan Bearings | Two-Ball Bearing |
| Frame | Cold Rolled Steel Frame, Metal Backplate, ARGB Light Bar |
| Form Factor | ATX, 3.2-slot |
| Dimensions | 330.8 (L) × 128.5 (W) × 65.68 (H) mm |
| Power | |
| Board Power | 245 W (Typical) |
| Recommended PSU | Minimum 650 W |
| Power Connectors | 12V-2x6 (H++) (adapter included for 3 × 8-pin PCIe) |
| SAPPHIRE Features | |
| Cooling & Build | Honeywell PTM7950 TIM, Tri-X Cooling, AeroCurve blades, Free Flow, Cold Rolled Steel Frame, High TG Copper PCB, Optimized heatpipes, Metal backplate |
| Design & RGB | ARGB Light Bar, External RGB MB Sync, Glow!, Quick Connect MagniPlate, Stealth Hidden Power Cable |
| Power & Control | Premium 14-Phase Digital Power, Fuse Protection, Intelligent & Precision Fan Control |
| Software | TriXX Boost, TriXX suite (Fan Check, Perf vs Efficiency Quicksets) |
| Accessories | L-Shape Support Bracket, 3-pin 5V ARGB Cable, Magnetic Backplate, 12V-2x6(H++) to 3×8-pin adapter |
| AMD Features | |
| Display & Media | DisplayPort™ 2.1a, Radiance Display™ Engine, AV1 Encode/Decode |
| Software & Tech | AMD HYPR-RX with AFMF 2, FSR 4 with AI Upscaling, Fluid Motion Frames 2, Anti-Lag 2, Noise Suppression, Adrenalin Edition™ |
| APIs | DirectX® 12 Ultimate, Vulkan®, FidelityFX™ suite |
| OS & System Requirements | |
| Operating Systems | Windows® 10/11 64-bit, Linux® |
| System Requirements | PCIe® x16 slot, 12V-2x6 power (or 3×8-pin via adapter), ≥8 GB RAM (16 GB recommended) |
Pređite na informacije o proizvodu
Opis
| Product | |
| Name | AMD Radeon™ RX 9070 |
| Architecture | AMD RDNA™ 4 |
| Game Index | 4K |
| Engine Clocks | |
| Boost Clock | Up to 2700 MHz |
| Game Clock | Up to 2210 MHz |
| Notes | Boost Clock is the maximum frequency achievable on the GPU for burst workloads and varies with thermals/workload. Game Clock is the expected typical gaming frequency at reference TGP; results vary by title. |
| Compute | |
| Stream Processors | 3584 |
| Compute Units | 56 (3rd Gen RT + 2nd Gen AI Accelerators) |
| Ray Accelerators | 56 |
| AI Accelerators | 112 |
| Infinity Cache | 64 MB |
| Memory | |
| Size / Type | 16 GB GDDR6 |
| Bus | 256-bit |
| Effective Clock | 20 Gbps |
| Display & Outputs | |
| Max Displays | 4 |
| Max Resolution | HDMI®: 7680×4320, DisplayPort™ 2.1a: 7680×4320 |
| Outputs | 2 × HDMI®, 2 × DisplayPort™ 2.1a |
| Interface & BIOS | |
| Bus Interface | PCI Express® 5.0 ×16 |
| BIOS Support | UEFI |
| Cooling & Form Factor | |
| Cooler | Tri-X Cooling, AeroCurve Fan Blades, Free Flow, Integrated Cooling Module |
| Heatsink | Optimized Composite Heatpipes, High TG Copper PCB |
| Fan Bearings | Two-Ball Bearing |
| Frame | Cold Rolled Steel Frame, Metal Backplate, ARGB Light Bar |
| Form Factor | ATX, 3.2-slot |
| Dimensions | 330.8 (L) × 128.5 (W) × 65.68 (H) mm |
| Power | |
| Board Power | 245 W (Typical) |
| Recommended PSU | Minimum 650 W |
| Power Connectors | 12V-2x6 (H++) (adapter included for 3 × 8-pin PCIe) |
| SAPPHIRE Features | |
| Cooling & Build | Honeywell PTM7950 TIM, Tri-X Cooling, AeroCurve blades, Free Flow, Cold Rolled Steel Frame, High TG Copper PCB, Optimized heatpipes, Metal backplate |
| Design & RGB | ARGB Light Bar, External RGB MB Sync, Glow!, Quick Connect MagniPlate, Stealth Hidden Power Cable |
| Power & Control | Premium 14-Phase Digital Power, Fuse Protection, Intelligent & Precision Fan Control |
| Software | TriXX Boost, TriXX suite (Fan Check, Perf vs Efficiency Quicksets) |
| Accessories | L-Shape Support Bracket, 3-pin 5V ARGB Cable, Magnetic Backplate, 12V-2x6(H++) to 3×8-pin adapter |
| AMD Features | |
| Display & Media | DisplayPort™ 2.1a, Radiance Display™ Engine, AV1 Encode/Decode |
| Software & Tech | AMD HYPR-RX with AFMF 2, FSR 4 with AI Upscaling, Fluid Motion Frames 2, Anti-Lag 2, Noise Suppression, Adrenalin Edition™ |
| APIs | DirectX® 12 Ultimate, Vulkan®, FidelityFX™ suite |
| OS & System Requirements | |
| Operating Systems | Windows® 10/11 64-bit, Linux® |
| System Requirements | PCIe® x16 slot, 12V-2x6 power (or 3×8-pin via adapter), ≥8 GB RAM (16 GB recommended) |
Trenutno nema sadržaja u ovom odeljku.

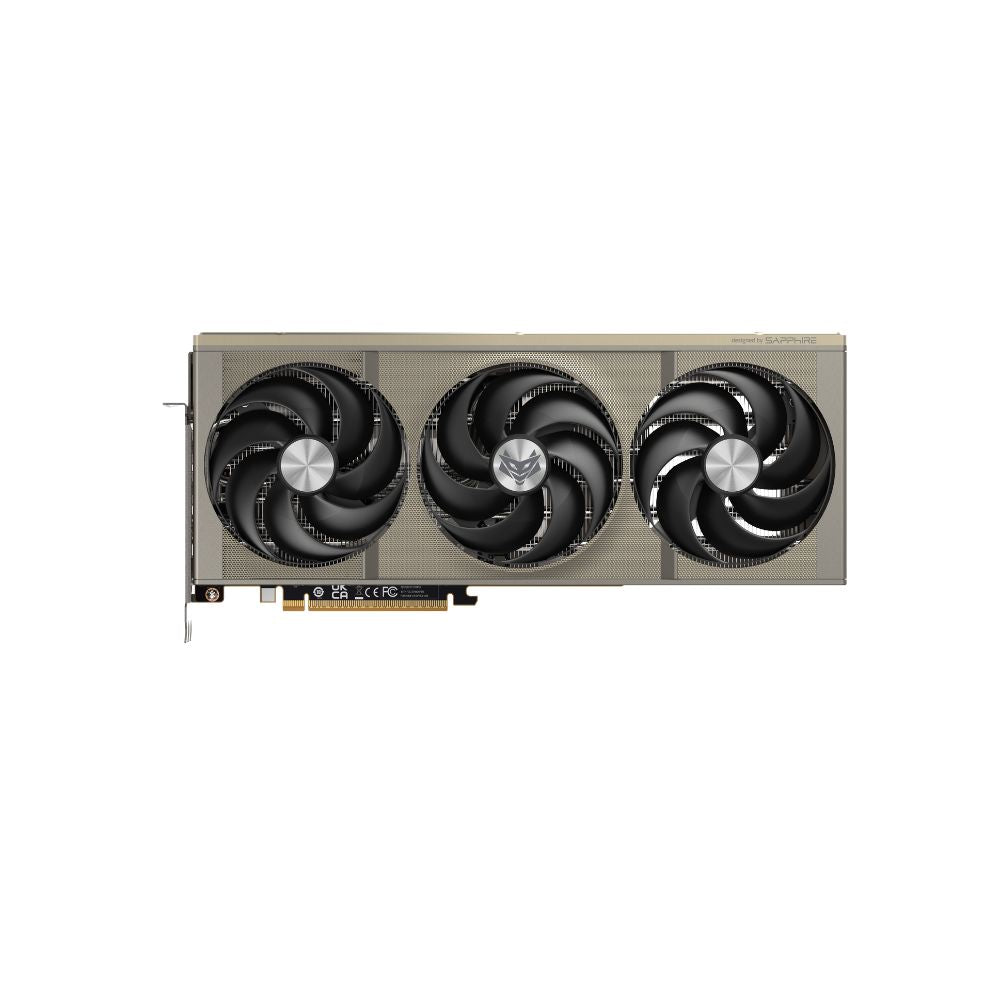

Sapphire NITRO+ AMD RADEON RX 9070 GAMING OC 16GB
Regularna cena
81,800.00 RSD
