| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets, up to 256 GB Dual channel, ECC/Non-ECC Un-buffered DIMM support Supports up to DDR5-8266 (OC) |
| Onboard Graphics | 1 x HDMI (4096x2160@60Hz, HDMI 2.1) 1 x DisplayPort (4096x2304@60Hz, DP 1.2) HDCP 2.3 supported |
| Audio | Realtek® ALC1220-VB CODEC High Definition Audio, DSD audio support 2/4/5.1/7.1-channel support, S/PDIF Out |
| LAN | Intel® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Supports Wi-Fi 7 + Bluetooth 5.3 via multiple modules (MediaTek MT7927 / Intel BE200 / Qualcomm QCNCM865) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (CPU) 2 x PCIe 4.0 x4 slots (Chipset) |
| Storage | 1 x M.2 PCIe 4.0 x4/x2 (CPU) 2 x M.2 PCIe 4.0 x4/x2 (Chipset) 1 x M.2 SATA/PCIe 4.0 x4 (Chipset) 6 x SATA 6Gb/s RAID 0, 1, 5, 10 for NVMe and SATA |
| USB | 1 x USB-C 3.2 Gen 2x2 (rear) 1 x USB-C 3.2 Gen 2 (internal) 2 x USB-A 3.2 Gen 2 (rear) 5 x USB 3.2 Gen 1 (3 rear, 2 internal) 8 x USB 2.0 (4 rear, 4 internal) |
| Internal I/O | 24-pin ATX, 2 x 8-pin ATX 12V CPU/water pump/system fan headers 3 x ARGB Gen2, 1 x RGB 4 x M.2, 6 x SATA USB headers (C, 3.2 Gen 1, 2.0) Thunderbolt™, TPM, audio, front panel |
| Back Panel I/O | 1 x USB-C 3.2 Gen 2x2 2 x USB-A 3.2 Gen 2 3 x USB 3.2 Gen 1 4 x USB 2.0 2 x SMA antenna, HDMI, DP, RJ-45 Optical S/PDIF, 2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Monitoring | Voltage, temperature, fan speed, water cooling flow rate Fan fail warning, fan/pump speed control |
| BIOS | 256 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, ACPI 5.0, SM BIOS 2.7 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus, Smart Backup |
| Software | Norton® Internet Security OEM LAN bandwidth management software |
| OS Support | Windows 11 64-bit |
| Form Factor | ATX (30.5cm x 24.4cm) |
Pređite na informacije o proizvodu
Opis

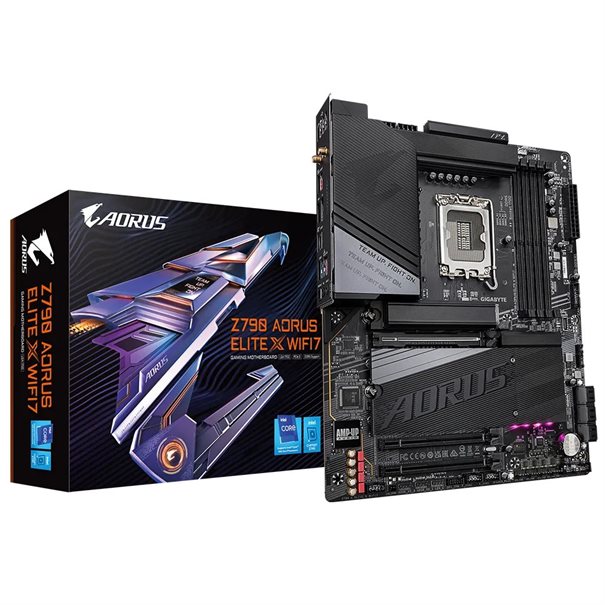

GIGA Z790 AORUS ELITE X WIFI7 S1700/DDR5/ATX
Snižena cena
38,990.00 RSD
Regularna cena
40,100.00 RSD
Ostvarite popust od 3% kada plaćate gotovinom u našoj prodavnici.
Kontaktirajte Nas
Šifra proizvoda:
2120821
Odmah dostupno
| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets, up to 256 GB Dual channel, ECC/Non-ECC Un-buffered DIMM support Supports up to DDR5-8266 (OC) |
| Onboard Graphics | 1 x HDMI (4096x2160@60Hz, HDMI 2.1) 1 x DisplayPort (4096x2304@60Hz, DP 1.2) HDCP 2.3 supported |
| Audio | Realtek® ALC1220-VB CODEC High Definition Audio, DSD audio support 2/4/5.1/7.1-channel support, S/PDIF Out |
| LAN | Intel® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Supports Wi-Fi 7 + Bluetooth 5.3 via multiple modules (MediaTek MT7927 / Intel BE200 / Qualcomm QCNCM865) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (CPU) 2 x PCIe 4.0 x4 slots (Chipset) |
| Storage | 1 x M.2 PCIe 4.0 x4/x2 (CPU) 2 x M.2 PCIe 4.0 x4/x2 (Chipset) 1 x M.2 SATA/PCIe 4.0 x4 (Chipset) 6 x SATA 6Gb/s RAID 0, 1, 5, 10 for NVMe and SATA |
| USB | 1 x USB-C 3.2 Gen 2x2 (rear) 1 x USB-C 3.2 Gen 2 (internal) 2 x USB-A 3.2 Gen 2 (rear) 5 x USB 3.2 Gen 1 (3 rear, 2 internal) 8 x USB 2.0 (4 rear, 4 internal) |
| Internal I/O | 24-pin ATX, 2 x 8-pin ATX 12V CPU/water pump/system fan headers 3 x ARGB Gen2, 1 x RGB 4 x M.2, 6 x SATA USB headers (C, 3.2 Gen 1, 2.0) Thunderbolt™, TPM, audio, front panel |
| Back Panel I/O | 1 x USB-C 3.2 Gen 2x2 2 x USB-A 3.2 Gen 2 3 x USB 3.2 Gen 1 4 x USB 2.0 2 x SMA antenna, HDMI, DP, RJ-45 Optical S/PDIF, 2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Monitoring | Voltage, temperature, fan speed, water cooling flow rate Fan fail warning, fan/pump speed control |
| BIOS | 256 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, ACPI 5.0, SM BIOS 2.7 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus, Smart Backup |
| Software | Norton® Internet Security OEM LAN bandwidth management software |
| OS Support | Windows 11 64-bit |
| Form Factor | ATX (30.5cm x 24.4cm) |
Trenutno nema sadržaja u ovom odeljku.
GIGA Z790 AORUS ELITE X WIFI7 S1700/DDR5/ATX
Snižena cena
38,990.00 RSD
Regularna cena
40,100.00 RSD
