Opis
Processor
Processor manufacturer AMD
Compatible processor series AMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Maximum internal memory supported by processor 192 GB
Processor socket Socket AM5
Supported processor sockets Socket AM5
Memory
Memory slots type DIMM
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Maximum internal memory 192 GB
Number of memory slots 4
Non-ECC Yes
Supported memory clock speed (max) 7600 MHz
Supported memory clock speeds 7600. 7200. 7000. 6800. 6600. 6400. 6200. 6000. 5600. 5200. 4800. 4400 MHz
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Unbuffered memory Yes
Network
Ethernet LAN Yes
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Ethernet interface Gigabit Ethernet
Technical details
Vendor Gigabyte
Warranty period 3 year(s)
Packaging content
Cables included SATA
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Batteries included Yes
Expansion slots
Number of M.2 (M) slots 3
PCI Express x16 slots 3
BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
ACPI version 5.0
Clear CMOS button Yes
Clear CMOS jumper Yes
Weight & dimensions
Height 35 mm
Width 305 mm
Depth 244 mm
Battery
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery 0.0700 g
Battery weight 3 g
Battery type CR2032
Graphics
Maximum resolution 4096 x 2160 pixels
Parallel processing technology support Not supported
HDCP Yes
Features
Motherboard form factor ATX
Product colour Black
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Motherboard chipset AMD B650
Cooling type Active
PC health monitoring Fan, Temperature, Voltage, Water cooling
Windows operating systems supported Windows 10 x64, Windows 11 x64
Power source type ATX
Motherboard chipset family AMD
Component for PC
Logistics data
Products per shipping (inner) case 1 pc(s)
Country of origin China
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Front panel connector Yes
12V power connector Yes
USB 2.0 connectors 3
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
TPM connector Yes
RGB LED pin header Yes
EPS power connector (8-pin) Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Serial port headers 1
Rear panel I/O ports
DisplayPort version 1.4
USB connector type USB Type-A, USB Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 2.0 ports quantity 6
Ethernet LAN (RJ-45) ports 1
Headphone outputs 3
Microphone in Yes
WiFi-AP antenna jack 2
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
Storage controllers
RAID levels 0, 1, 10
Supported storage drive types HDD & SSD
Storage interfaces M.2, PCI Express 4.0, SATA III
Number of HDDs supported 1
RAID support Yes
Number of storage drives supported 5
Packaging data
Package depth 270 mm
Package height 80 mm
Package width 335 mm
Package weight 1740 g

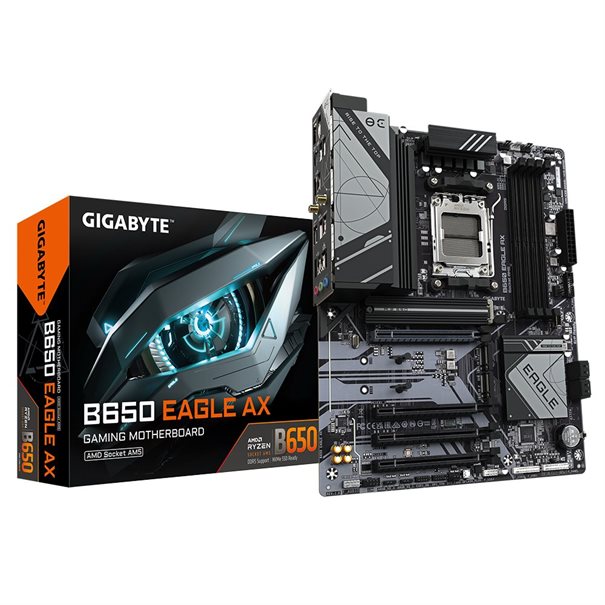

GIGA B650 EAGLE AX AM5/DDR5/ATX

Regularna cena 21,800.00 RSD

Ostvarite popust od 3% kada plaćate gotovinom u našoj prodavnici.
Kontaktirajte Nas

Šifra proizvoda:

2120833

Processor
Processor manufacturer AMD
Compatible processor series AMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Maximum internal memory supported by processor 192 GB
Processor socket Socket AM5
Supported processor sockets Socket AM5
Memory
Memory slots type DIMM
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Maximum internal memory 192 GB
Number of memory slots 4
Non-ECC Yes
Supported memory clock speed (max) 7600 MHz
Supported memory clock speeds 7600. 7200. 7000. 6800. 6600. 6400. 6200. 6000. 5600. 5200. 4800. 4400 MHz
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Unbuffered memory Yes
Network
Ethernet LAN Yes
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Ethernet interface Gigabit Ethernet
Technical details
Vendor Gigabyte
Warranty period 3 year(s)
Packaging content
Cables included SATA
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Batteries included Yes
Expansion slots
Number of M.2 (M) slots 3
PCI Express x16 slots 3
BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
ACPI version 5.0
Clear CMOS button Yes
Clear CMOS jumper Yes
Weight & dimensions
Height 35 mm
Width 305 mm
Depth 244 mm
Battery
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery 0.0700 g
Battery weight 3 g
Battery type CR2032
Graphics
Maximum resolution 4096 x 2160 pixels
Parallel processing technology support Not supported
HDCP Yes
Features
Motherboard form factor ATX
Product colour Black
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Motherboard chipset AMD B650
Cooling type Active
PC health monitoring Fan, Temperature, Voltage, Water cooling
Windows operating systems supported Windows 10 x64, Windows 11 x64
Power source type ATX
Motherboard chipset family AMD
Component for PC
Logistics data
Products per shipping (inner) case 1 pc(s)
Country of origin China
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Front panel connector Yes
12V power connector Yes
USB 2.0 connectors 3
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
TPM connector Yes
RGB LED pin header Yes
EPS power connector (8-pin) Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Serial port headers 1
Rear panel I/O ports
DisplayPort version 1.4
USB connector type USB Type-A, USB Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 2.0 ports quantity 6
Ethernet LAN (RJ-45) ports 1
Headphone outputs 3
Microphone in Yes
WiFi-AP antenna jack 2
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
Storage controllers
RAID levels 0, 1, 10
Supported storage drive types HDD & SSD
Storage interfaces M.2, PCI Express 4.0, SATA III
Number of HDDs supported 1
RAID support Yes
Number of storage drives supported 5
Packaging data
Package depth 270 mm
Package height 80 mm
Package width 335 mm
Package weight 1740 g
