Opis
Processor
Processor manufacturer AMD
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket LGA 1700
Supported processor sockets LGA 1700
Memory
Memory slots type DIMM
Maximum internal memory 128 GB
Number of memory slots 4
Non-ECC Y
Supported memory clock speed (max) 7800 MHz
Supported memory clock speeds 4800.5000.5200.5400.5600.5800.6000.6200.6400.6600.6800.7000.7200.7400.7600.7800 MHz
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Unbuffered memory Y
Network
Ethernet LAN Y
Bluetooth 5.3 Y
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Y
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet interface 2.5 Gigabit Ethernet
Technical details
Vendor Asustek
Packaging content
Cables included SATA
Drivers included Y
User guide Y
Expansion slots
PCI Express x1 (Gen 3.x) slots 1
Number of M.2 (M) slots 4
PCI Express x16 (Gen 4.x) slots 2
PCI Express x16 (Gen 5.x) slots 1
BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Clear CMOS button Y
Weight & dimensions
Width 305 mm
Depth 244 mm
Other features
Back-to-BIOS button Y
Graphics
Parallel processing technology support Not supported
Features
Motherboard form factor ATX
Audio output channels 7.1 channels
Audio chip Realtek ALC4080
Motherboard chipset Intel Z790
Windows operating systems supported Windows 10, Windows 11
Power source type ATX
Motherboard chipset family Intel
Component for PC
Internal I/O
Thunderbolt headers 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
12V power connector Y
USB 2.0 connectors 2
CPU fan connector Y
ATX Power connector (24-pin) Y
Number of chassis fan connectors 5
Front panel audio connector Y
RGB LED pin header Y
EPS power connector (8-pin) Y
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Rear panel I/O ports
DisplayPort version 1.4
Line-in Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 2.0 ports quantity 2
Ethernet LAN (RJ-45) ports 1
Headphone outputs 1
Microphone in Y
S (B 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - B 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - B 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - B 2.0 ports quantity - PDIF out port - B 3.2 Gen 2x2 Type-C ports quantity) 4 - 2 - 1 - 2 - Y - 1
WiFi-AP antenna jack 2
HDMI ports quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
HDMI version 2.1
DisplayPorts quantity 1
Storage controllers
RAID levels 0, 1, 5, 10
Supported storage drive types HDD & SSD
Storage interfaces M.2, SATA III
RAID support Y
Packaging data
Package depth 293 mm
Package height 290 mm
Package width 368 mm
Package weight 2247 g

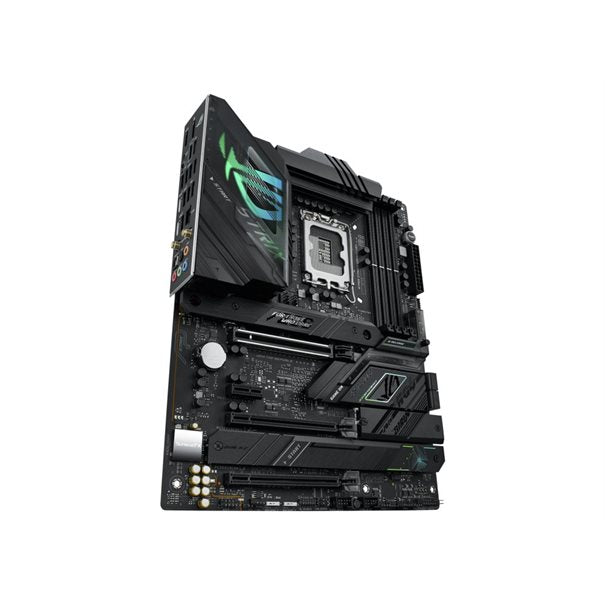

ASUS ROG STRIX Z790-F GAMING WIFI S1700/DDR5/ATX

Regularna cena 54,900.00 RSD
