| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Memory | |
| Memory slots type | DIMM |
| Maximum internal memory | 192 GB |
| Number of memory slots | 4 |
| Non-ECC | Yes |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Technical details | |
| Vendor | Asustek |
| Packaging content | |
| Cables included | SATA |
| User guide | Yes |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Other features | |
| Back-to-BIOS button | Yes |
| Weight | 820 g |
| Graphics | |
| Parallel processing technology support | Not supported |
| Features | |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel W680 |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Internal I/O | |
| Audio connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 3 |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Number of SAS ports | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2, NVMe, PCI Express 4.0, SATA III, SlimSAS |
| Number of HDDs supported | 8 |
| RAID support | Yes |
| Number of storage drives supported | 10 |
| Packaging data | |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package width | 275 mm |
| Package weight | 1350 g |
Pređite na informacije o proizvodu
Opis
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Memory | |
| Memory slots type | DIMM |
| Maximum internal memory | 192 GB |
| Number of memory slots | 4 |
| Non-ECC | Yes |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Technical details | |
| Vendor | Asustek |
| Packaging content | |
| Cables included | SATA |
| User guide | Yes |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Other features | |
| Back-to-BIOS button | Yes |
| Weight | 820 g |
| Graphics | |
| Parallel processing technology support | Not supported |
| Features | |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel W680 |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Internal I/O | |
| Audio connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 3 |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Number of SAS ports | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2, NVMe, PCI Express 4.0, SATA III, SlimSAS |
| Number of HDDs supported | 8 |
| RAID support | Yes |
| Number of storage drives supported | 10 |
| Packaging data | |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package width | 275 mm |
| Package weight | 1350 g |
Trenutno nema sadržaja u ovom odeljku.

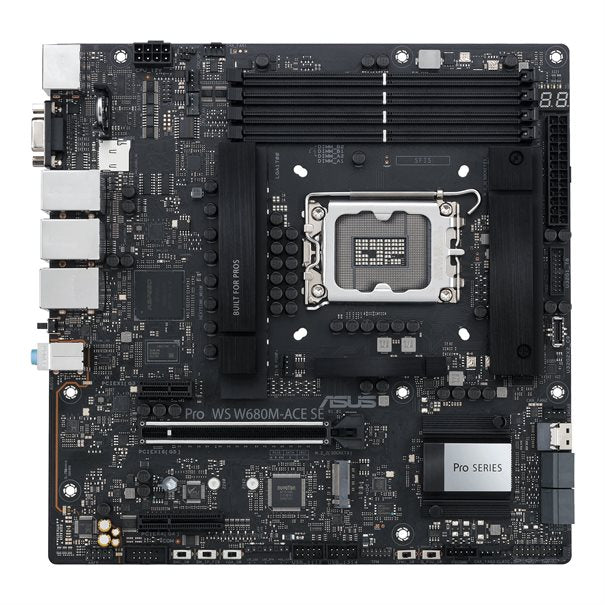

ASUS PRO WS W680M-ACE SE S1700/DDR5/DP-HDMI/3xLAN/24-7/µATX
Regularna cena
73,300.00 RSD
