| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Memory slots type | DIMM |
| Maximum internal memory | 96 GB |
| Number of memory slots | 2 |
| Non-ECC | Yes |
| Supported memory clock speed (max) | 6400 MHz |
| Supported memory clock speeds | 4800.5000.5200.5400.5600.5800.6000.6200.6400 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface | Gigabit Ethernet |
| Technical details | |
| Vendor | Asustek |
| Packaging content | |
| Cables included | SATA |
| User guide | Yes |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI slots | 1 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 224 mm |
| Graphics | |
| Parallel processing technology support | Not supported |
| Features | |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD A620 |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Component for | PC |
| Internal I/O | |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| PS (2 ports quantity) | 1 |
| Line-in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| COM ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 4 |
| Packaging data | |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package width | 270 mm |
| Package weight | 950 g |
Pređite na informacije o proizvodu
Opis
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Memory slots type | DIMM |
| Maximum internal memory | 96 GB |
| Number of memory slots | 2 |
| Non-ECC | Yes |
| Supported memory clock speed (max) | 6400 MHz |
| Supported memory clock speeds | 4800.5000.5200.5400.5600.5800.6000.6200.6400 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface | Gigabit Ethernet |
| Technical details | |
| Vendor | Asustek |
| Packaging content | |
| Cables included | SATA |
| User guide | Yes |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI slots | 1 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 224 mm |
| Graphics | |
| Parallel processing technology support | Not supported |
| Features | |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD A620 |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Component for | PC |
| Internal I/O | |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| PS (2 ports quantity) | 1 |
| Line-in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| COM ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 4 |
| Packaging data | |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package width | 270 mm |
| Package weight | 950 g |
Trenutno nema sadržaja u ovom odeljku.

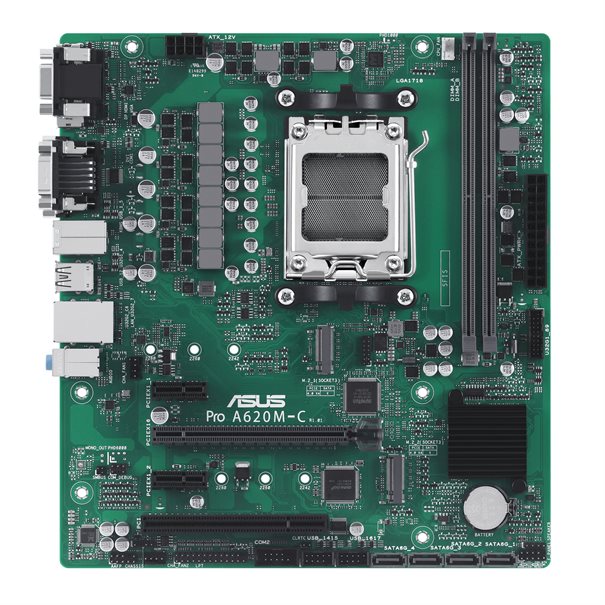

ASUS PRO A620M-C-CSM AM5 A620/HDMI-DP-DVI-VGA/2xM.2/µATX
Regularna cena
16,100.00 RSD
