Specifikacije proizvoda
| Processor | |
| Processor cores | 4 |
| Processor frequency | 2 GHz |
| Processor cache | 4 MB |
| Processor manufacturer | Intel |
| CPU configuration (max) | 1 |
| Thermal Design Power (TDP) | 15 W |
| Processor lithography | 10 nm |
| L3 cache | 4 MB |
| Processor family | Intel® Celeron® |
| Processor model | N5105 |
| Processor threads | 4 |
| Built-in processor | Yes |
| Processor boost frequency | 2.9 GHz |
| Network | |
| Ethernet LAN | Yes |
| Bluetooth | 5.0 Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9462 |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Design | |
| Chassis type | UCFF |
| Kensington Lock | Yes |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
| Product colour | Black |
| Status | Launched |
| Product series | Intel® NUC Kit with Intel® Celeron® Processors |
| ARK ID | 217669 |
| Housing material | Metal, Plastic |
| On (off switch) | Yes |
| Cooling type | Active |
| Storage | |
| Supported storage drive types | SSD |
| SSD form factor | M.2 |
| Number of storage drives supported | 1 |
| Storage drive sizes supported | M.2 " |
| Technical details | |
| Vendor | Asustek |
| Ports & interfaces | |
| DisplayPort version | 1.4 |
| USB ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| M.2 card slot (storage) | 1 |
| M.2 card slot (wireless) | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Weight & dimensions | |
| Height | 36 mm |
| Width | 135 mm |
| Depth | 115 mm |
| Other features | |
| Launch date | Q1'22 |
| DC input voltage | 19 V |
| Graphics | |
| Number of displays supported | 2 |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card model | Not available |
| On-board graphics card | No |
| Processor special features | |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology for Directed I (O (VT-d)) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Performance | |
| Compatible operating systems | Windows 10*|Linux* |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Windows operating systems supported | Windows 11, Windows 10 |
| Linux operating systems supported | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Power | |
| Power supply | 65 W |
| Power supply type | External AC adapter |
| Number of power supply units | 1 |
| AC adapter output voltage | 19 V |
| Memory | |
| Memory slots type | SO-DIMM |
| Maximum internal memory | 32 GB |
| ECC | No |
| Number of memory slots | 2 |
| Number of DIMM slots | 2 |
| Non-ECC | Yes |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2933 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Audio | |
| Built-in speaker(s) | No |

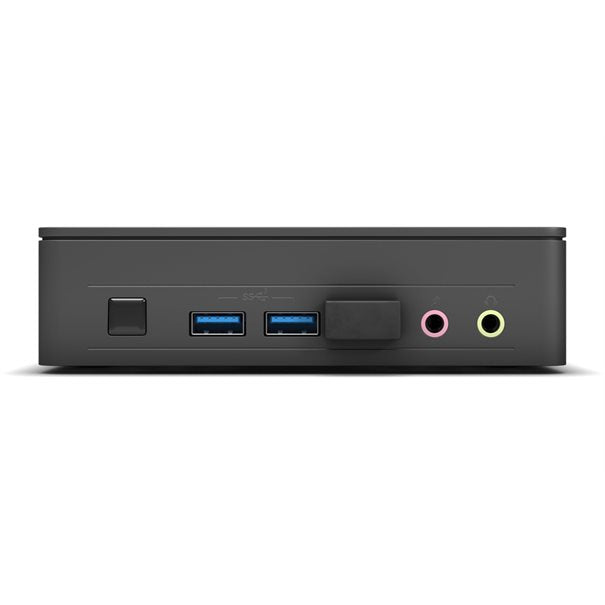

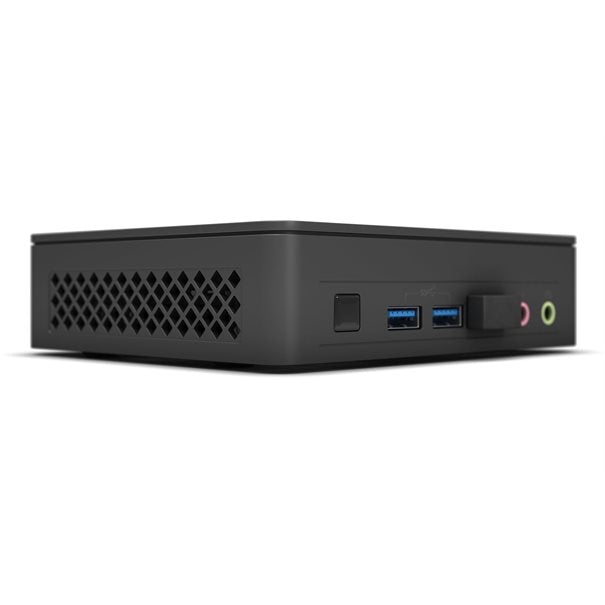

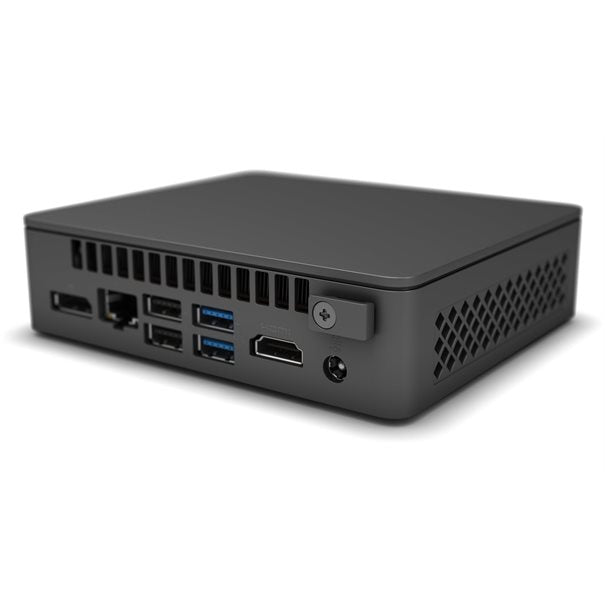

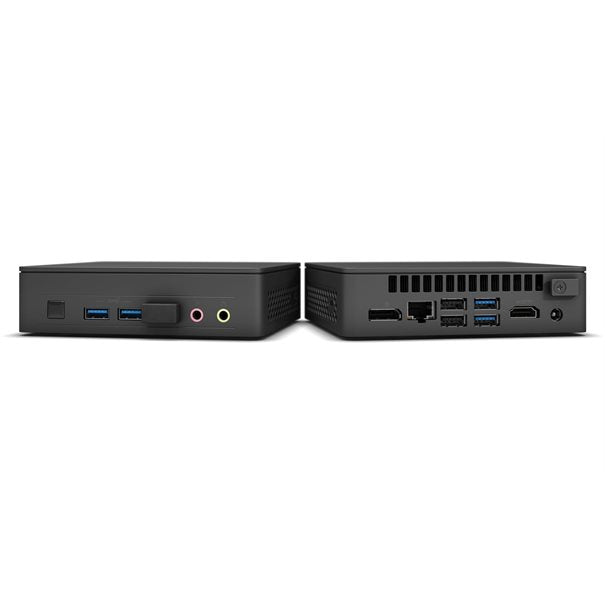

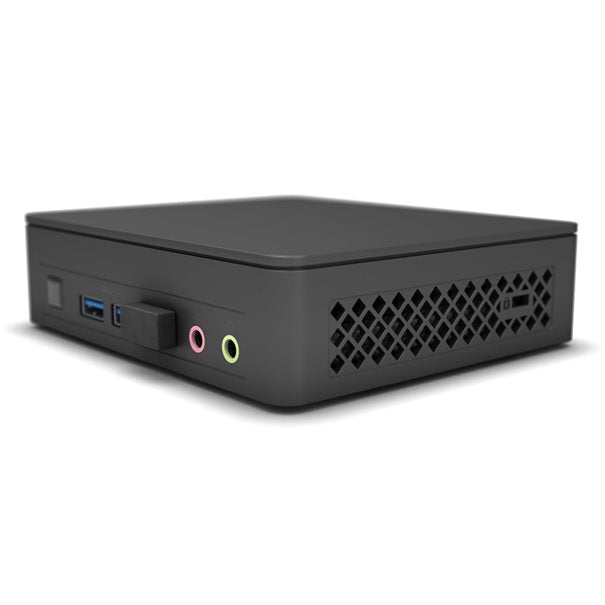

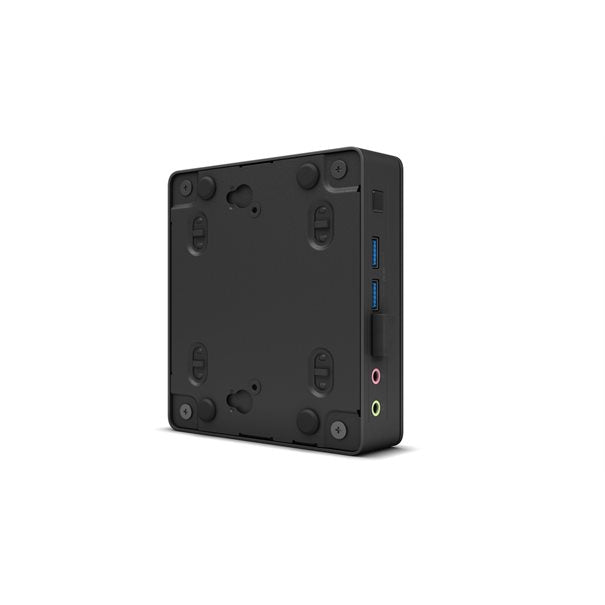

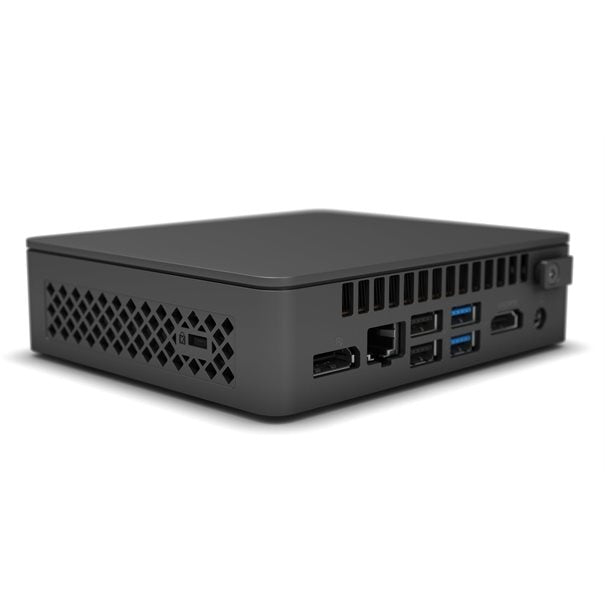

Asus NUC Barebone NUC11ATKC40000 Atlas Canyon Retail ohne/without Powercord
