| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Memory | |
| Memory slots type | DIMM |
| Maximum internal memory | 128 GB |
| Number of memory slots | 4 |
| Non-ECC | Y |
| Supported memory clock speed (max) | 4933 MHz |
| Supported memory clock speeds | 2133.2400.2666.2933.3000.3200.3300.3333.3400.3466.3600.3666.3733.3800.3866.4000.4133.4266.4300.4400.4500.4600.4700.4800.4933 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Y |
| Network | |
| Ethernet LAN | Y |
| Ethernet interface | 2.5 Gigabit Ethernet |
| Technical details | |
| Vendor | Gigabyte |
| Packaging content | |
| Bundled software | Norton Internet Security |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Y |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Graphics | |
| Number of displays supported | 4 |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| HDCP | Y |
| Features | |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Internal I/O | |
| Front panel connector | Y |
| USB 2.0 connectors | 2 |
| S (B 2.0 connectors - PDIF out connector - S power connector (8-pin) - B 3.2 Gen 1 (3.1 Gen 1) connectors - mber of SATA III connectors - rial port headers) | 2 - Y - Y - 1 - 4 - 1 |
| CPU fan connector | Y |
| ATX Power connector (24-pin) | Y |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Y |
| TPM connector | Y |
| RGB LED pin header | Y |
| EPS power connector (8-pin) | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Parallel connector | Y |
| Serial port headers | 1 |

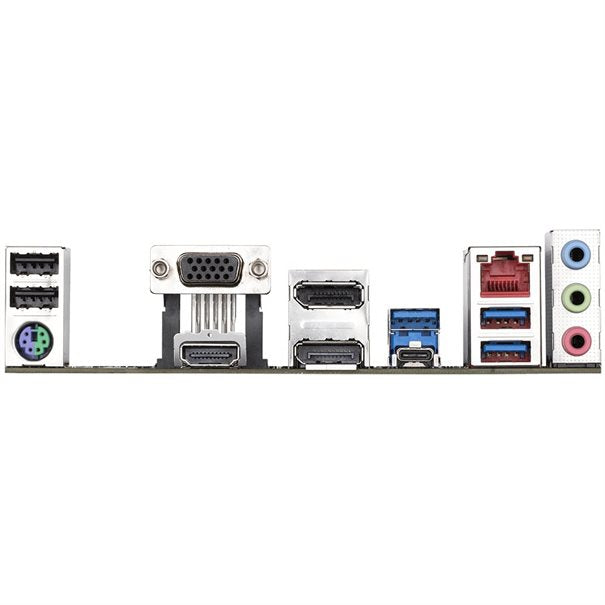

| Rear panel I/O ports | |
| PS (2 ports quantity) | 1 |
| Line-in | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2, SATA III |
| RAID support | Y |
| Number of storage drives supported | 6 |
Skip to product information
Description
Gigabyte B760M DS3H DDR4
Regular price
12,650.00 RSD
Save 3% by paying with cash in our store.
Contact Us
Šifra proizvoda:
2120783
Available now
