| X870E AORUS ELITE WIFI7 ICE | |
| Socket & Supported Processors | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | |
| Chipset Model | AMD X870E |
| Memory | |
| Supported Memory Types and Speeds | DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s |
| DIMM Slots & Capacity | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) |
| Memory Architecture | Dual channel memory architecture |
| Memory Module Support | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) modules |
| Note | CPU and memory configuration may affect supported memory types, speeds, and number of DRAM modules. Please refer to the "Memory Support List" on GIGABYTE's website for details. |
| Onboard Graphics | |
| Integrated Graphics & USB4 Controller | Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs, max resolution 3840x2160@240Hz * Supports DisplayPort 1.4 and HDR |
| HDMI Ports | - 1 x HDMI port supporting up to 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR) - 1 x front HDMI port supporting up to 1920x1080@30 Hz (HDMI 1.4) (Graphics specs vary depending on CPU support) Support for up to quad-display simultaneously |
| Audio | |
| Audio Codec | Realtek® ALC1220 CODEC |
| Audio Features | - Back panel line out jack supports DSD audio - High Definition Audio, 2/4/5.1/7.1-channel configurable via software - Support for S/PDIF Out |
| LAN & Wireless | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Module | Realtek® Wi-Fi 7 RTL8922AE - Wi-Fi standards a/b/g/n/ac/ax, supporting 2.4/5/6 GHz bands - Bluetooth 5.4 - Supports 11be 160MHz wireless standard * Wi-Fi 7 requires Windows 11 SV3; no driver support for Windows 10 ** 6 GHz Wi-Fi 7 availability depends on country regulations |
| Expansion Slots | |
| PCI Express Slots | CPU Integrated: - 1 x PCIe x16 slot (PCIEX16) * AMD Ryzen 9000/7000 support PCIe 5.0 x16 mode * M2B_CPU and M2C_CPU share bandwidth with PCIEX16; populating them limits PCIEX16 to x8 mode * Ryzen 8000 Series-Phoenix 1 supports PCIe 4.0 x8; Phoenix 2 supports PCIe 4.0 x4 Chipset: - 1 x PCIe x16 slot PCIe 4.0 running at x4 (PCIEX4_1) - 1 x PCIe x16 slot PCIe 3.0 running at x4 (PCIEX4_2) * PCIEX16 slot supports only graphics cards or NVMe SSDs. For a single graphics card, use PCIEX16 slot. |
| Storage Interface | |
| M.2 Connectors | - 1 x M.2 (M2A_CPU), CPU integrated, Socket 3, M key, types 25110/22110/2580/2280: Ryzen 9000/7000: PCIe 5.0 x4/x2 Ryzen 8000 Phoenix 1/2: PCIe 4.0 x4/x2 - 2 x M.2 (M2B_CPU, M2C_CPU), CPU integrated, Socket 3, M key, types 22110/2280: Ryzen 9000/7000: PCIe 5.0 x4/x2 * Unavailable on Ryzen 8000 Phoenix 1/2 CPUs - 1 x M.2 (M2D_SB), chipset integrated, Socket 3, M key, types 22110/2280 PCIe 4.0 x4/x2 SSDs |
| SATA Connectors | 4 x SATA 6Gb/s connectors RAID 0, 1, 5, 10 support for NVMe SSDs (RAID 5 only with Ryzen 9000) RAID 0, 1, 10 support for SATA devices |
| USB | |
| USB Ports | CPU + ASMedia USB4 Controller: - 2 x USB4® USB Type-C® ports (back panel) CPU: - 1 x USB 3.2 Gen 1 port (back panel) Chipset: - 1 x USB Type-C® (USB 3.2 Gen 2x2) via internal header - 2 x USB 3.2 Gen 2 Type-A ports (red, back panel) - 7 x USB 3.2 Gen 1 ports (3 back panel, 4 internal) - 8 x USB 2.0/1.1 ports (4 back panel, 4 internal) |
| Internal I/O Connectors | |
| Power & Cooling | - 1 x 24-pin ATX main power connector - 2 x 8-pin ATX 12V power connectors - 1 x CPU fan header - 1 x CPU fan/water cooling pump header - 3 x system fan headers - 1 x system fan/water cooling pump header |
| LED Headers | - 3 x addressable RGB Gen2 LED strip headers - 1 x RGB LED strip header |
| Storage & Expansion | - 4 x M.2 Socket 3 connectors - 4 x SATA 6Gb/s connectors |
| Front Panel & Audio | - 1 x front panel header - 1 x front panel audio header |
| USB Headers | - 1 x USB Type-C® header (USB 3.2 Gen 2x2) - 2 x USB 3.2 Gen 1 headers - 2 x USB 2.0/1.1 headers |
| Other Headers | - 1 x Trusted Platform Module header (for GC-TPM2.0 modules) - 1 x HDMI port (note: depends on CPU) - 1 x power button - 1 x reset button - 1 x reset jumper - 1 x Clear CMOS jumper |
| Back Panel Connectors | |

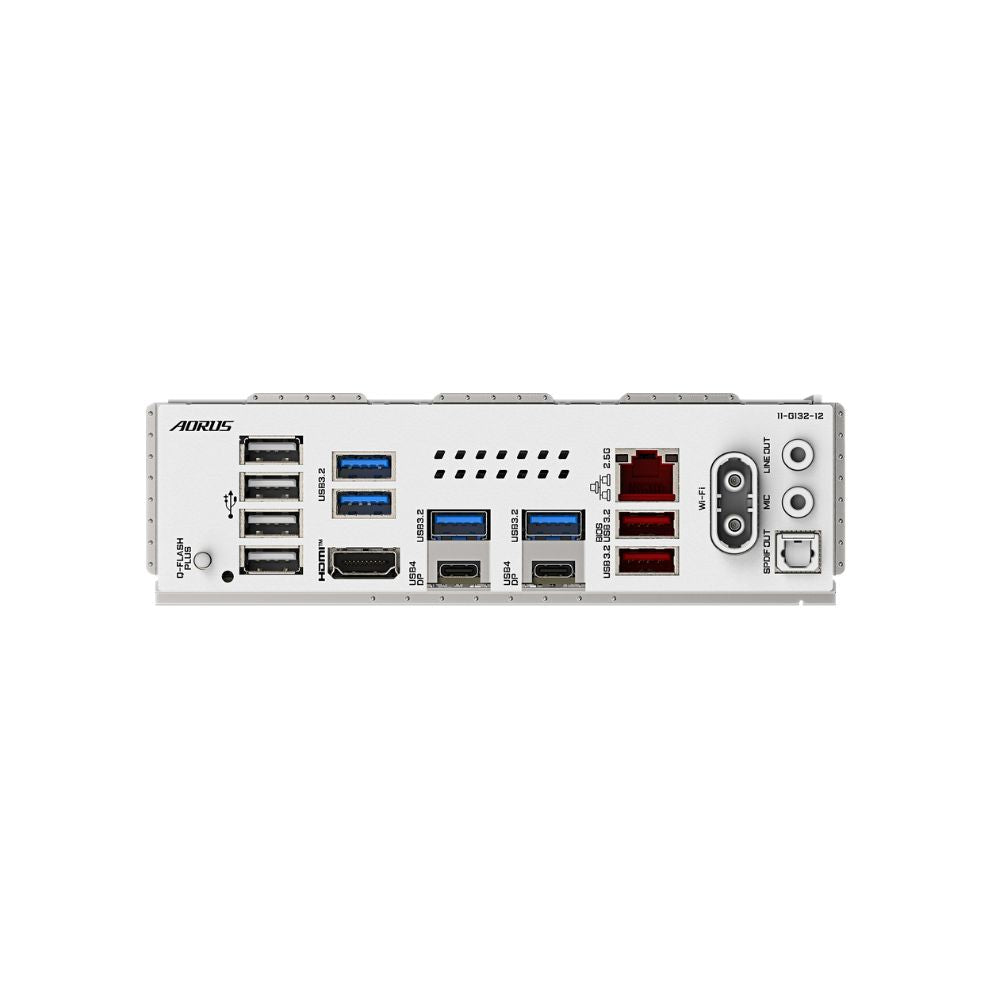

| Ports | - 1 x Q-Flash Plus button - 4 x USB 2.0/1.1 ports - 4 x USB 3.2 Gen 1 ports - 1 x HDMI port (note: depends on CPU) - 2 x USB4® USB Type-C® ports (DisplayPort support) - 1 x RJ-45 LAN port - 2 x USB 3.2 Gen 2 Type-A ports (red) - 2 x antenna connectors (2T2R) - 2 x audio jacks - 1 x optical S/PDIF Out connector |
| I/O Controller & Monitoring | |
| Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection Fan fail warning, fan speed control (depends on installed fan/pump) |
| BIOS | |
| Flash Memory | 1 x 256 Mbit flash |
| Type | Licensed AMI UEFI BIOS |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | |
| Software | Support for GIGABYTE Control Center (GCC) (application features vary by model) Support for Q-Flash and Q-Flash Plus Support for Smart Backup |
| Bundled Software | |
| Included Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | |
| OS Support | Windows 11 64-bit |
| Form Factor | |
| Dimensions | ATX Form Factor; 30.5 cm x 24.4 cm |
Skip to product information
Description
| X870E AORUS ELITE WIFI7 ICE | |
| Socket & Supported Processors | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | |
| Chipset Model | AMD X870E |
| Memory | |
| Supported Memory Types and Speeds | DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s |
| DIMM Slots & Capacity | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) |
| Memory Architecture | Dual channel memory architecture |
| Memory Module Support | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) modules |
| Note | CPU and memory configuration may affect supported memory types, speeds, and number of DRAM modules. Please refer to the "Memory Support List" on GIGABYTE's website for details. |
| Onboard Graphics | |
| Integrated Graphics & USB4 Controller | Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs, max resolution 3840x2160@240Hz * Supports DisplayPort 1.4 and HDR |
| HDMI Ports | - 1 x HDMI port supporting up to 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR) - 1 x front HDMI port supporting up to 1920x1080@30 Hz (HDMI 1.4) (Graphics specs vary depending on CPU support) Support for up to quad-display simultaneously |
| Audio | |
| Audio Codec | Realtek® ALC1220 CODEC |
| Audio Features | - Back panel line out jack supports DSD audio - High Definition Audio, 2/4/5.1/7.1-channel configurable via software - Support for S/PDIF Out |
| LAN & Wireless | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Module | Realtek® Wi-Fi 7 RTL8922AE - Wi-Fi standards a/b/g/n/ac/ax, supporting 2.4/5/6 GHz bands - Bluetooth 5.4 - Supports 11be 160MHz wireless standard * Wi-Fi 7 requires Windows 11 SV3; no driver support for Windows 10 ** 6 GHz Wi-Fi 7 availability depends on country regulations |
| Expansion Slots | |
| PCI Express Slots | CPU Integrated: - 1 x PCIe x16 slot (PCIEX16) * AMD Ryzen 9000/7000 support PCIe 5.0 x16 mode * M2B_CPU and M2C_CPU share bandwidth with PCIEX16; populating them limits PCIEX16 to x8 mode * Ryzen 8000 Series-Phoenix 1 supports PCIe 4.0 x8; Phoenix 2 supports PCIe 4.0 x4 Chipset: - 1 x PCIe x16 slot PCIe 4.0 running at x4 (PCIEX4_1) - 1 x PCIe x16 slot PCIe 3.0 running at x4 (PCIEX4_2) * PCIEX16 slot supports only graphics cards or NVMe SSDs. For a single graphics card, use PCIEX16 slot. |
| Storage Interface | |
| M.2 Connectors | - 1 x M.2 (M2A_CPU), CPU integrated, Socket 3, M key, types 25110/22110/2580/2280: Ryzen 9000/7000: PCIe 5.0 x4/x2 Ryzen 8000 Phoenix 1/2: PCIe 4.0 x4/x2 - 2 x M.2 (M2B_CPU, M2C_CPU), CPU integrated, Socket 3, M key, types 22110/2280: Ryzen 9000/7000: PCIe 5.0 x4/x2 * Unavailable on Ryzen 8000 Phoenix 1/2 CPUs - 1 x M.2 (M2D_SB), chipset integrated, Socket 3, M key, types 22110/2280 PCIe 4.0 x4/x2 SSDs |
| SATA Connectors | 4 x SATA 6Gb/s connectors RAID 0, 1, 5, 10 support for NVMe SSDs (RAID 5 only with Ryzen 9000) RAID 0, 1, 10 support for SATA devices |
| USB | |
| USB Ports | CPU + ASMedia USB4 Controller: - 2 x USB4® USB Type-C® ports (back panel) CPU: - 1 x USB 3.2 Gen 1 port (back panel) Chipset: - 1 x USB Type-C® (USB 3.2 Gen 2x2) via internal header - 2 x USB 3.2 Gen 2 Type-A ports (red, back panel) - 7 x USB 3.2 Gen 1 ports (3 back panel, 4 internal) - 8 x USB 2.0/1.1 ports (4 back panel, 4 internal) |
| Internal I/O Connectors | |
| Power & Cooling | - 1 x 24-pin ATX main power connector - 2 x 8-pin ATX 12V power connectors - 1 x CPU fan header - 1 x CPU fan/water cooling pump header - 3 x system fan headers - 1 x system fan/water cooling pump header |
| LED Headers | - 3 x addressable RGB Gen2 LED strip headers - 1 x RGB LED strip header |
| Storage & Expansion | - 4 x M.2 Socket 3 connectors - 4 x SATA 6Gb/s connectors |
| Front Panel & Audio | - 1 x front panel header - 1 x front panel audio header |
| USB Headers | - 1 x USB Type-C® header (USB 3.2 Gen 2x2) - 2 x USB 3.2 Gen 1 headers - 2 x USB 2.0/1.1 headers |
| Other Headers | - 1 x Trusted Platform Module header (for GC-TPM2.0 modules) - 1 x HDMI port (note: depends on CPU) - 1 x power button - 1 x reset button - 1 x reset jumper - 1 x Clear CMOS jumper |
| Back Panel Connectors | |
| Ports | - 1 x Q-Flash Plus button - 4 x USB 2.0/1.1 ports - 4 x USB 3.2 Gen 1 ports - 1 x HDMI port (note: depends on CPU) - 2 x USB4® USB Type-C® ports (DisplayPort support) - 1 x RJ-45 LAN port - 2 x USB 3.2 Gen 2 Type-A ports (red) - 2 x antenna connectors (2T2R) - 2 x audio jacks - 1 x optical S/PDIF Out connector |
| I/O Controller & Monitoring | |
| Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection Fan fail warning, fan speed control (depends on installed fan/pump) |
| BIOS | |
| Flash Memory | 1 x 256 Mbit flash |
| Type | Licensed AMI UEFI BIOS |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | |
| Software | Support for GIGABYTE Control Center (GCC) (application features vary by model) Support for Q-Flash and Q-Flash Plus Support for Smart Backup |
| Bundled Software | |
| Included Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | |
| OS Support | Windows 11 64-bit |
| Form Factor | |
| Dimensions | ATX Form Factor; 30.5 cm x 24.4 cm |
There is currently no content in this section. Use the sidebar to add material to this section.

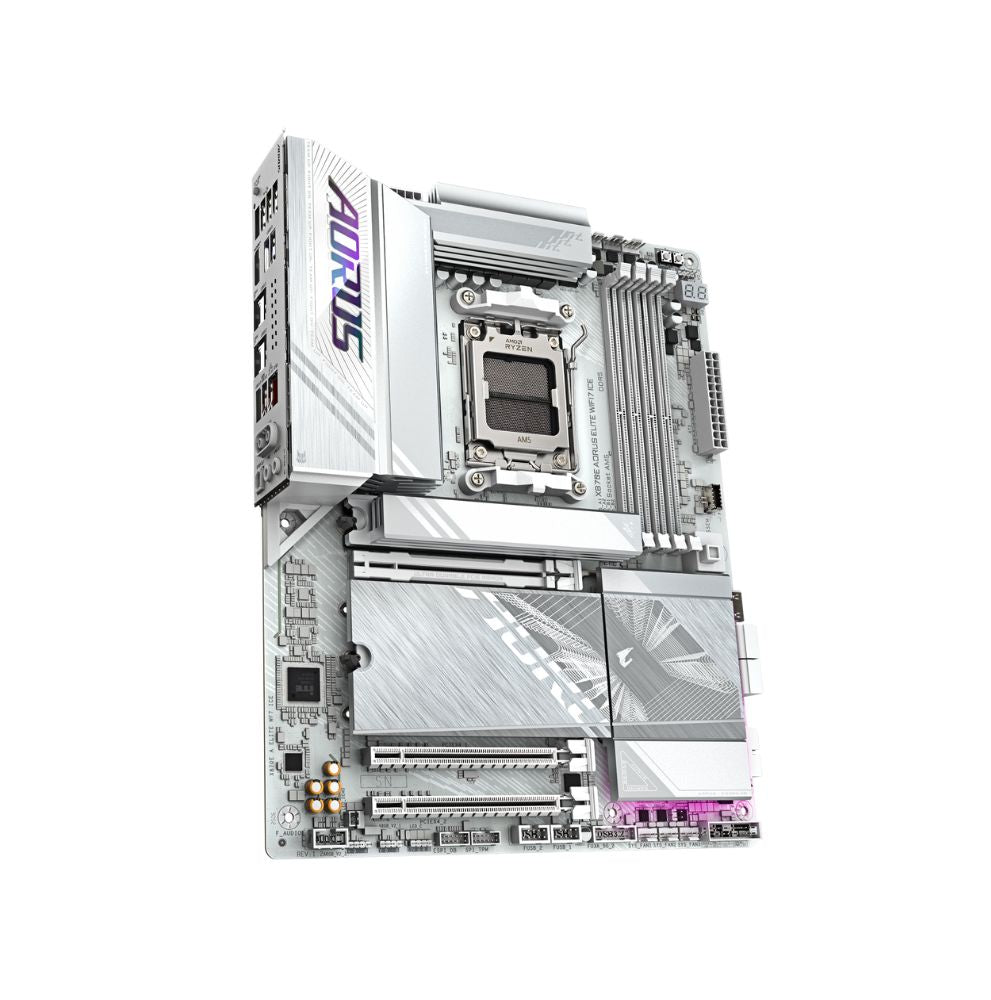

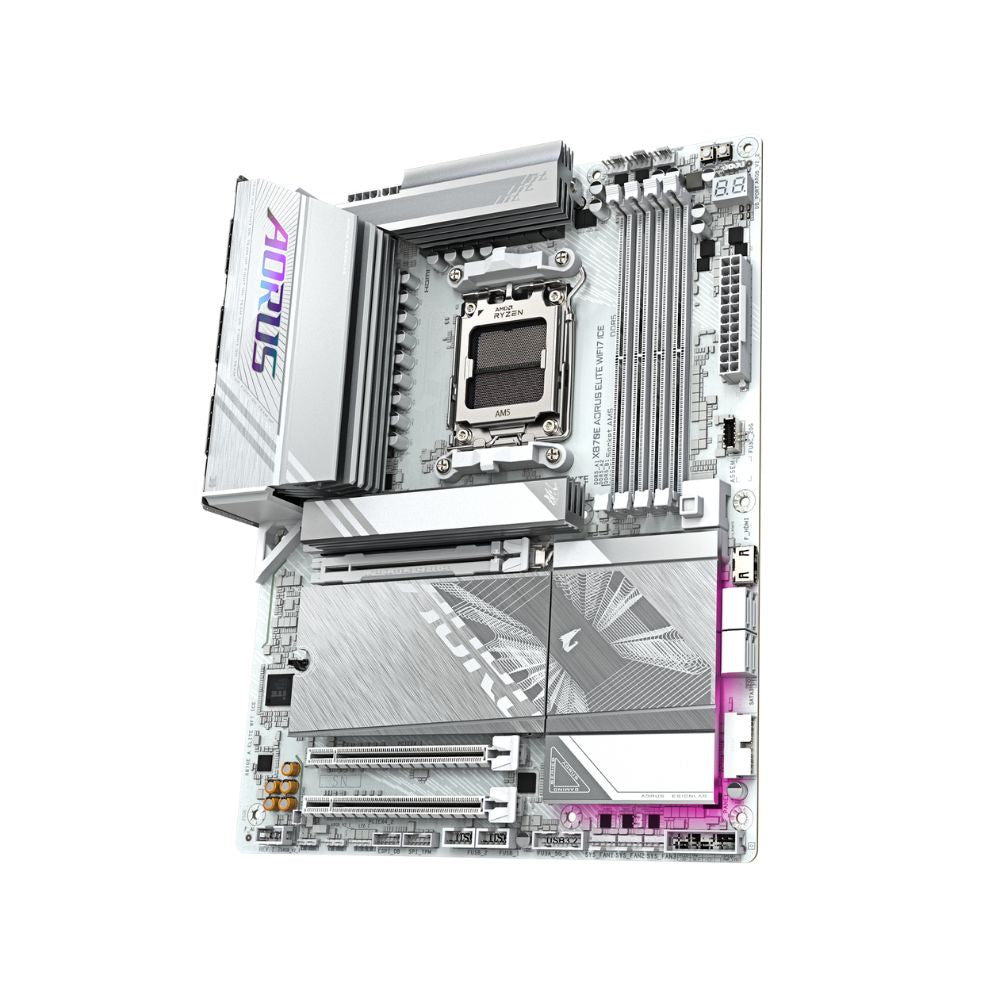

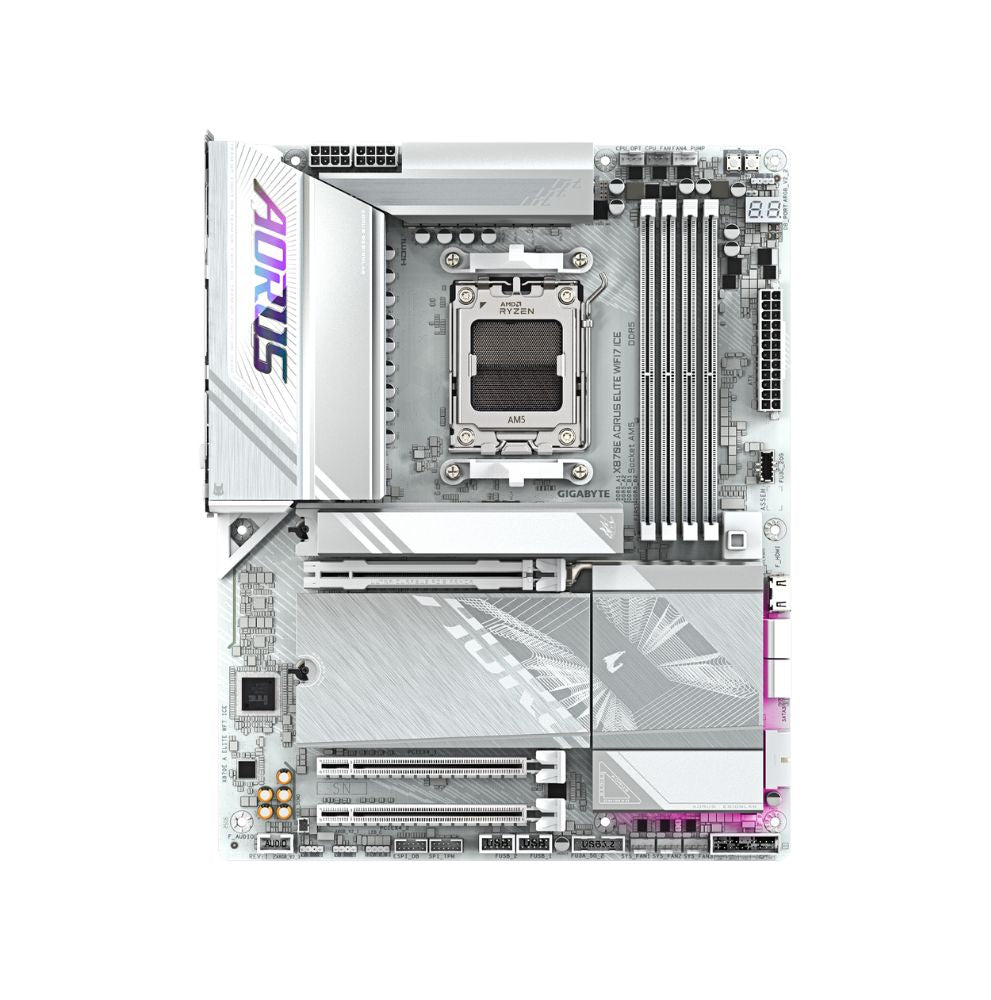

Gigabyte X870E AORUS ELITE WIFI7 ICE
