| CPU & Chipset | |
| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors (L3 cache varies by CPU) |
| Chipset | Intel® H610 Express Chipset |
| Memory | |
| Memory Support | DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules |
| Slots | 2 x DDR4 DIMM sockets (up to 64 GB, 32 GB per DIMM) |
| Features | Dual channel, ECC Un-buffered (non-ECC mode), non-ECC Un-buffered, XMP support |
| Graphics | |
| Integrated GPU | Intel® HD Graphics (CPU dependent) |
| Display Outputs | 1 x DisplayPort 1.2 (4096x2304@60Hz), 1 x HDMI 2.1 (4096x2160@60Hz), HDCP 2.3 |
| Audio | |
| Audio Codec | Realtek® Audio CODEC, High Definition Audio |
| Audio Channels | 2/4/5.1/7.1-channel (configurable via software) |
| Networking | Realtek® GbE LAN chip (10/100/1000 Mbps) |
| Expansion Slots | |
| CPU PCIe | 1 x PCI Express x16 (PCIe 4.0, runs at x16) |
| Chipset PCIe | 1 x PCI Express x1 (PCIe 3.0) |
| M.2 for Wi-Fi | 1 x M.2 Socket 1 connector (CNVi) |
| Storage | |
| M.2 | 1 x M.2 (Socket 3, M key, 2280, PCIe 3.0 x4/x2) |
| SATA | 4 x SATA 6Gb/s ports |
| USB Ports | |
| Rear Panel | 1 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| Internal | 1 x USB Type-C® (USB 3.2 Gen 1), 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 (header), 4 x USB 2.0/1.1 (via hub) |
| Internal I/O | |
| Power Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V |
| Cooling Headers | 1 x CPU fan, 2 x system fan headers |
| Additional I/O | M.2, SATA, front panel, front audio, TPM, serial, Clear CMOS jumper |

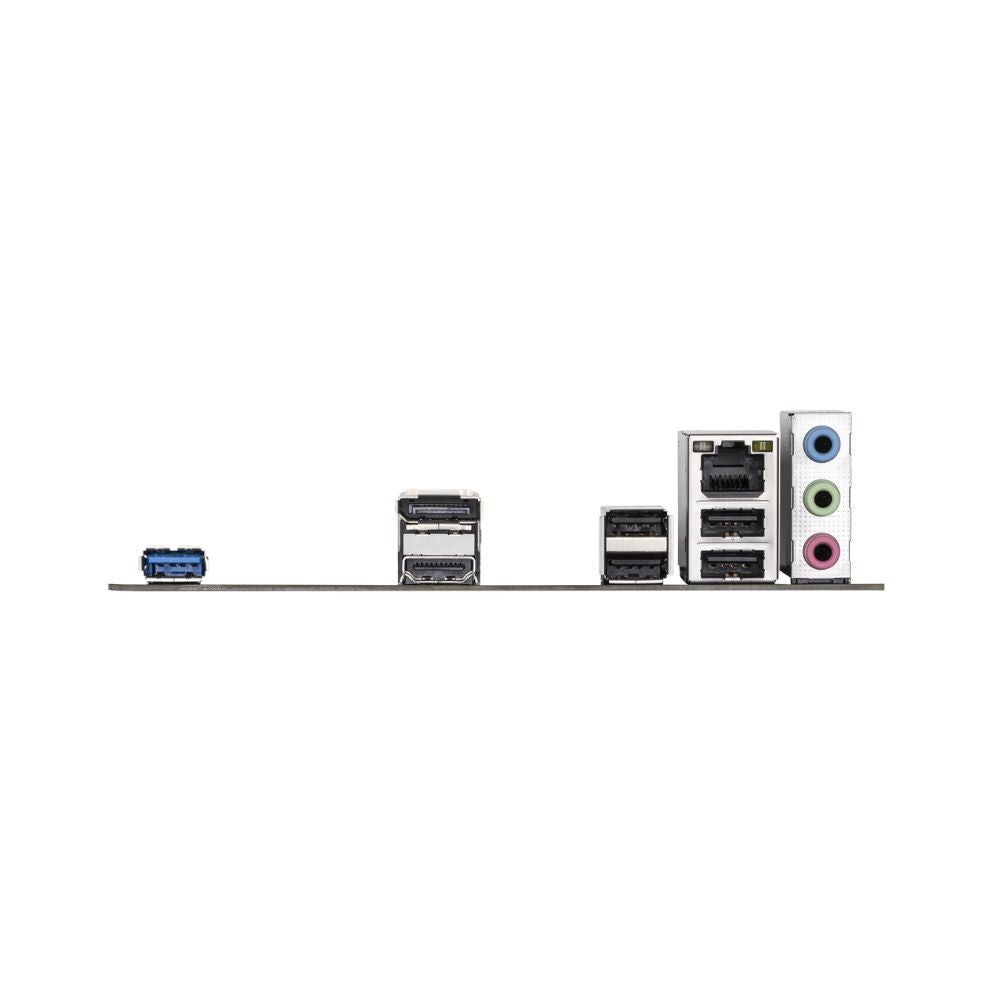

| Back Panel I/O | |
| Display | 1 x DisplayPort, 1 x HDMI |
| USB | 1 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| Networking | 1 x RJ-45 |
| Audio | 3 x Audio jacks |
| Monitoring | |
| Sensors | Voltage, temperature, fan speed, water flow |
| Fan Control | Yes (depends on fan type) |
| BIOS | 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Features & Software | |
| Utilities | GIGABYTE Control Center, Q-Flash |
| Bundled Software | Norton® Internet Security (OEM), LAN management software |
| Operating System & Form Factor | |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 22.0cm |
Skip to product information
Description
| CPU & Chipset | |
| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors (L3 cache varies by CPU) |
| Chipset | Intel® H610 Express Chipset |
| Memory | |
| Memory Support | DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules |
| Slots | 2 x DDR4 DIMM sockets (up to 64 GB, 32 GB per DIMM) |
| Features | Dual channel, ECC Un-buffered (non-ECC mode), non-ECC Un-buffered, XMP support |
| Graphics | |
| Integrated GPU | Intel® HD Graphics (CPU dependent) |
| Display Outputs | 1 x DisplayPort 1.2 (4096x2304@60Hz), 1 x HDMI 2.1 (4096x2160@60Hz), HDCP 2.3 |
| Audio | |
| Audio Codec | Realtek® Audio CODEC, High Definition Audio |
| Audio Channels | 2/4/5.1/7.1-channel (configurable via software) |
| Networking | Realtek® GbE LAN chip (10/100/1000 Mbps) |
| Expansion Slots | |
| CPU PCIe | 1 x PCI Express x16 (PCIe 4.0, runs at x16) |
| Chipset PCIe | 1 x PCI Express x1 (PCIe 3.0) |
| M.2 for Wi-Fi | 1 x M.2 Socket 1 connector (CNVi) |
| Storage | |
| M.2 | 1 x M.2 (Socket 3, M key, 2280, PCIe 3.0 x4/x2) |
| SATA | 4 x SATA 6Gb/s ports |
| USB Ports | |
| Rear Panel | 1 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| Internal | 1 x USB Type-C® (USB 3.2 Gen 1), 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 (header), 4 x USB 2.0/1.1 (via hub) |
| Internal I/O | |
| Power Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V |
| Cooling Headers | 1 x CPU fan, 2 x system fan headers |
| Additional I/O | M.2, SATA, front panel, front audio, TPM, serial, Clear CMOS jumper |
| Back Panel I/O | |
| Display | 1 x DisplayPort, 1 x HDMI |
| USB | 1 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| Networking | 1 x RJ-45 |
| Audio | 3 x Audio jacks |
| Monitoring | |
| Sensors | Voltage, temperature, fan speed, water flow |
| Fan Control | Yes (depends on fan type) |
| BIOS | 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Features & Software | |
| Utilities | GIGABYTE Control Center, Q-Flash |
| Bundled Software | Norton® Internet Security (OEM), LAN management software |
| Operating System & Form Factor | |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 22.0cm |
There is currently no content in this section. Use the sidebar to add material to this section.

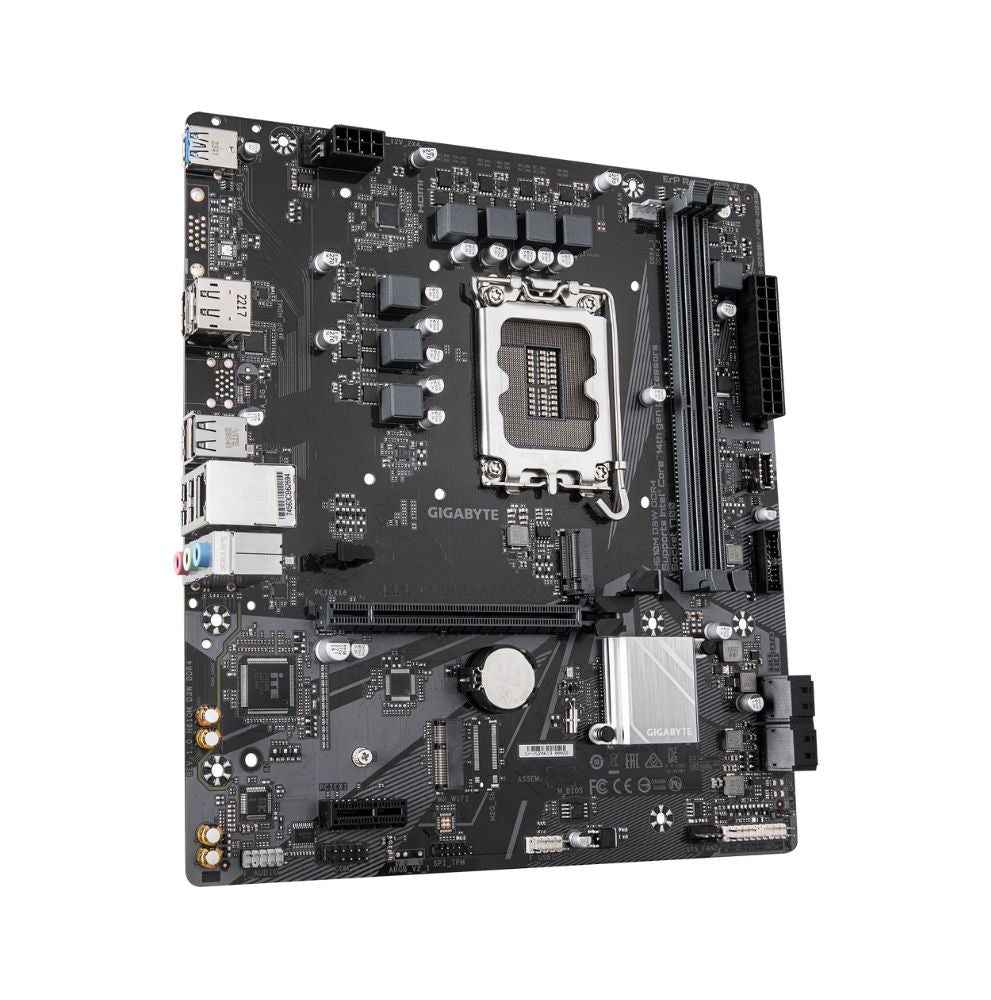

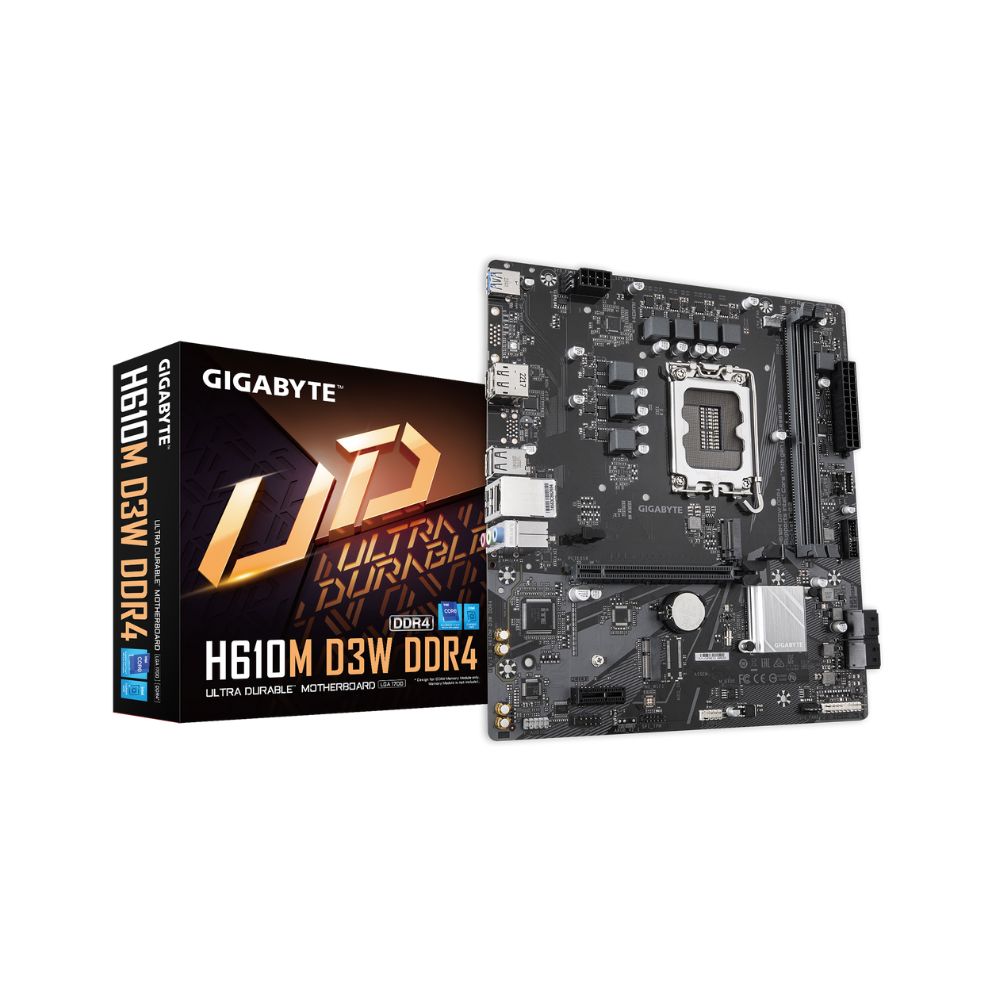

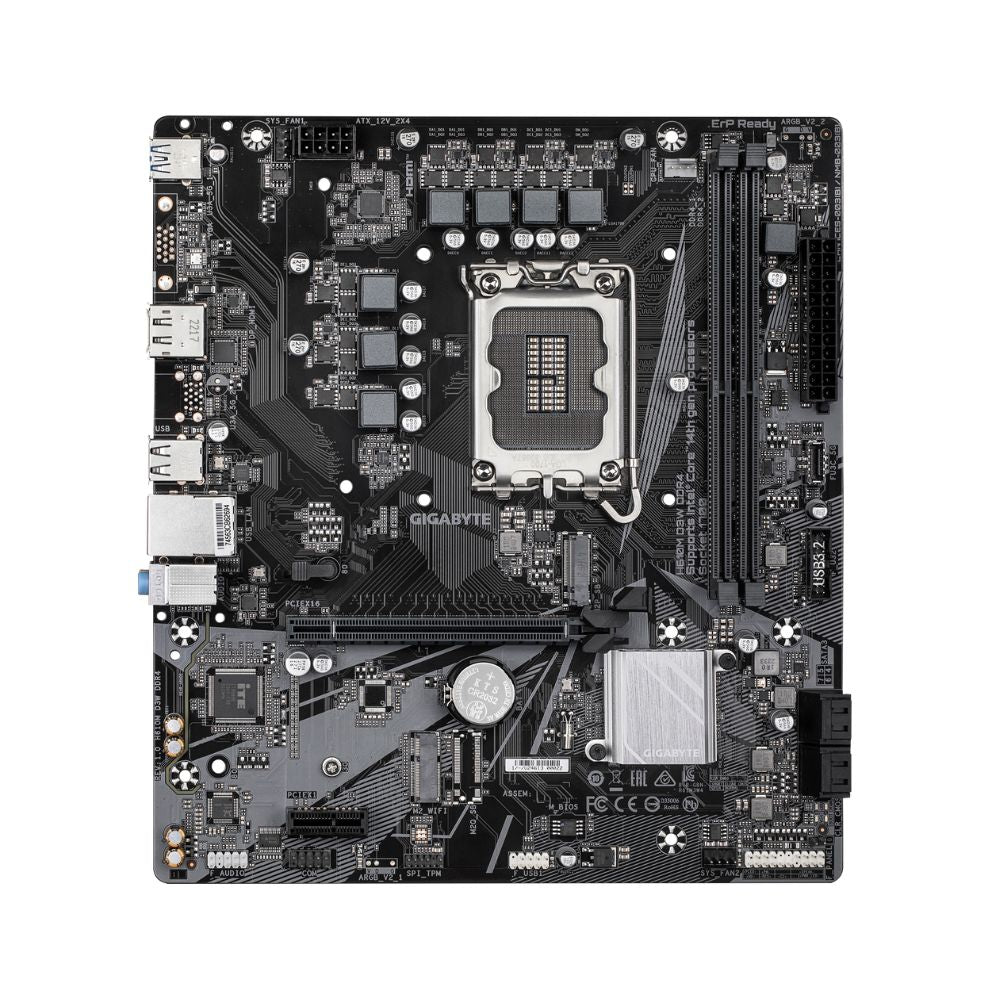

Gigabyte H610M D3W DDR4
Regular price
9,600.00 RSD
