| CPU | AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Desktop Processors * Refer to www.asus.com for the AMD CPU support list. |
| Memory | 3rd Gen AMD Ryzen™ Processors: 4 x DIMM, Max. 128 GB Supported speeds: 4400(O.C) / 4266(O.C) / 4133(O.C) / 4000(O.C) / 3866(O.C) / 3600(O.C) / 3466(O.C) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz, Un-buffered Memory* Dual channel memory architecture OptiMem II * ECC memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors List). |
| Graphics | 1 x DisplayPort 1.2 1 x HDMI™ 2.1 (4K@60Hz) * Graphics specifications may vary between CPU types. |
| Expansion Slots | AMD Ryzen™ 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors: - 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode) AMD B550 chipset: - 1 x PCIe 3.0 x16 slot (supports x4 mode)* - 3 x PCIe 3.0 x1 slots * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3 |
| Multi-GPU Support | 3rd & 2nd Gen AMD Ryzen™ Processors: Supports NVIDIA® 2-Way SLI® & AMD 3-Way CrossFireX™ 2nd & 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics: Supports AMD 2-Way CrossFireX™ |
| Storage | AMD Ryzen™ 5000 & 3000 / 5000 & 4000 G-Series Processors: - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD B550 Chipset: - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* - 6 x SATA 6Gb/s ports - Support RAID 0, 1, 10 * When M.2_2 Socket 3 is populated, SATA6G_5/6 ports will be disabled. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| USB | Rear USB — Total 8 ports: - 2 x USB 3.2 Gen 2 (1 x Type-A + 1 x Type-C®) - 4 x USB 3.2 Gen 1 (4 x Type-A) - 2 x USB 2.0 Front USB — Total 6 ports: - 1 x USB 3.2 Gen 1 header (supports additional 2 USB 3.2 Gen 1 ports) - 2 x USB 2.0 headers (support additional 4 USB 2.0 ports) |
| Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front & rear headphone outputs - Jack-detection, Multi-streaming, Front Panel Jack-retasking - 120 dB SNR stereo playback; 113 dB SNR recording input - Supports up to 32-Bit/192 kHz playback* Audio features: SupremeFX Shielding, Dual OP Amplifiers, Premium audio capacitors, Audio cover * Due to HDA bandwidth limits, 32-Bit/192 kHz not supported for 8-Channel audio. |
| Back Panel I/O Ports | 5 x Audio jacks 1 x Optical S/PDIF out 1 x BIOS FlashBack™ button 1 x DisplayPort 1 x HDMI™ port 1 x Intel® I225-V 2.5G Ethernet 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x Type-C®) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0 ports |
| Internal I/O Connectors | Fan & Cooling: - 1 x 4-Pin AIO_Pump header - 1 x 4-Pin CPU fan header - 1 x 4-Pin CPU_OPT fan header - 3 x 4-Pin Chassis fan headers Power: - 1 x 24-pin main power connector - 1 x 8-pin +12V power connector - 1 x 4-pin +12V power connector Storage: - 2 x M.2 slots (Key M) - 6 x SATA 6Gb/s ports USB: - 1 x USB 3.2 Gen 1 header (supports 2 additional ports) - 2 x USB 2.0 headers (supports 4 additional ports) Miscellaneous: - 1 x AURA addressable Gen 2 header - 2 x AURA RGB headers - 1 x Clear CMOS header - 1 x Front panel audio header (AAFP) - 1 x 20-3 pin System Panel header - 1 x Thermal sensor header - 1 x Thunderbolt header |
| Special Features | Aura Sync (Standard RGB & Addressable Gen 2 headers) ASUS Q-Design: Q-DIMM, Q-LED (DRAM/CPU/VGA/Boot Device), Q-Slot ASUS Thermal Solution: Aluminum M.2 heatsink ASUS EZ DIY: BIOS FlashBack™, BIOS FlashBack™ LED, Clear CMOS header, ProCool, Pre-mounted I/O shield, SafeSlot |
| Software Features | ROG Exclusive: RAMCache III, ROG CPU-Z, GameFirst VI, Sonic Studio III + Virtual Mixer, Sonic Radar III, DTS® Sound Unbound, Overwolf, Anti-virus software ASUS / Armoury Crate: Aura Creator, Aura Sync, AI Noise Cancelling Microphone AI Suite 3: PPSU, EPU, DIGI+ VRM, Fan Xpert 4, TurboV EVO, EZ Update WinRAR, UEFI BIOS, ASUS EZ DIY utilities |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables: - 1 x Addressable RGB extension cable - 4 x SATA 6Gb/s cables Miscellaneous: - 1 x Cable ties pack - 1 x M.2 Rubber Package - 1 x M.2 SSD screw package - 1 x ROG STRIX sticker - 1 x ROG STRIX thank you card Installation Media: - 1 x Supporting DVD Documentation: - 1 x User manual |
| Operating System | Windows® 10 64-bit, Windows® 11 64-bit |
| Form Factor | ATX — 30.5 cm x 24.4 cm |
Skip to product information
Description
| CPU | AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Desktop Processors * Refer to www.asus.com for the AMD CPU support list. |
| Memory | 3rd Gen AMD Ryzen™ Processors: 4 x DIMM, Max. 128 GB Supported speeds: 4400(O.C) / 4266(O.C) / 4133(O.C) / 4000(O.C) / 3866(O.C) / 3600(O.C) / 3466(O.C) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz, Un-buffered Memory* Dual channel memory architecture OptiMem II * ECC memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors List). |
| Graphics | 1 x DisplayPort 1.2 1 x HDMI™ 2.1 (4K@60Hz) * Graphics specifications may vary between CPU types. |
| Expansion Slots | AMD Ryzen™ 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors: - 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode) AMD B550 chipset: - 1 x PCIe 3.0 x16 slot (supports x4 mode)* - 3 x PCIe 3.0 x1 slots * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3 |
| Multi-GPU Support | 3rd & 2nd Gen AMD Ryzen™ Processors: Supports NVIDIA® 2-Way SLI® & AMD 3-Way CrossFireX™ 2nd & 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics: Supports AMD 2-Way CrossFireX™ |
| Storage | AMD Ryzen™ 5000 & 3000 / 5000 & 4000 G-Series Processors: - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD B550 Chipset: - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* - 6 x SATA 6Gb/s ports - Support RAID 0, 1, 10 * When M.2_2 Socket 3 is populated, SATA6G_5/6 ports will be disabled. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| USB | Rear USB — Total 8 ports: - 2 x USB 3.2 Gen 2 (1 x Type-A + 1 x Type-C®) - 4 x USB 3.2 Gen 1 (4 x Type-A) - 2 x USB 2.0 Front USB — Total 6 ports: - 1 x USB 3.2 Gen 1 header (supports additional 2 USB 3.2 Gen 1 ports) - 2 x USB 2.0 headers (support additional 4 USB 2.0 ports) |
| Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front & rear headphone outputs - Jack-detection, Multi-streaming, Front Panel Jack-retasking - 120 dB SNR stereo playback; 113 dB SNR recording input - Supports up to 32-Bit/192 kHz playback* Audio features: SupremeFX Shielding, Dual OP Amplifiers, Premium audio capacitors, Audio cover * Due to HDA bandwidth limits, 32-Bit/192 kHz not supported for 8-Channel audio. |
| Back Panel I/O Ports | 5 x Audio jacks 1 x Optical S/PDIF out 1 x BIOS FlashBack™ button 1 x DisplayPort 1 x HDMI™ port 1 x Intel® I225-V 2.5G Ethernet 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x Type-C®) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0 ports |
| Internal I/O Connectors | Fan & Cooling: - 1 x 4-Pin AIO_Pump header - 1 x 4-Pin CPU fan header - 1 x 4-Pin CPU_OPT fan header - 3 x 4-Pin Chassis fan headers Power: - 1 x 24-pin main power connector - 1 x 8-pin +12V power connector - 1 x 4-pin +12V power connector Storage: - 2 x M.2 slots (Key M) - 6 x SATA 6Gb/s ports USB: - 1 x USB 3.2 Gen 1 header (supports 2 additional ports) - 2 x USB 2.0 headers (supports 4 additional ports) Miscellaneous: - 1 x AURA addressable Gen 2 header - 2 x AURA RGB headers - 1 x Clear CMOS header - 1 x Front panel audio header (AAFP) - 1 x 20-3 pin System Panel header - 1 x Thermal sensor header - 1 x Thunderbolt header |
| Special Features | Aura Sync (Standard RGB & Addressable Gen 2 headers) ASUS Q-Design: Q-DIMM, Q-LED (DRAM/CPU/VGA/Boot Device), Q-Slot ASUS Thermal Solution: Aluminum M.2 heatsink ASUS EZ DIY: BIOS FlashBack™, BIOS FlashBack™ LED, Clear CMOS header, ProCool, Pre-mounted I/O shield, SafeSlot |
| Software Features | ROG Exclusive: RAMCache III, ROG CPU-Z, GameFirst VI, Sonic Studio III + Virtual Mixer, Sonic Radar III, DTS® Sound Unbound, Overwolf, Anti-virus software ASUS / Armoury Crate: Aura Creator, Aura Sync, AI Noise Cancelling Microphone AI Suite 3: PPSU, EPU, DIGI+ VRM, Fan Xpert 4, TurboV EVO, EZ Update WinRAR, UEFI BIOS, ASUS EZ DIY utilities |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables: - 1 x Addressable RGB extension cable - 4 x SATA 6Gb/s cables Miscellaneous: - 1 x Cable ties pack - 1 x M.2 Rubber Package - 1 x M.2 SSD screw package - 1 x ROG STRIX sticker - 1 x ROG STRIX thank you card Installation Media: - 1 x Supporting DVD Documentation: - 1 x User manual |
| Operating System | Windows® 10 64-bit, Windows® 11 64-bit |
| Form Factor | ATX — 30.5 cm x 24.4 cm |
There is currently no content in this section. Use the sidebar to add material to this section.

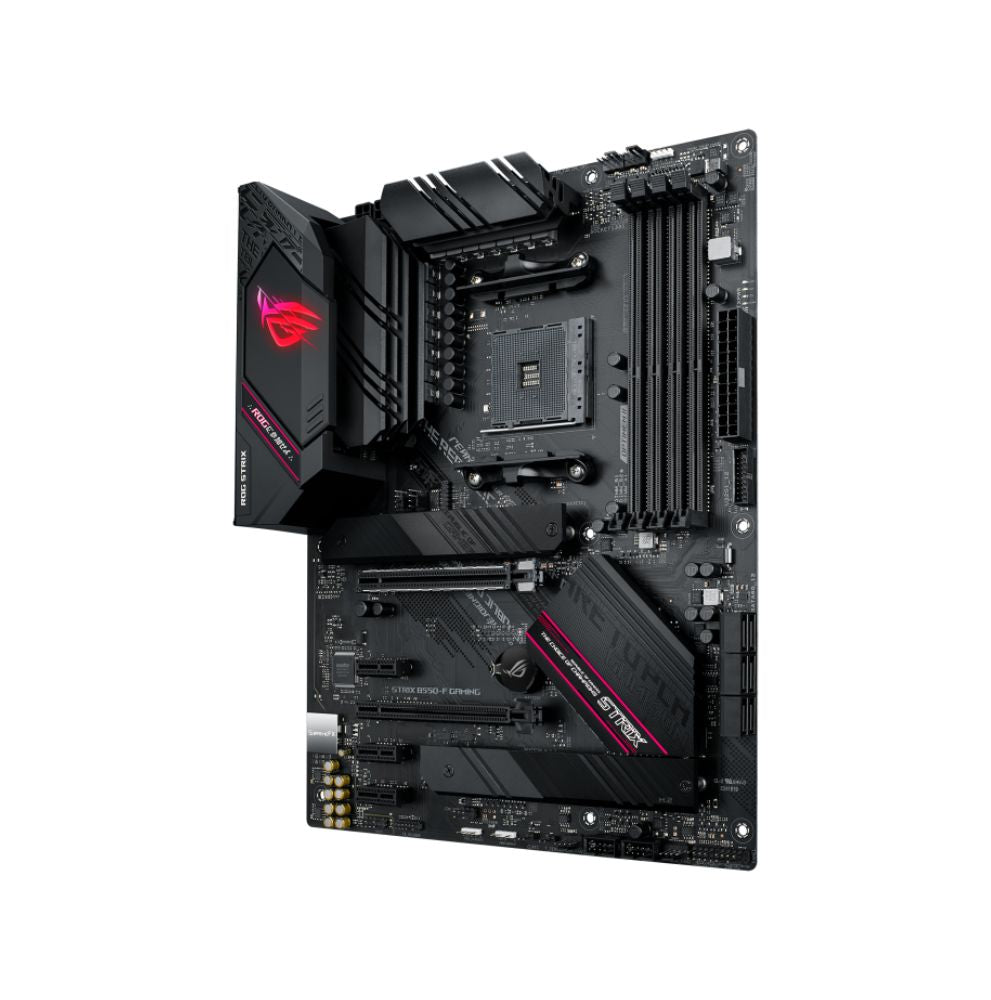

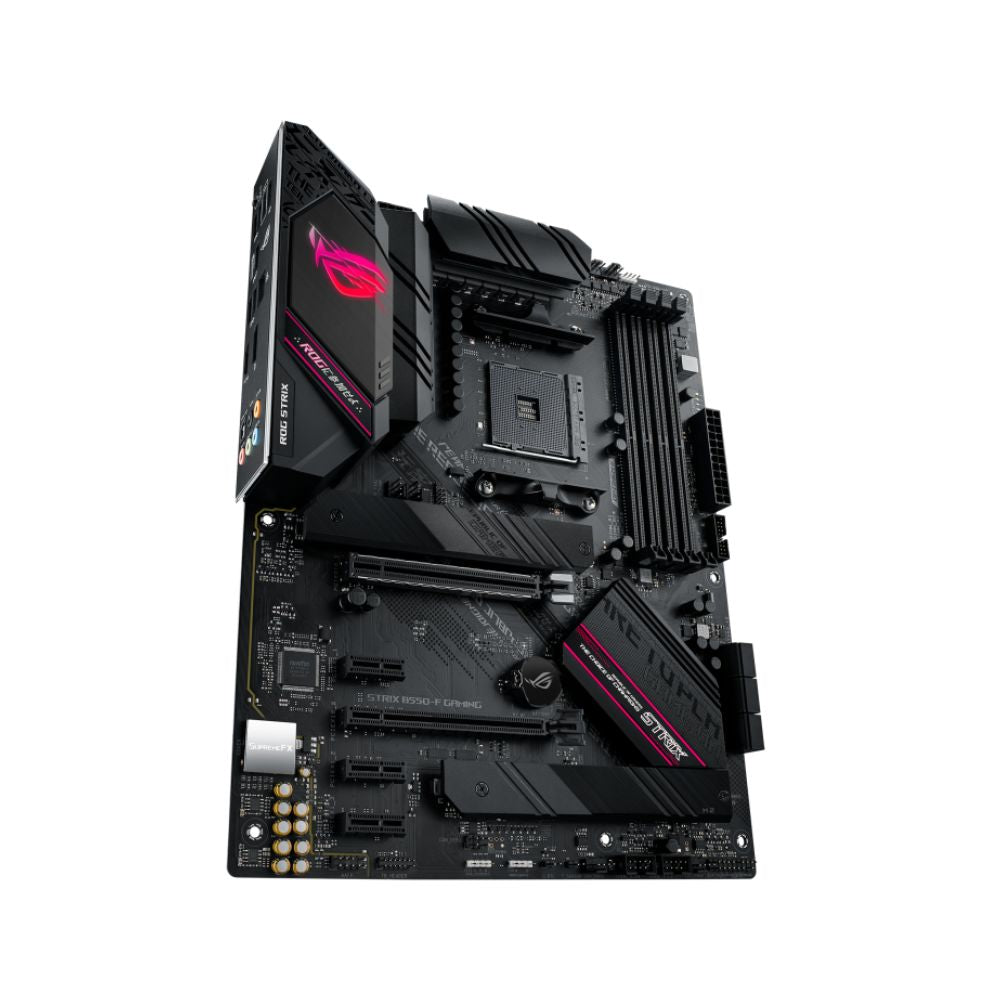

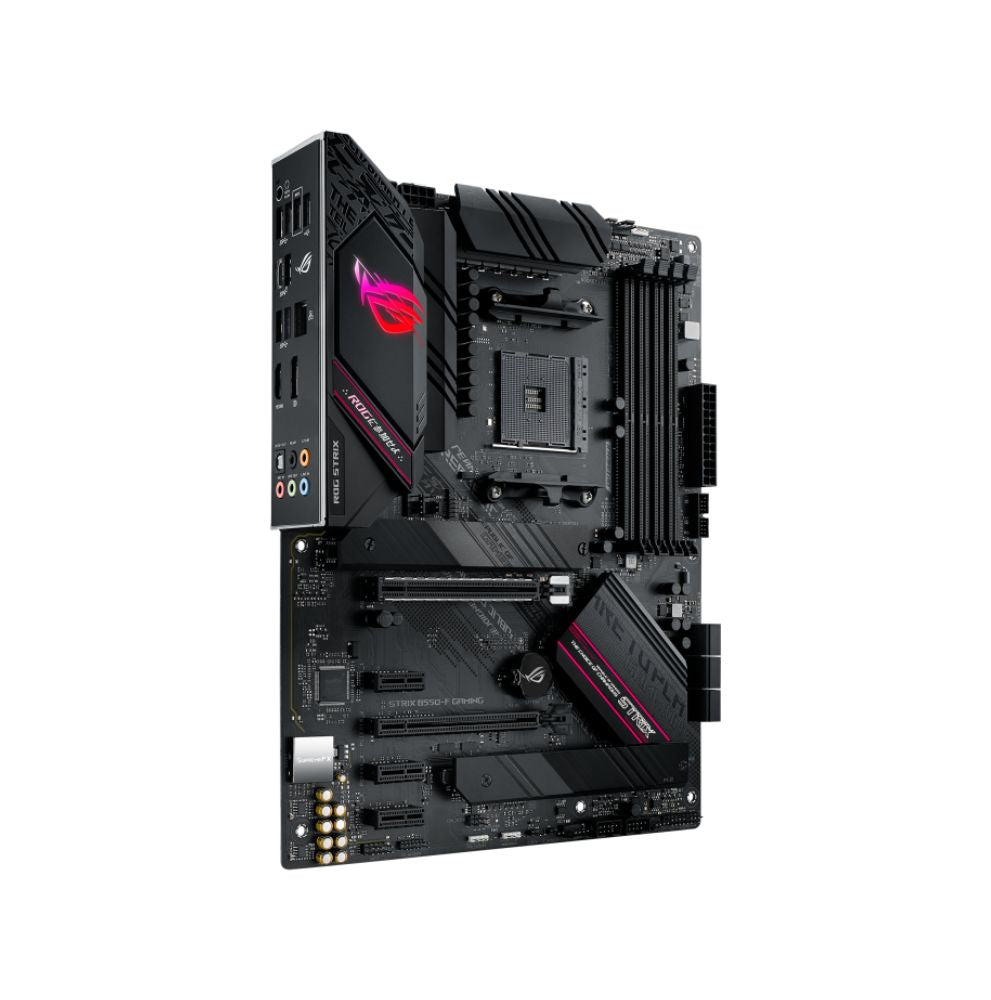

ASUS ROG STRIX B550-F GAMING
Regular price
21,000.00 RSD
