| Software | |
| Operating system | Android 8.1 |
| Processor | |
| Processor cores | 8 |
| Processor manufacturer | Rockchip |
| Processor family | Rockchip |
| Processor model | RK3368 |
| Processor boost frequency | 1.5 GHz |
| Memory | |
| Internal memory | 2 GB |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR3L-SDRAM |
| Storage | |
| Total storage capacity | 16 GB |
| Optical drive type | N |
| Card reader integrated | Y |
| Compatible memory cards | SD,SDHC,SDXC |
| Storage media | eMMC |
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Y |
| Bluetooth | 5.0 Y |
| Wake-on-LAN ready | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Y |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Design | |
| Chassis type | Nettop |
| Kensington Lock | Y |
| Cable lock slot type | Kensington |
| VESA mounting | Y |
| Product colour | Black |
| Volume | 0.577 L |
| Housing material | Plastic |
| Technical details | |
| Vendor | Shuttle |
| Packaging content | |
| VESA mount included | Y |
| Display included | N |
| Ports & interfaces | |
| Line-out | Y |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Y |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Weight & dimensions | |
| Height | 29 mm |
| Width | 141 mm |
| Depth | 141 mm |
| Package weight | 650 g |
| Weight | 270 g |
| Graphics | |
| Discrete graphics card | N |
| On-board graphics card model | PowerVR SGX6110 |
| Discrete graphics card model | Not available |
| Graphics card Open GL support | Y |
| On-board graphics card | Y |
| Performance | |
| Product type | Mini PC |
| Password protection | Y |
| Audio chip | Realtek ALC5640-VB |
| Power | |
| Power supply | 24 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Sustainability | |
| Sustainability certificates | ErP, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Certificates | |
| Certification | CE, FCC, BSMI, RCM, VCCI |
Skip to product information
Description
| Software | |
| Operating system | Android 8.1 |
| Processor | |
| Processor cores | 8 |
| Processor manufacturer | Rockchip |
| Processor family | Rockchip |
| Processor model | RK3368 |
| Processor boost frequency | 1.5 GHz |
| Memory | |
| Internal memory | 2 GB |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR3L-SDRAM |
| Storage | |
| Total storage capacity | 16 GB |
| Optical drive type | N |
| Card reader integrated | Y |
| Compatible memory cards | SD,SDHC,SDXC |
| Storage media | eMMC |
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Y |
| Bluetooth | 5.0 Y |
| Wake-on-LAN ready | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Y |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Design | |
| Chassis type | Nettop |
| Kensington Lock | Y |
| Cable lock slot type | Kensington |
| VESA mounting | Y |
| Product colour | Black |
| Volume | 0.577 L |
| Housing material | Plastic |
| Technical details | |
| Vendor | Shuttle |
| Packaging content | |
| VESA mount included | Y |
| Display included | N |
| Ports & interfaces | |
| Line-out | Y |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Y |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Weight & dimensions | |
| Height | 29 mm |
| Width | 141 mm |
| Depth | 141 mm |
| Package weight | 650 g |
| Weight | 270 g |
| Graphics | |
| Discrete graphics card | N |
| On-board graphics card model | PowerVR SGX6110 |
| Discrete graphics card model | Not available |
| Graphics card Open GL support | Y |
| On-board graphics card | Y |
| Performance | |
| Product type | Mini PC |
| Password protection | Y |
| Audio chip | Realtek ALC5640-VB |
| Power | |
| Power supply | 24 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Sustainability | |
| Sustainability certificates | ErP, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Certificates | |
| Certification | CE, FCC, BSMI, RCM, VCCI |
There is currently no content in this section. Use the sidebar to add material to this section.

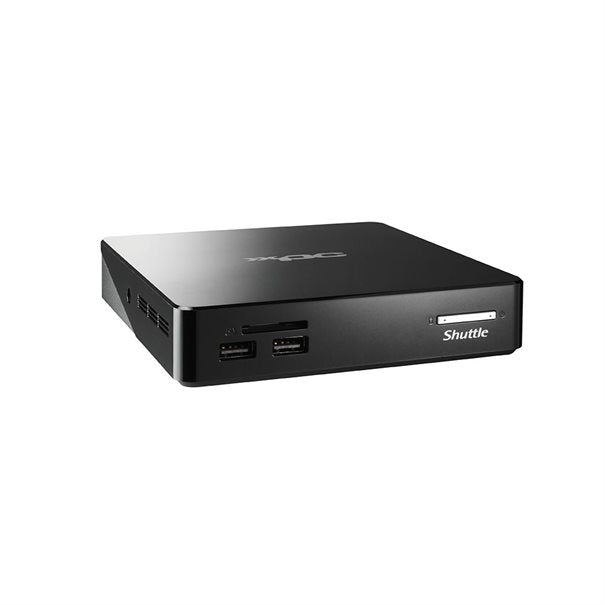

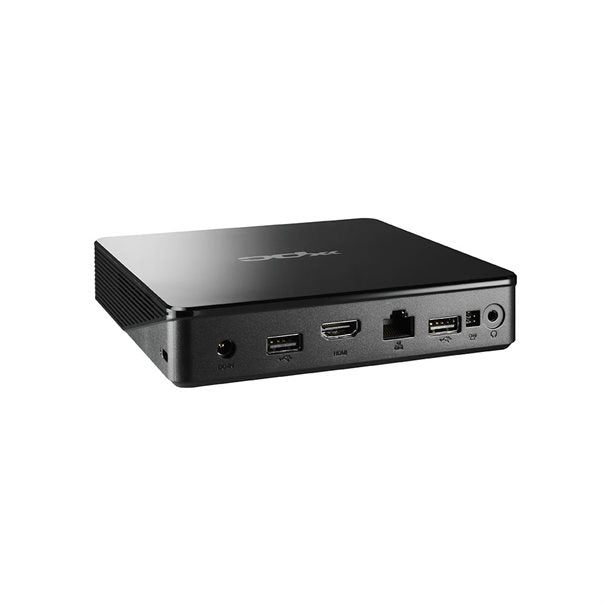

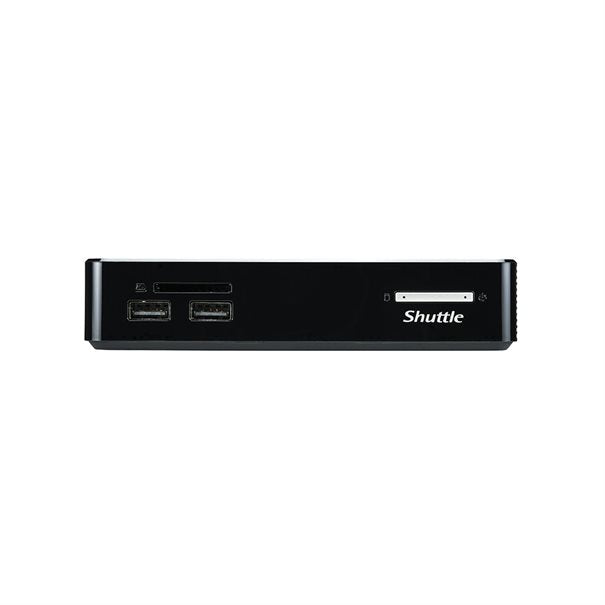

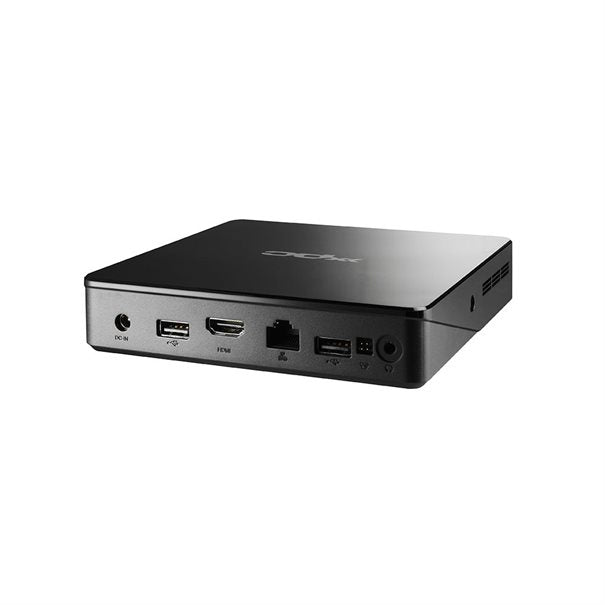

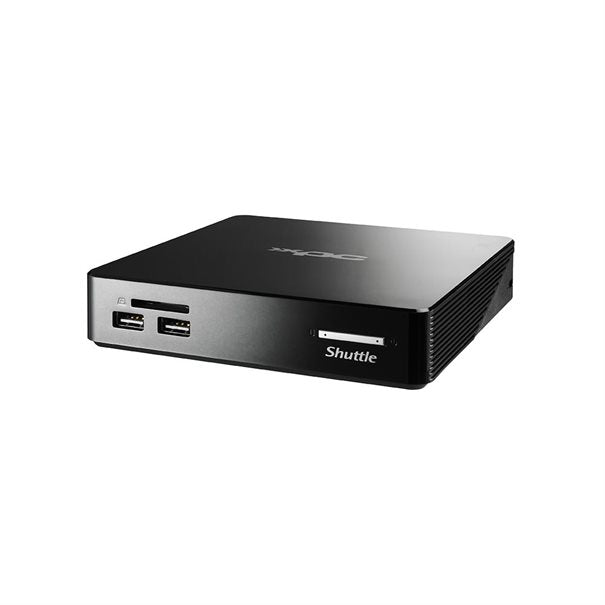

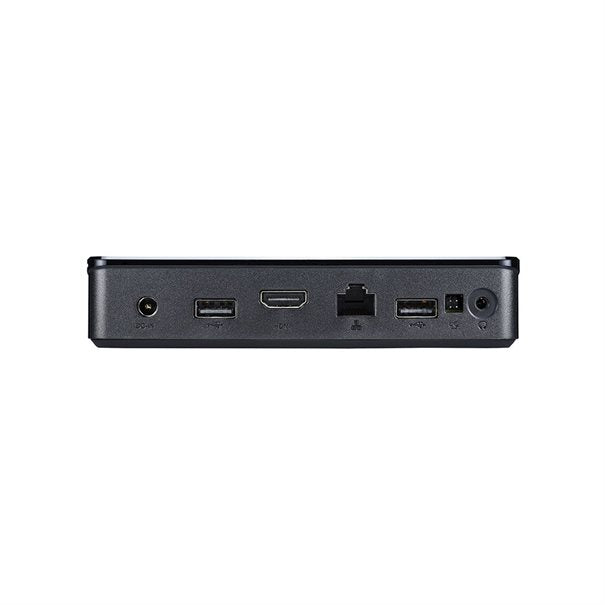

Shuttle Barebone NS02EV2 Black (Rockchip RK3368)
Regular price
12,200.00 RSD
