| CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU * Please refer to "CPU Support List" for more information. |
| Chipset | Intel® H610 Express Chipset |
| Memory |
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, max resolution 1920x1200@60 Hz 1 x HDMI port, max resolution 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3) 2 x DisplayPorts, max resolution 4096x2304@60 Hz (DP 1.2, HDCP 2.3) Support for up to 3 displays simultaneously * Graphics specifications may vary depending on CPU support. |
| Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, please configure via audio software. |
| LAN | Intel® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIe 4.0) |
| Storage Interface |
Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| USB |
Chipset: 4 x USB 3.2 Gen 1 ports (2 rear, 2 internal) 4 x USB 2.0/1.1 ports (rear) Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports (internal) |
| Internal I/O Connectors |
1 x 24-pin ATX power 1 x 4-pin ATX 12V power 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 4 x SATA 6Gb/s 1 x front panel 1 x front panel audio 1 x USB 3.2 Gen 1 header 2 x USB 2.0 headers 1 x TPM header 2 x serial port headers 1 x Clear CMOS jumper 1 x chassis intrusion header |

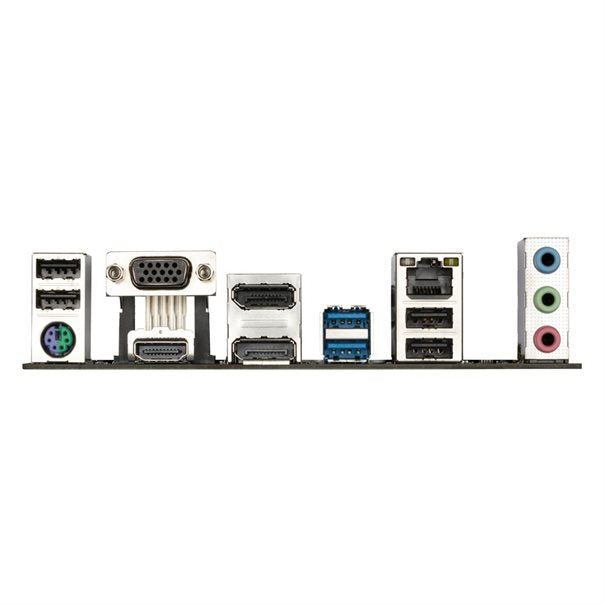

| Back Panel Connectors |
1 x PS/2 keyboard/mouse 2 x USB 3.2 Gen 1 4 x USB 2.0/1.1 1 x D-Sub 2 x DisplayPorts 1 x HDMI 2.0 1 x RJ-45 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control |
| BIOS |
1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center @BIOS, EasyTune, Ambient LED, Smart Backup, System Information Viewer Support for Q-Flash Support for Xpress Install |
| Bundled Software |
Norton® Internet Security (OEM) LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Mini-ITX; 17.0cm x 17.0cm |
Skip to product information
Description
| CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU * Please refer to "CPU Support List" for more information. |
| Chipset | Intel® H610 Express Chipset |
| Memory |
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, max resolution 1920x1200@60 Hz 1 x HDMI port, max resolution 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3) 2 x DisplayPorts, max resolution 4096x2304@60 Hz (DP 1.2, HDCP 2.3) Support for up to 3 displays simultaneously * Graphics specifications may vary depending on CPU support. |
| Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, please configure via audio software. |
| LAN | Intel® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIe 4.0) |
| Storage Interface |
Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| USB |
Chipset: 4 x USB 3.2 Gen 1 ports (2 rear, 2 internal) 4 x USB 2.0/1.1 ports (rear) Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports (internal) |
| Internal I/O Connectors |
1 x 24-pin ATX power 1 x 4-pin ATX 12V power 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 4 x SATA 6Gb/s 1 x front panel 1 x front panel audio 1 x USB 3.2 Gen 1 header 2 x USB 2.0 headers 1 x TPM header 2 x serial port headers 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Back Panel Connectors |
1 x PS/2 keyboard/mouse 2 x USB 3.2 Gen 1 4 x USB 2.0/1.1 1 x D-Sub 2 x DisplayPorts 1 x HDMI 2.0 1 x RJ-45 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control |
| BIOS |
1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center @BIOS, EasyTune, Ambient LED, Smart Backup, System Information Viewer Support for Q-Flash Support for Xpress Install |
| Bundled Software |
Norton® Internet Security (OEM) LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Mini-ITX; 17.0cm x 17.0cm |
There is currently no content in this section. Use the sidebar to add material to this section.

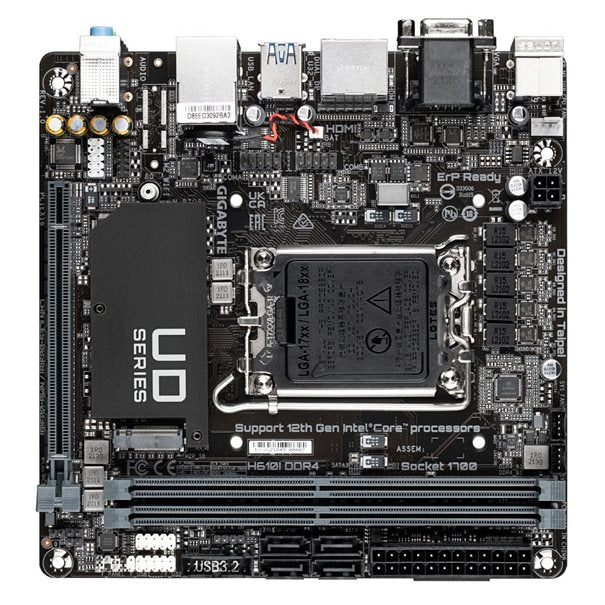

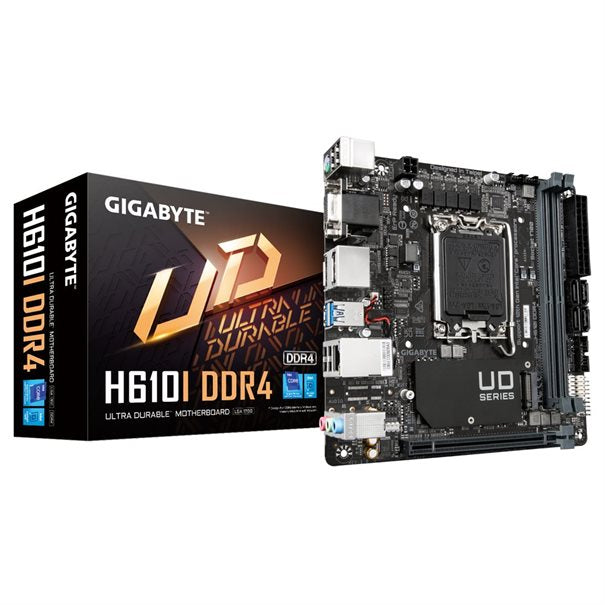

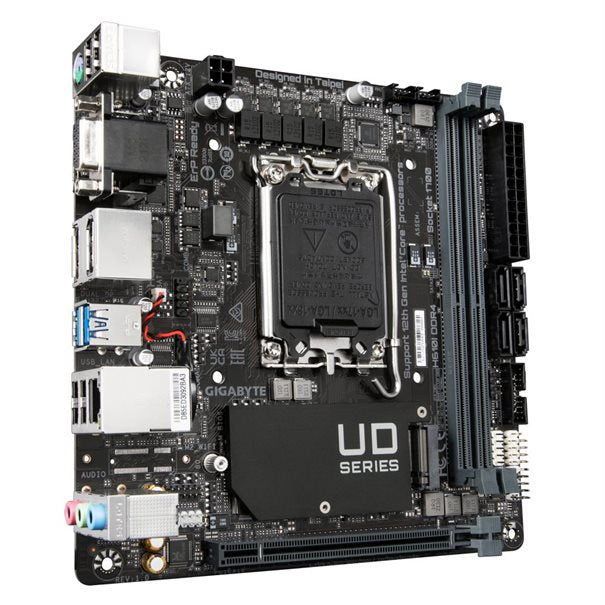

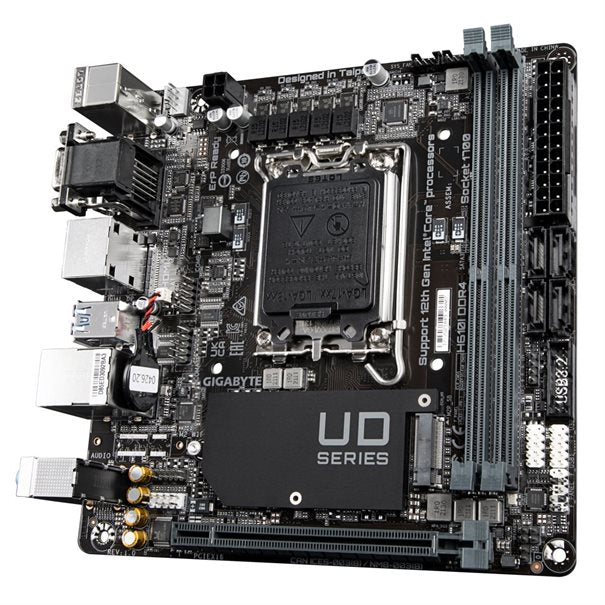

Gigabyte H610I DDR4
Regular price
13,600.00 RSD
