| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen |
| Maximum internal memory supported by processor | 192 GB |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Memory slots type | DIMM |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Maximum internal memory | 192 GB |
| Number of memory slots | 4 |
| Non-ECC | Yes |
| Supported memory clock speed (max) | 7600 MHz |
| Supported memory clock speeds | 7600. 7200. 7000. 6800. 6600. 6400. 6200. 6000. 5600. 5200. 4800. 4400 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Network | |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet interface | Gigabit Ethernet |
| Technical details | |
| Vendor | Gigabyte |
| Warranty period | 3 year(s) |
| Packaging content | |
| Cables included | SATA |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 slots | 3 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Weight & dimensions | |
| Height | 35 mm |
| Width | 305 mm |
| Depth | 244 mm |
| Battery | |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Lithium weight per battery | 0.0700 g |
| Battery weight | 3 g |
| Battery type | CR2032 |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| Features | |
| Motherboard form factor | ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | AMD B650 |
| Cooling type | Active |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Component for | PC |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Internal I/O | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 3 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |

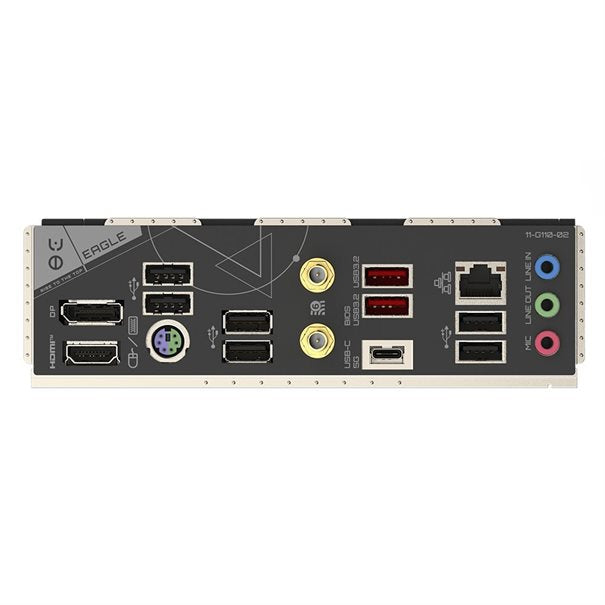

| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 1 |
| RAID support | Yes |
| Number of storage drives supported | 5 |
| Packaging data | |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package width | 335 mm |
| Package weight | 1740 g |
Skip to product information
Description
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen |
| Maximum internal memory supported by processor | 192 GB |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Memory slots type | DIMM |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Maximum internal memory | 192 GB |
| Number of memory slots | 4 |
| Non-ECC | Yes |
| Supported memory clock speed (max) | 7600 MHz |
| Supported memory clock speeds | 7600. 7200. 7000. 6800. 6600. 6400. 6200. 6000. 5600. 5200. 4800. 4400 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Network | |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet interface | Gigabit Ethernet |
| Technical details | |
| Vendor | Gigabyte |
| Warranty period | 3 year(s) |
| Packaging content | |
| Cables included | SATA |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 slots | 3 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Weight & dimensions | |
| Height | 35 mm |
| Width | 305 mm |
| Depth | 244 mm |
| Battery | |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Lithium weight per battery | 0.0700 g |
| Battery weight | 3 g |
| Battery type | CR2032 |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| Features | |
| Motherboard form factor | ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | AMD B650 |
| Cooling type | Active |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Component for | PC |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Internal I/O | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 3 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 1 |
| RAID support | Yes |
| Number of storage drives supported | 5 |
| Packaging data | |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package width | 335 mm |
| Package weight | 1740 g |
There is currently no content in this section. Use the sidebar to add material to this section.

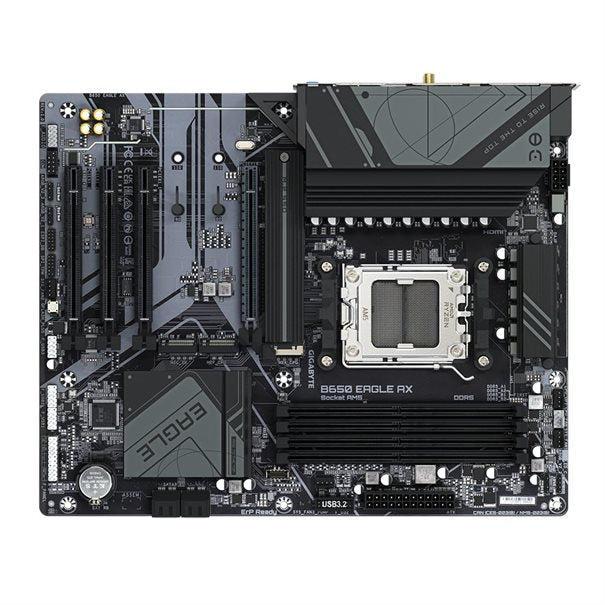

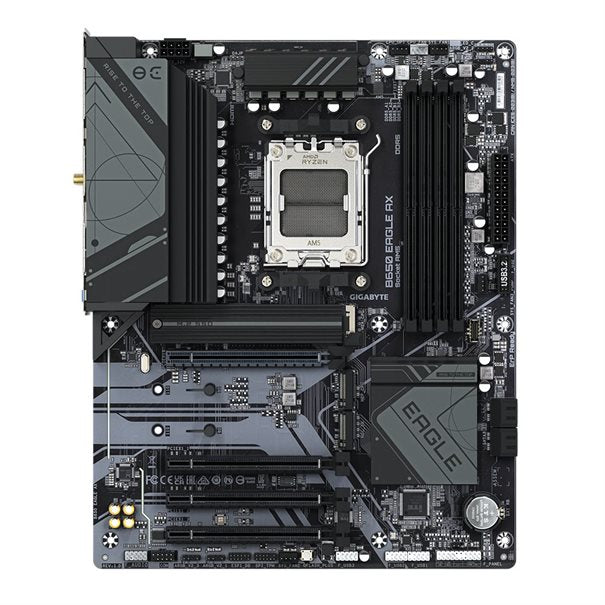

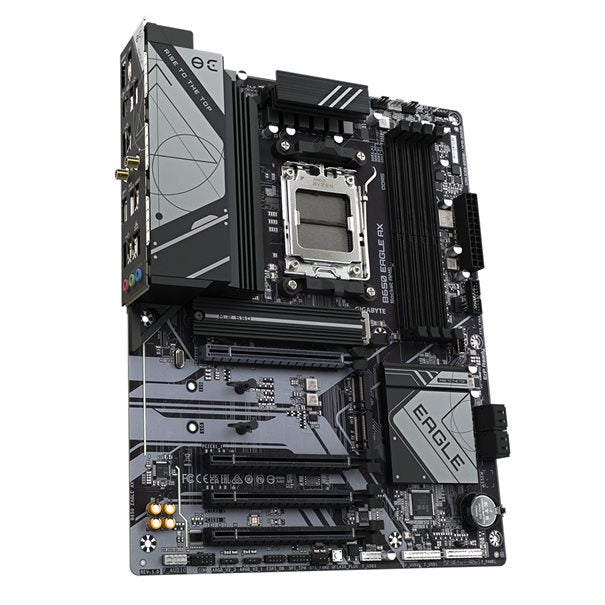

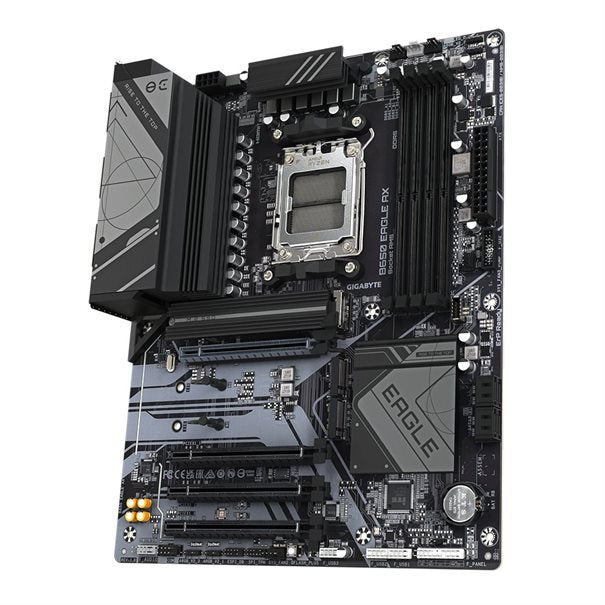

GIGA B650 EAGLE AX AM5/DDR5/ATX
Regular price
19,900.00 RSD
