| Processor | Quad-Core Intel® Celeron® J4105 SoC — 2.50 GHz, 10 W TDP |
| Display | Dual DisplayPort (DP) 1.2a, LVDS and eDP 1.4 support |
| Storage & Expansion | Onboard M.2 SSD slot and M.2 WLAN slot; additional PCIe slots available for expansion |
| I/O & Control | Hardware watchdog, GPIO support, PCIe slots |
| Power | Wide-range DC input: 8 V – 36 V |
| Thermals / Cooling | Designed for fanless operation (passive cooling) |
| Use Case | Embedded / industrial applications requiring low power, fanless design and multiple display outputs |
Skip to product information
Description
| Processor | Quad-Core Intel® Celeron® J4105 SoC — 2.50 GHz, 10 W TDP |
| Display | Dual DisplayPort (DP) 1.2a, LVDS and eDP 1.4 support |
| Storage & Expansion | Onboard M.2 SSD slot and M.2 WLAN slot; additional PCIe slots available for expansion |
| I/O & Control | Hardware watchdog, GPIO support, PCIe slots |
| Power | Wide-range DC input: 8 V – 36 V |
| Thermals / Cooling | Designed for fanless operation (passive cooling) |
| Use Case | Embedded / industrial applications requiring low power, fanless design and multiple display outputs |
There is currently no content in this section. Use the sidebar to add material to this section.

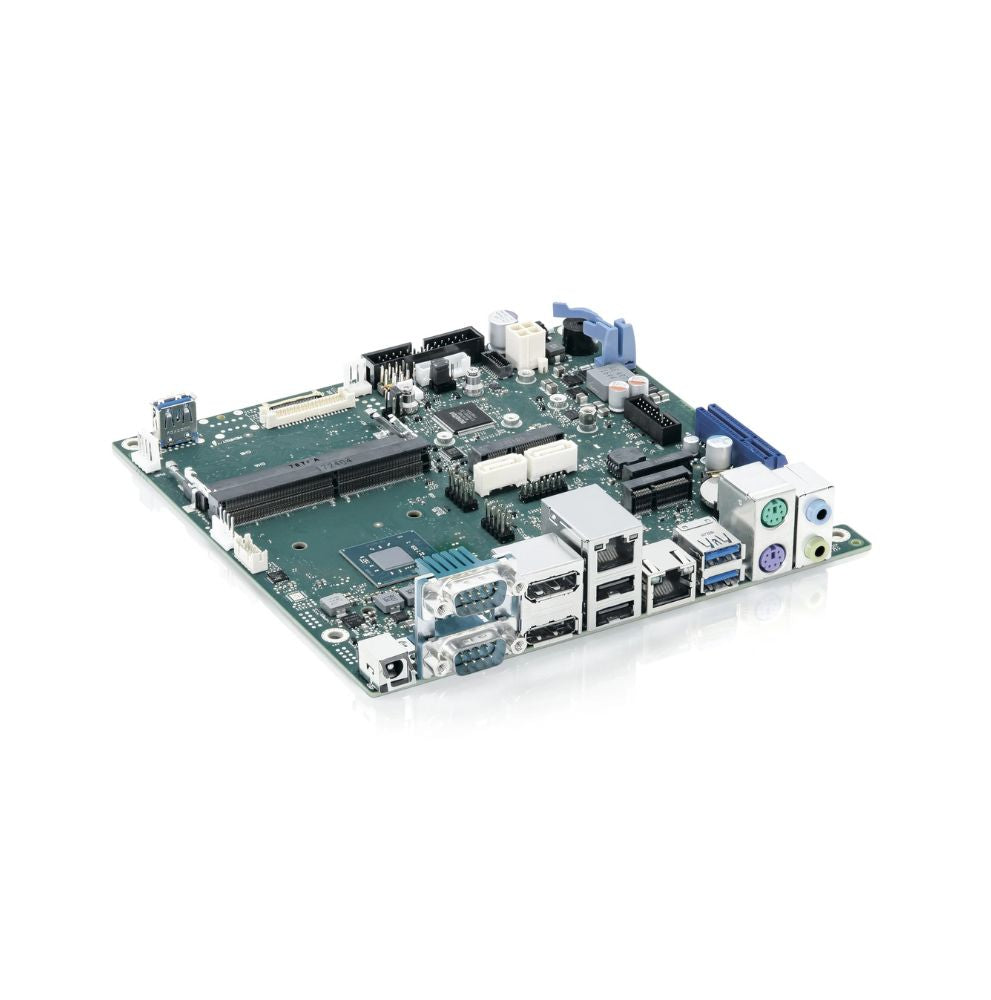

FTS D3543-S2-J4105 2xDP/2x GbE LAN/M.2/mITX+++
Regular price
28,300.00 RSD
