| Processor | |
| Processor manufacturer | AMD |
| Maximum number of SMP processors | 1 |
| Compatible processor series | AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9 |
| Processor socket | Socket AM4 |
| Memory | |
| Memory slots type | DIMM |
| Maximum internal memory | 128 GB |
| Number of memory slots | 4 |
| Supported memory clock speeds | 2133.2400.2666.2800.3000.3200.3466.3600.3866.4000.4133.4400.4600 MHz |
| Supported memory types | DDR4-SDRAM |
| Network | |
| Ethernet LAN | Y |
| Bluetooth | 5.0 Y |
| Wake-on-LAN ready | Y |
| LAN controller | Intel I225-V |
| Wi-Fi | N |
| Ethernet interface | 2.5 Gigabit Ethernet |
| Technical details | |
| Vendor | Asustek |
| Packaging content | |
| Cables included | SATA |
| Manual | Y |
| Drivers included | Y |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express slots version | 3.0,4.0 |
| BIOS | |
| BIOS memory size | 256000 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Graphics | |
| Parallel processing technology support | 2-Way CrossFireX |
| Features | |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD B550 |
| Cooling type | Active |
| PC health monitoring | CPU, Fan |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Component for | PC |
| Internal I/O | |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Y |
| USB 2.0 connectors | 2 |
| CPU fan connector | Y |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |

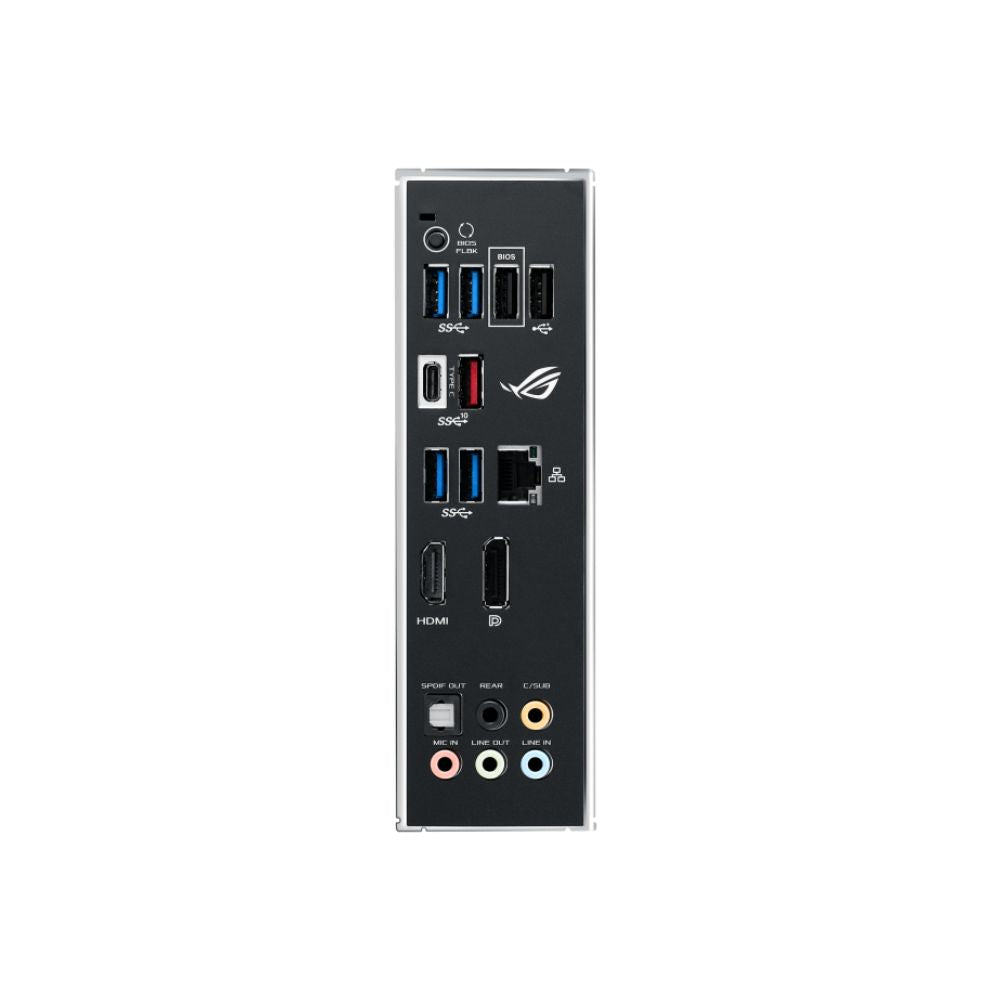

| Rear panel I/O ports | |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Y |
| S (B 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - B 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - B 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - B 2.0 ports quantity - PDIF out port) | 4 - 1 - 1 - 2 - Y |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| RAID levels | 0,1,10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2,SATA III |
| Number of HDDs supported | 6 |
Skip to product information
Description
| Processor | |
| Processor manufacturer | AMD |
| Maximum number of SMP processors | 1 |
| Compatible processor series | AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9 |
| Processor socket | Socket AM4 |
| Memory | |
| Memory slots type | DIMM |
| Maximum internal memory | 128 GB |
| Number of memory slots | 4 |
| Supported memory clock speeds | 2133.2400.2666.2800.3000.3200.3466.3600.3866.4000.4133.4400.4600 MHz |
| Supported memory types | DDR4-SDRAM |
| Network | |
| Ethernet LAN | Y |
| Bluetooth | 5.0 Y |
| Wake-on-LAN ready | Y |
| LAN controller | Intel I225-V |
| Wi-Fi | N |
| Ethernet interface | 2.5 Gigabit Ethernet |
| Technical details | |
| Vendor | Asustek |
| Packaging content | |
| Cables included | SATA |
| Manual | Y |
| Drivers included | Y |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express slots version | 3.0,4.0 |
| BIOS | |
| BIOS memory size | 256000 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Graphics | |
| Parallel processing technology support | 2-Way CrossFireX |
| Features | |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD B550 |
| Cooling type | Active |
| PC health monitoring | CPU, Fan |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Component for | PC |
| Internal I/O | |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Y |
| USB 2.0 connectors | 2 |
| CPU fan connector | Y |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Rear panel I/O ports | |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Y |
| S (B 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - B 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - B 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - B 2.0 ports quantity - PDIF out port) | 4 - 1 - 1 - 2 - Y |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| RAID levels | 0,1,10 |
| Supported storage drive types | HDD & SSD |
| Storage interfaces | M.2,SATA III |
| Number of HDDs supported | 6 |
There is currently no content in this section. Use the sidebar to add material to this section.

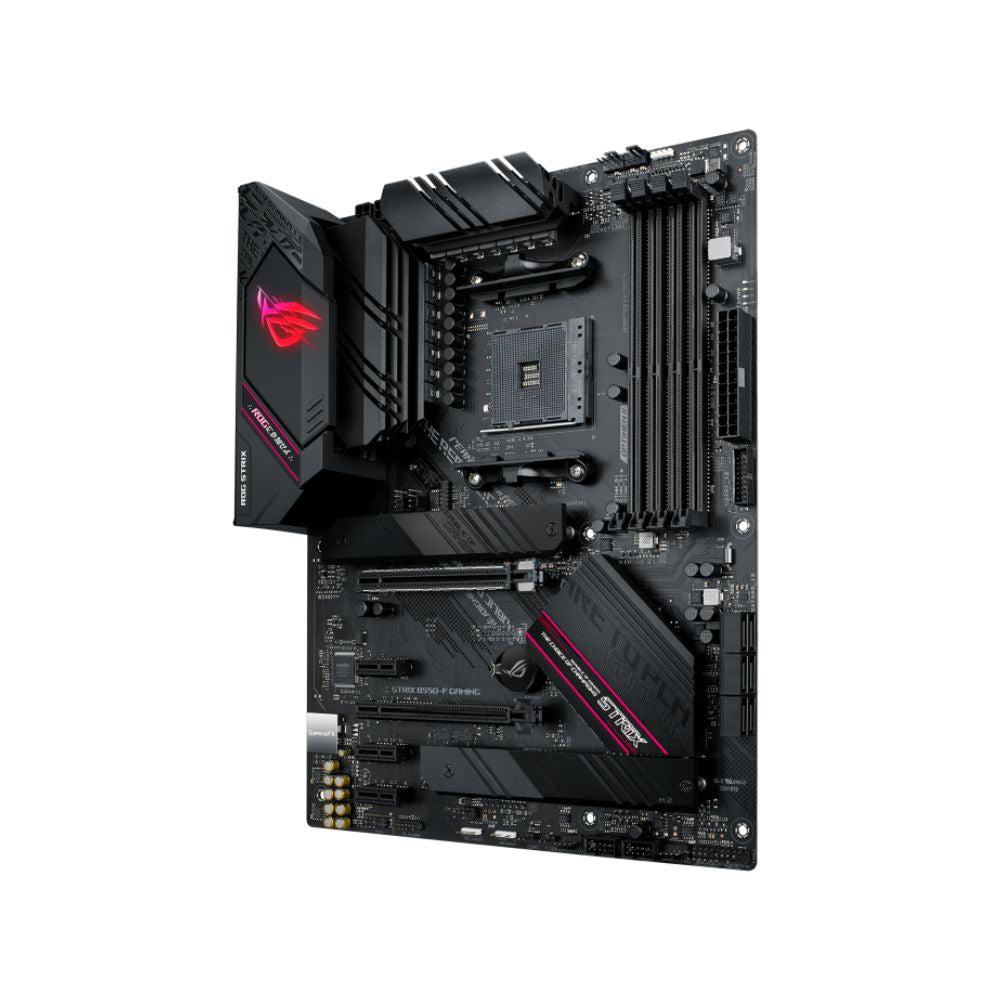

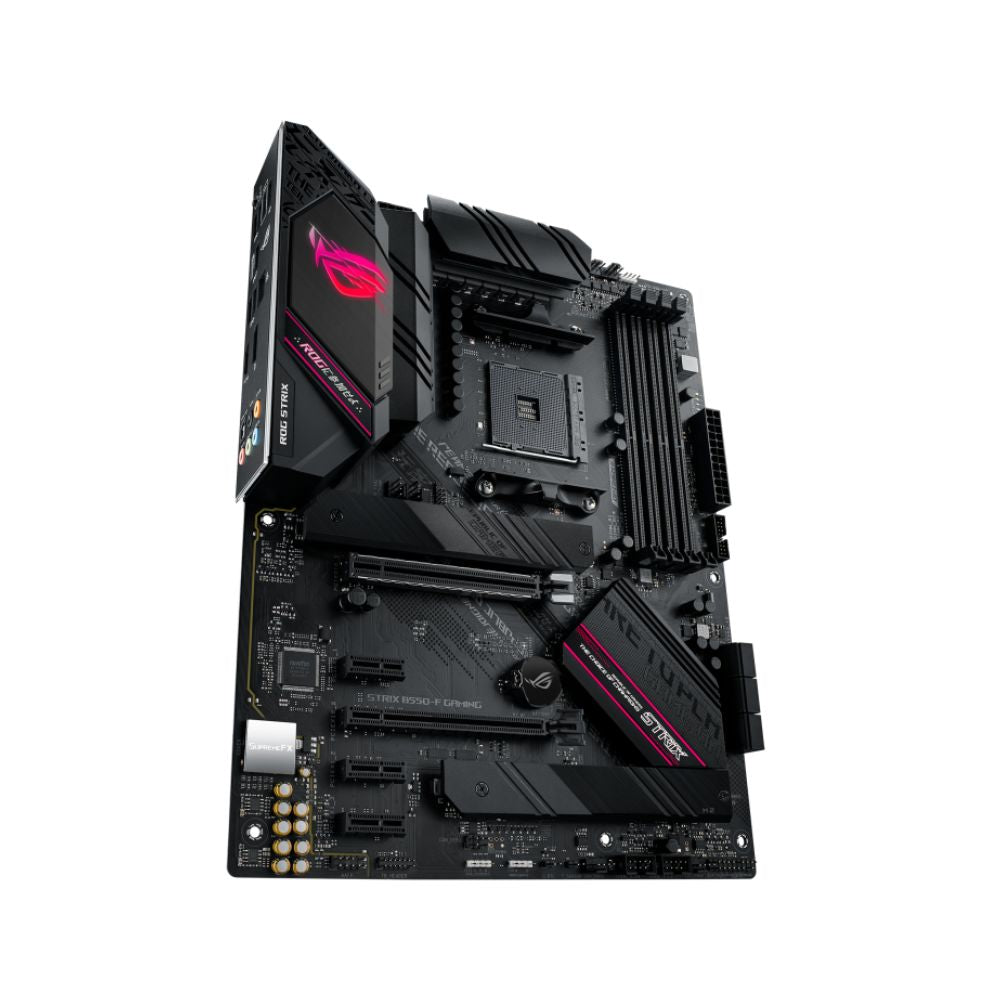

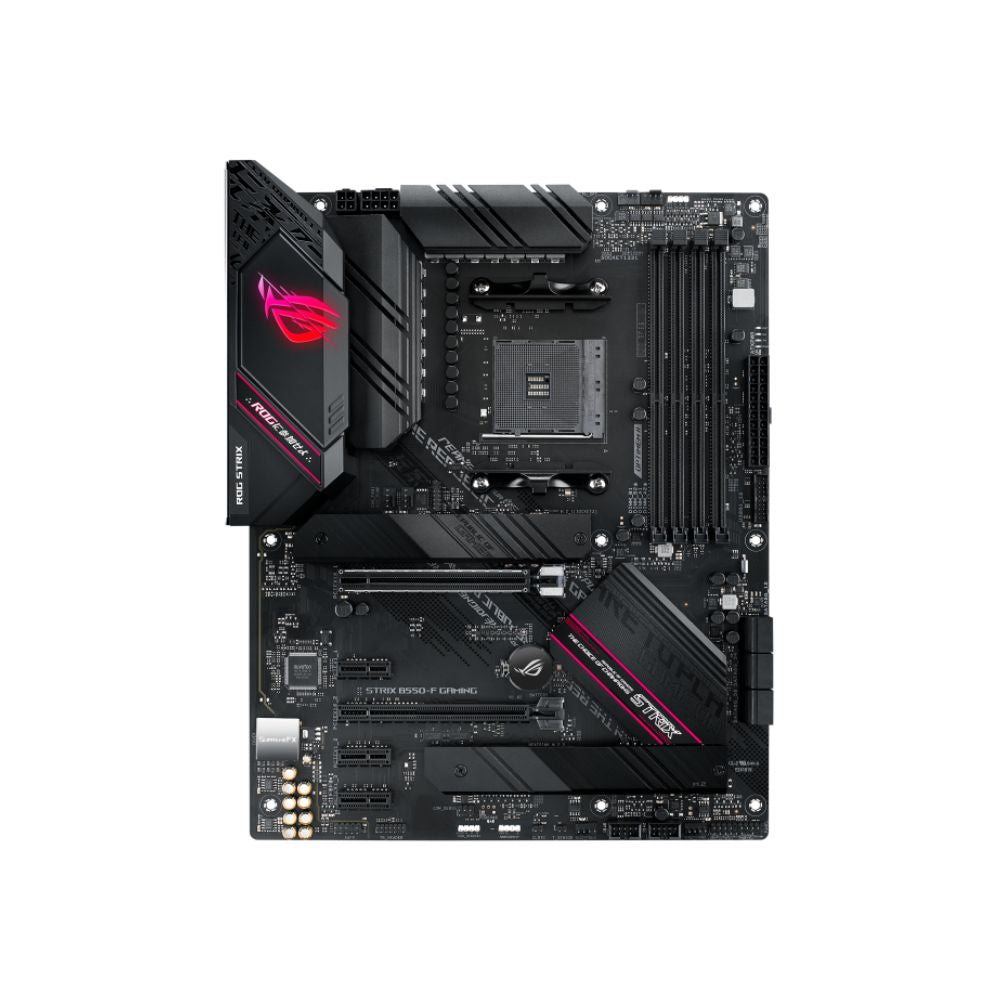

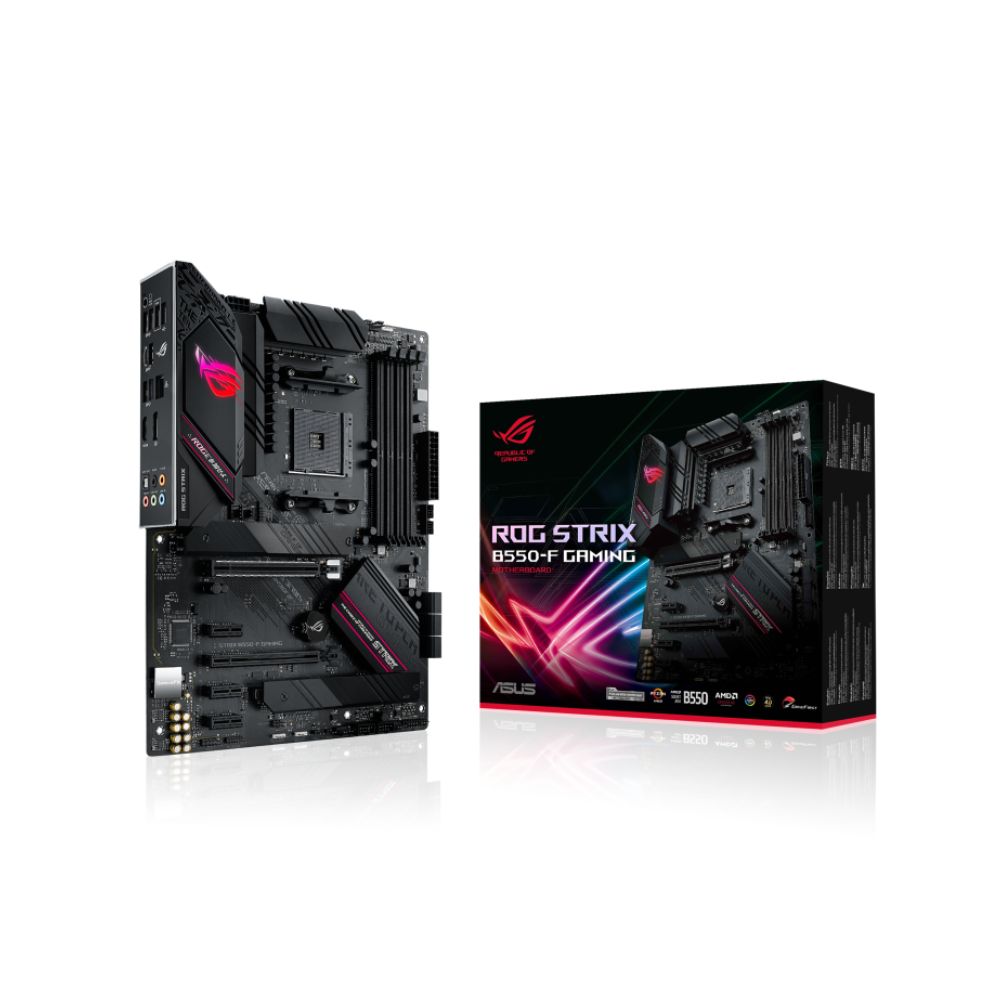

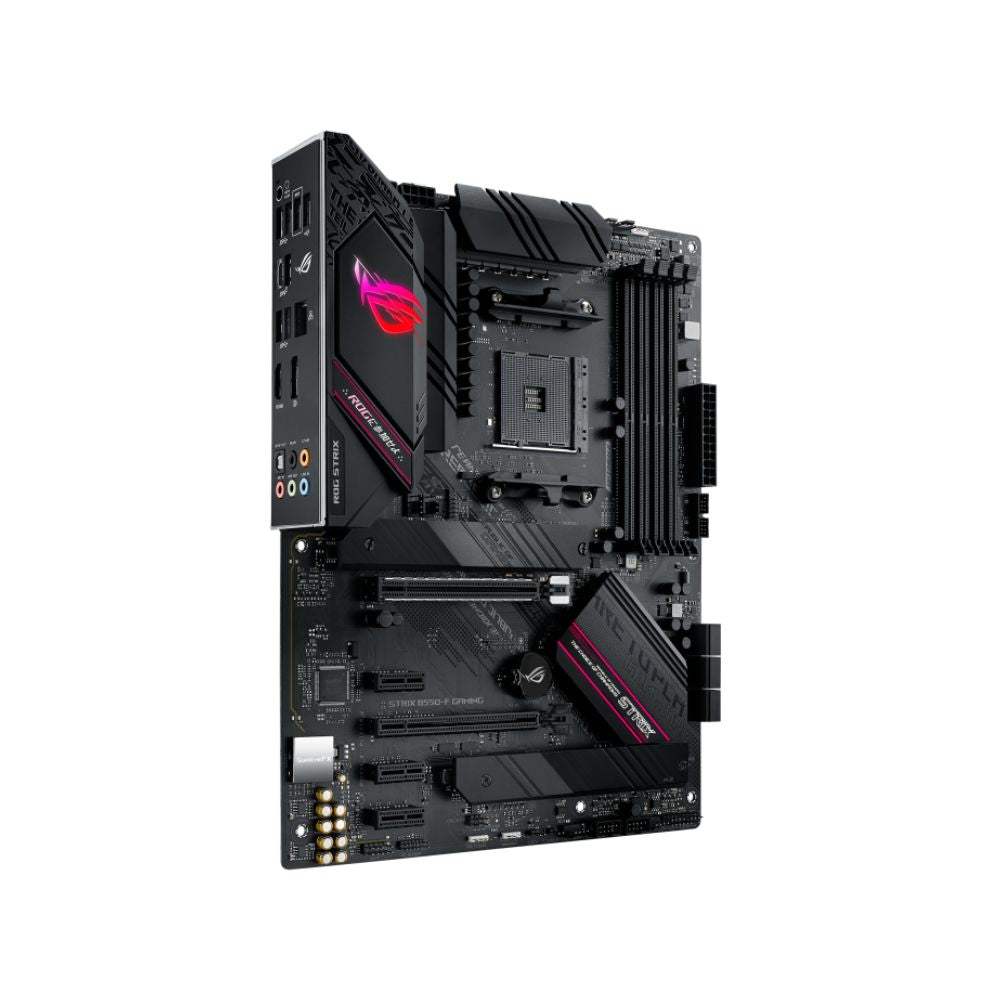

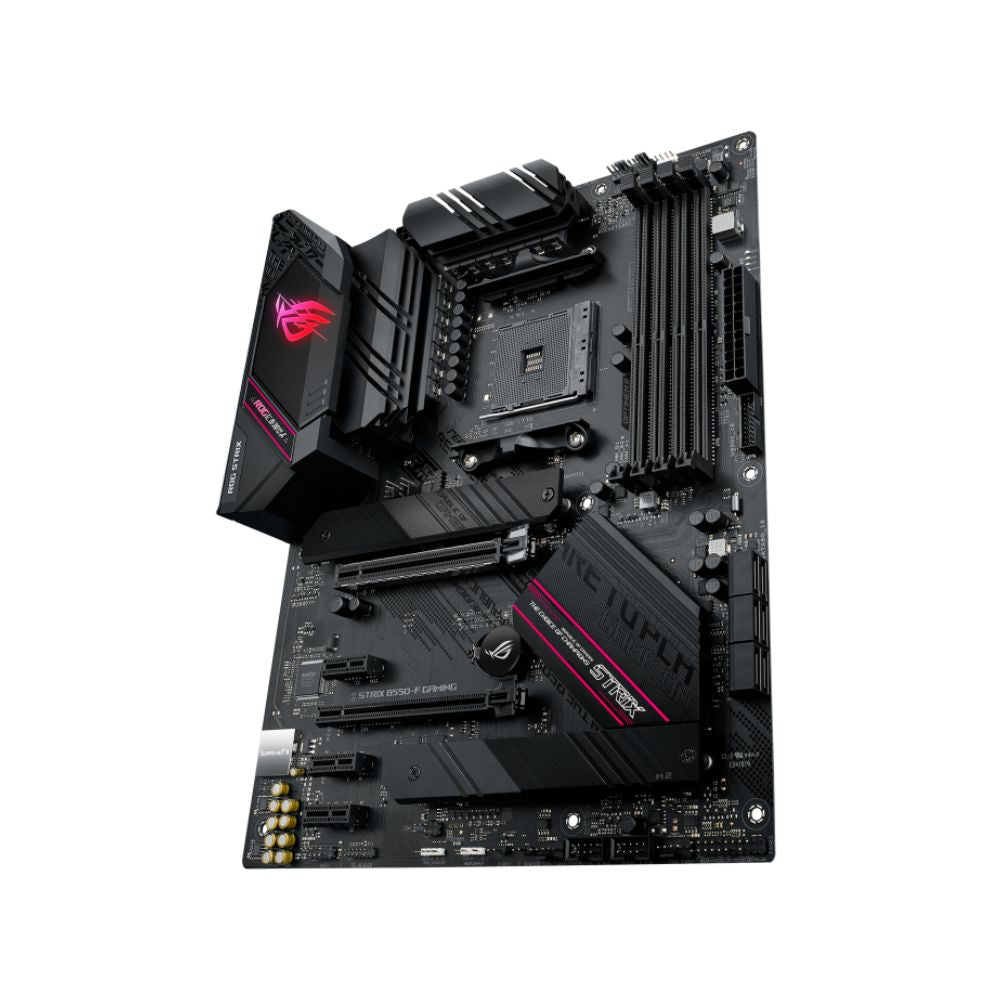

ASUS ROG STRIX B550-F GAMING AM4 B550/M.2/ATX PCI-Express 4.0 Support
Regular price
22,200.00 RSD
